GE IS215UCVEM09A | VMIC VMIVME-7698 VME Embedded Control Processor Board for Turbine Control

Description

Key Technical Specifications

Product Introduction

GE IS215UCVEM09A VMIVME-017614-132 Overview

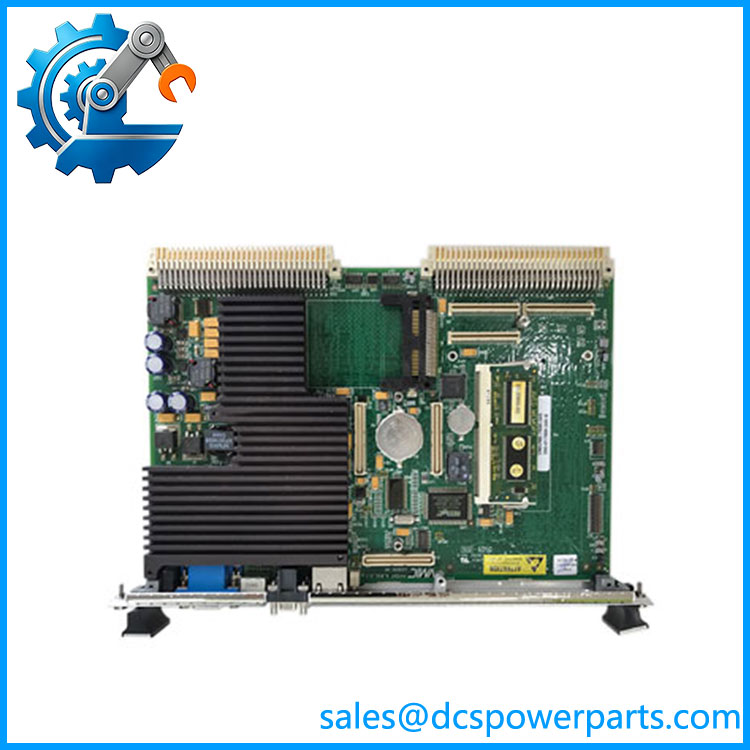

The GE IS215UCVEM09A VMIVME-017614-132 VMIVME-7698 is a VME embedded controller module used in GE Mark VI Speedtronic turbine control systems. It functions as a processor board responsible for executing turbine control applications, handling communication tasks, and exchanging data with VME-based I/O and communication modules.

The GE IS215UCVEM09A is designed for installed turbine control platforms where long-term hardware support is often required. Replacement work requires checking application software, controller configuration, communication settings, and the installed Mark VI hardware revision before returning the unit to service.

IS215UCVEM09A

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A gas turbine control cabinet reports a controller fault during operation. I/O modules appear powered, field signals remain stable, but the controller stops executing the application correctly.

This situation is common in aging Speedtronic installations. The processor board is the execution point for turbine logic, sequencing, and communication services. A controller replacement is not only a hardware swap; the application environment must match.

The IS215UCVEM09A sits at the center of the Mark VI control architecture. Configuration discipline matters.

Typical Applications

• Gas Turbine Power Generation – Main controller processing for turbine startup sequences, fuel control, and protection logic.
• Steam Turbine Systems – Control execution for speed regulation, valve positioning, and auxiliary equipment coordination.
• Mechanical Drive Applications – Turbine package control for compressors and industrial rotating equipment.
• Power Plant Service Systems – Legacy Mark VI control cabinet maintenance and hardware replacement projects.

Technical Pitfalls to Avoid

1. Verify Software and Configuration Compatibility

   The controller hardware may power up correctly while the turbine application fails to load because software images, application files, or configuration databases do not match.

2. Check VME Backplane Condition

   Intermittent controller faults are not always caused by the CPU board. Inspect VME connectors, rack power quality, and grounding before replacing the module.

3. Confirm Communication Settings

   Ethernet, serial ports, and internal communication interfaces must match the original installation. Incorrect network parameters can prevent normal controller communication.

Related Products

• GE IS215UCVEH2AE
  Closely related UCVE controller variant used in Mark VI turbine control systems. It shares the same VME controller family but may differ in hardware configuration and application usage.
• GE VMIVME-7614-132
  VME embedded controller board used in GE industrial control applications. Similar processor board architecture but different hardware generation.
• GE IS215VCMIH2CA
  VME communication interface module used for Mark VI system communication between controllers and I/O networks.
• GE IS215VCMIH2BB
  Related VCMI communication board variant used in Mark VI control cabinets.
• GE IS215UCVFH2BB
  Another VMIC-based controller family module used in GE turbine control platforms.
• GE IS215UCVGM06A
  Controller-related VME hardware used in GE Speedtronic systems with different processing and interface functions.
• GE IS200VCMIH2CAA
  Earlier Mark VI communication interface board used for VME-based turbine control architectures.
• GE IS215UCVEM09B
  Later revision of the UCVE controller family. Verify firmware and application compatibility before substitution.
