Description
GE IS200SDIIH1ADB MRP683026 | Isolated Discrete Input Terminal Board | Mark VIe Turbine Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200SDIIH1ADB |
| GE Part Number | MRP683026 |
| Manufacturer | General Electric |
| Product Family | Mark VIe / Mark VIeS |
| Functional Acronym | SDII |
| Product Type | Isolated Discrete Input Terminal Board |
| Primary Function | Contact/discrete input isolation and signal interface |
| Associated I/O Pack | IS220PDIIH1B / PDII |
| Installation | DIN rail or panel-mounted control cabinet architecture |
| PCB Construction | Conformal-coated board |
| Board Revision | A-rated base functional revision with DB assembly suffix |
| Field Interface | Screw-terminal field connections |
| Application | GE turbine control and distributed I/O |
GE-oriented technical references identify the IS200SDIIH1A family as an isolated discrete-input board, with SDII as the functional acronym and the board intended for the Mark VIe architecture. Other documentation describes it as a contact-input isolation terminal board with isolated voltage-detection circuits.
Product Introduction
The GE IS200SDIIH1ADB MRP683026 is a Mark VIe isolated discrete-input interface board used to connect field contact signals with the distributed I/O architecture of GE turbine control systems. The SDII board belongs to the isolated discrete-input hardware family and is associated with the PDII I/O pack, providing the field-side interface required for discrete signal acquisition.
For maintenance teams, the IS200SDIIH1ADB MRP683026 should be treated as a specific terminal-board assembly rather than a generic digital input card. The distinction matters because the board, I/O pack, terminal wiring, and control-system configuration operate as an integrated hardware path. A replacement should therefore be matched by the complete part number and physical configuration rather than by the general description “Mark VIe digital input.”

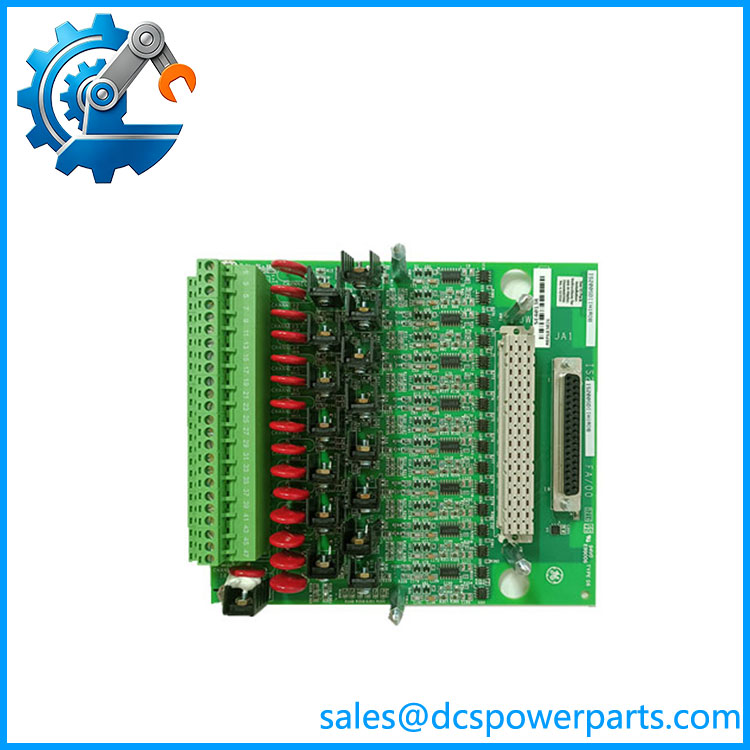

IS200SDIIH1ADB MRP683026
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a Mark VIe discrete signal disappears, the fault is not necessarily inside the I/O processor. A defective field contact, blown fuse, damaged terminal connection, isolation circuit problem, cable fault, or failed IS220PDIIH1B I/O pack can produce similar symptoms at the control-system level.
The IS200SDIIH1ADB MRP683026 is relevant when troubleshooting or replacing the isolated contact-input interface within a Mark VIe turbine control cabinet. It is particularly important where field circuits need electrical separation from the low-voltage control electronics.
Typical Applications
- Gas turbine control — Valve-position contacts, permissives, limit switches, auxiliary equipment status, and interlock signals.
- Steam turbine control — Discrete equipment-status and permissive signals.
- Combined-cycle power plants — Distributed discrete field inputs within Mark VIe control cabinets.
- Generator and auxiliary systems — Contact monitoring for breakers, switches, pumps, fans, and protection-related status signals.
Technical Pitfalls to Avoid
1. Do not confuse the SDII board with the PDII I/O pack.
The IS200SDIIH1ADB is the field-interface/terminal-board side of the architecture, while IS220PDIIH1B is the associated isolated discrete-input I/O pack. They are different hardware items and should not be quoted interchangeably.
2. Verify the complete suffix before purchasing.
The difference between IS200SDIIH1A and should not be dismissed as cosmetic. The additional suffix identifies a particular assembly/revision configuration. For a turbine outage spare, match the complete label, not just the SDII base designation.
3. Be skeptical of generic channel and voltage specifications.
Several commercial listings assign 16 inputs, 24 VDC operation, 500 V isolation, or other detailed ratings to this exact part without providing an authoritative GE source. Those values may describe a related configuration rather than this exact assembly.
4. Inspect the field terminals before condemning the board.
A loose terminal, oxidized connection, damaged fuse, or incorrect field jumper can imitate an input-board failure. Record the original wiring and verify each affected point before removing the existing assembly.
5. Confirm the PDII configuration.
The SDII board is associated with the isolated discrete-input architecture. If the replacement I/O pack is a PDIA, PDIO, or another IS220 family member, the terminal-board compatibility must be checked rather than assumed.
Related Products
- GE IS220PDIIH1B — Isolated discrete-input I/O pack associated with the SDII terminal-board architecture.
- GE IS200SDIIH1A — Base SDII isolated discrete-input board designation; useful for identifying the underlying board family.
- GE IS220PDIAH1B — Mark VIe discrete-input I/O pack with a different input configuration; not automatically interchangeable with PDII.
- GE IS220PDIOH1B — Mark VIe discrete I/O pack for applications requiring a different discrete I/O arrangement.
- GE IS200TBCIH1B — Mark VIe terminal-board hardware used with distributed I/O applications; verify exact I/O function before substitution.
- GE IS200TBCIH2A — Related Mark VIe terminal-board assembly with a different configuration.
- GE IS220PSCAH1B — Mark VIe serial communication module for applications requiring serial interfaces rather than discrete field inputs.
- GE IS220PAICH1B — Mark VIe analog input hardware; applicable to analog measurement rather than isolated discrete contacts.
- GE IS220PDOAH1B — Mark VIe discrete-output hardware for field actuation rather than input monitoring.
Procurement note: For , the most useful purchasing information is the complete board label, assembly suffix, hardware revision, associated I/O pack, and a clear photograph of the terminal side. Because commercial databases contain contradictory descriptions for this part, I would not approve a substitute based only on “Mark VIe digital input board.”
