Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / Emerson Automation |
| Model | IC698CMX016 |
| Equivalent Part Numbers | VMIVME-5567-000 / 350-005567-000 |
| Product Type | Control Memory Xchange Module |
| Product Platform | PACSystem RX7i |
| Memory Capacity | 16MB SDRAM with parity |
| Technology | Reflective Memory |
| Fiber Interface | Multimode fiber optic LC connectors |
| Communication Speed | 2.12 Gbaud |
| Network Nodes | Up to 256 nodes |
| Transfer Rate | 43MB/s to 174MB/s depending on packet size |
| Packet Size | Dynamic 4 to 64 bytes |
| Fiber Distance | Up to approximately 300m multimode fiber |
| VME Interface | Single-slot VME64x |
| Bus Access | A24/A32, D16/D32/D64 |
| Power Requirement | +5VDC, approximately 1.8A |
| Operating Temperature | -20°C to +85°C |
| Configuration Software | Proficy Machine Edition Logic Developer PLC |
| Application | Deterministic PLC-to-device data synchronization |
Product Introduction
GE IC698CMX016 VMIVME-5567-000 Overview
The GE IC698CMX016 VMIVME-5567-000 350-005567-000 is a Control Memory Xchange module designed for GE Fanuc PACSystem RX7i platforms. It uses reflective memory technology to distribute shared data between PLCs, VME devices, and compatible computing nodes through a high-speed fiber optic network.
The GE IC698CMX016 is used in systems where deterministic data synchronization is required, such as coordinated motion, simulation platforms, turbine control, and large-scale automation systems. It operates independently of CPU scan processing for network data exchange, but replacement requires verification of firmware revision, fiber topology, and reflective memory node configuration.

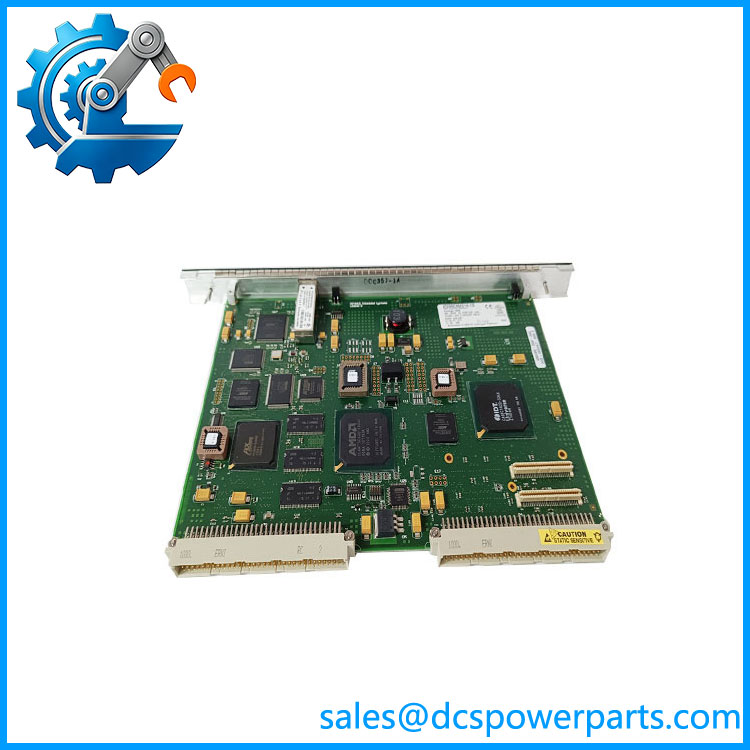

IC698CMX016 VMIVME-5567-000 350-005567-000
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production system has multiple controllers that must exchange data with precise timing. Suddenly, one section of the plant begins reacting slower than expected. PLC logic appears normal. The real issue is the communication layer.
Reflective memory networks are often installed in applications where timing matters. A failing fiber interface, incorrect node configuration, or damaged optical link can create intermittent synchronization problems that are difficult to diagnose.
The IC698CMX016 is not a standard communication card. It is part of the real-time data exchange architecture.
Typical Applications
- Power Generation – Turbine control systems, simulator platforms, and coordinated plant control networks.
- Manufacturing Automation – High-speed machine synchronization, robotic systems, and distributed motion control.
- Aerospace Test Equipment – Real-time simulation systems and measurement platforms requiring deterministic data transfer.
- Process Industries – Distributed PLC systems requiring fast data exchange between control stations.
Technical Pitfalls to Avoid
- Verify Reflective Memory Network Compatibility
The IC698CMX016 must communicate with compatible reflective memory nodes. Confirm that existing VMIC 5565/5567 family devices and network topology are supported before replacement.
- Check Fiber Optic Connections Carefully
Fiber contamination, damaged LC connectors, and incorrect transmit/receive routing are common causes of communication faults. Optical power testing should be performed before replacing hardware.
- Confirm Configuration Parameters
Node addresses, memory offsets, and network settings must match the existing system design. A replacement module can appear healthy while sharing incorrect data locations.
Related Products
- GE IC698RMX016
Redundancy Memory Xchange Module for RX7i systems. Used in redundant control architectures requiring synchronized memory exchange between controllers. - GE VMIVME-5565 Series
Earlier VMIC reflective memory VME modules. Commonly found in legacy systems requiring compatibility with existing fiber networks. - GE VMIVME-5567-100
Related VME reflective memory module variant used in systems requiring fiber-based deterministic communication. - GE IC698CPE010
RX7i CPU module used as the primary controller in PACSystem installations. The operates alongside the RX7i CPU platform. - GE IC698CPE020
Higher-performance RX7i CPU module used in larger control applications requiring increased processing capacity. - GE IC698PSA100
RX7i power supply module providing rack power for IC698 series hardware. - GE IC698CHS009
RX7i nine-slot rack chassis used for mounting CPU, communication, and I/O modules. - GE VMIC 5567 Reflective Memory Family
VME-based reflective memory products used for high-speed deterministic data distribution.
