Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Current Platform | PACSystems RX3i |
| Model Number | IC695CPE330 |
| Product Type | CPU Module / Programmable Automation Controller |
| Processor | 1GHz dual-core microprocessor |
| User Memory | 64MB |
| Program Blocks | Up to 512 blocks |
| Discrete I/O Capacity | Up to 32K bits |
| Analog I/O Capacity | Up to 32K words input/output |
| Ethernet Ports | 3 × Ethernet ports (2 switched ports) |
| Ethernet Speed | 10/100/1000 Mbps |
| Communication Protocols | SRTP, Modbus TCP/IP, EGD, PROFINET, OPC UA, DNP3, IEC protocols |
| Serial Communication | ASCII, Modbus RTU |
| USB Interface | 1 × USB 2.0 Type-A |
| Storage Interface | CFast / removable storage support |
| Programming Software | Proficy Machine Edition |
| Backplane Mounting | RX3i Universal Backplane |
| Operating Temperature | 0°C to 60°C |
| Redundancy Support | Hot Standby redundancy configurations supported |
Product Introduction

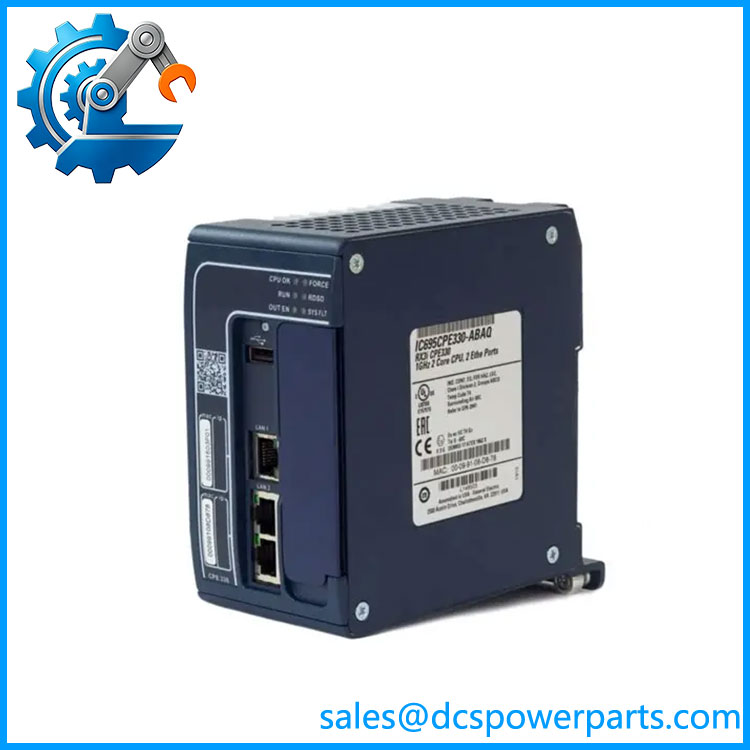

GE IC695CPE330 Overview
The GE IC695CPE330 is a PACSystems RX3i CPU module designed for high-performance PLC applications. It uses a 1GHz dual-core processor with 64MB user memory and integrated Ethernet communication to execute control programs, manage distributed I/O, and exchange data with supervisory systems.
The GE IC695CPE330 is commonly installed in manufacturing, process, and infrastructure automation systems where RX3i processing capacity and network communication are required. It supports RX3i I/O modules, intelligent option modules, and advanced Ethernet-based architectures.
IC695CPE330
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production line begins showing slow response times after years of expansion. The original PLC logic still runs, but additional communication loads, larger data tables, and more remote I/O devices push the controller beyond its comfortable operating range.
The IC695CPE330 is often selected for RX3i systems that need more processing capacity than older CPU models. However, upgrading the CPU alone does not solve every performance issue. Network design, program structure, and firmware compatibility still need review.
Typical Applications
- Automotive Manufacturing – High-speed assembly lines, robotic cell coordination, and distributed I/O control.
- Power Generation – Auxiliary system automation, equipment monitoring, and plant communication networks.
- Water and Wastewater Plants – Pump station control, remote I/O management, and SCADA data exchange.
- Process Industries – Batch control, sequencing logic, and large-scale equipment integration.
Technical Pitfalls to Avoid
- Verify Firmware and Proficy Machine Edition Compatibility
The IC695CPE330 has multiple firmware revisions. Confirm the PME version, controller firmware, and project conversion requirements before loading an existing application.
- Check Power Supply and Rack Compatibility
Some RX3i installations require specific power supply revisions when using CPE330 CPUs. Confirm the chassis hardware and power supply model before replacement.
- Review Communication Architecture
Adding a faster CPU does not automatically improve a poorly designed network. Check Ethernet traffic, EGD exchanges, PROFINET configuration, and remote I/O update rates.
Related Products
- GE IC695CPE310
RX3i CPU with lower memory capacity and Ethernet capability. Suitable for smaller control applications where the processing demand is lower. - GE IC695CPE305
RX3i CPU model with different memory and communication specifications. Often used in standard automation applications. - GE IC695CPK330
RX3i CPE330 variant supplied with Energy Pack support. Used where retaining controller memory during power interruption is required. - GE IC695ACC402
RX3i Energy Pack accessory used with compatible CPUs for saving user memory during power loss conditions. - GE IC695PNC001
RX3i PROFINET Controller module. Used when additional PROFINET network capability or distributed I/O expansion is required. - GE IC695CHS007
RX3i seven-slot chassis. Provides the mounting platform for CPU, I/O, and communication modules. - GE IC695PSA040
RX3i AC power supply module. Used in rack systems requiring AC input power. - GE IC695PSD040
RX3i 24VDC power supply module for DC-powered controller cabinets. - GE IC693/IC694 Series I/O Modules
Legacy GE Series 90-30 compatible I/O modules supported in many RX3i migration projects, depending on hardware revision and configuration.
