GE Fanuc IC694MDL645 | PACSystems RX3i Discrete Input I/O Module, Factory Tested

GE Fanuc IC694MDL645 | PACSystems RX3i Discrete Input I/O Module, Factory Tested

  • Model: IC694MDL645
  • Brand: GE Fanuc
  • Series: PACSystems RX3i / IC694 I/O Series
  • Core Function: Receives 24VDC field signals from switches, sensors, and discrete devices into the PLC input image table.
  • Product Type: Discrete Input Module / Digital I/O Module
  • Key Specs:
    • 16 digital input points
    • 24VDC positive or negative logic operation
    • 0–30VDC input range with optical isolation
Add To Quote
Category: SKU: GE IC694MDL645

Description

Key Technical Specifications

Parameter Value
Manufacturer GE Fanuc
Model Number IC694MDL645
Product Type Discrete Input Module
Product Series PACSystems RX3i
Input Channels 16 points
Input Voltage 24VDC nominal
Input Voltage Range 0 to +30VDC
Logic Type Positive / Negative Logic
Input Current 7mA typical at rated voltage
Input Grouping 1 group with single common
Isolation Optical isolation, field to backplane
Isolation Rating 250VAC continuous; 1500VAC for 1 minute
ON-State Voltage 11.5 to 30VDC
OFF-State Voltage 0 to +5VDC
ON Response Time 7ms typical
OFF Response Time 7ms typical
Backplane Power Consumption 80mA from 5V bus
24V Supply Consumption 125mA
Installation RX3i Universal Backplane I/O slot



Product Introduction

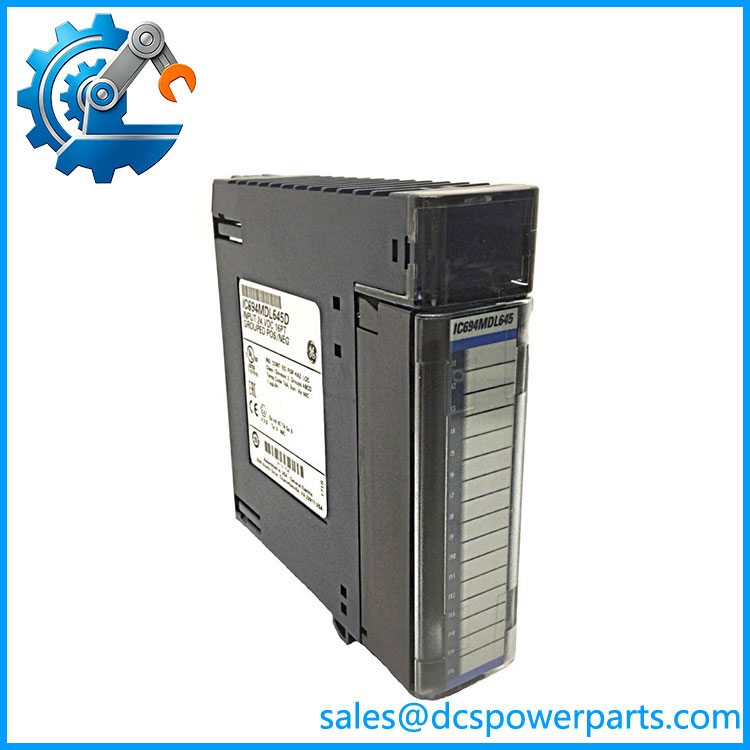

GE Fanuc IC694MDL645 Overview

The GE Fanuc IC694MDL645 is a 24VDC discrete input module designed for PACSystems RX3i PLC platforms. It provides 16 digital input channels for connecting field devices such as proximity switches, pushbuttons, limit switches, and auxiliary contacts to the PLC control system.

The main advantage of the GE Fanuc IC694MDL645 is its flexible wiring capability. The module supports both positive and negative logic configurations, allowing engineers to integrate different field device arrangements without changing the PLC hardware platform. It remains a practical spare part for maintaining installed RX3i automation systems.

IC694MDL645

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A failed digital input module can create confusing plant symptoms. A motor starter may appear healthy, field sensors may show correct voltage, yet the PLC does not register the signal. In production environments, these failures often appear as intermittent equipment trips, missing permissive signals, or false sequence interruptions. Replacing the input module is only part of the solution; the field wiring, power supply quality, and PLC configuration must also be checked.



Typical Applications

  • Power Generation – Boiler auxiliary systems, pump status monitoring, breaker feedback signals, and equipment permissive inputs.
  • Water Treatment – Pump running feedback, valve limit switches, level switch monitoring, and alarm contacts.
  • Manufacturing Automation – Conveyor sensors, machine safety feedback, actuator position confirmation, and operator pushbuttons.
  • Chemical Processing – Process skid monitoring, motor status inputs, and discrete field interlocks.



Technical Pitfalls to Avoid

  1. Confirm Input Logic Before Installation

    The IC694MDL645 supports positive and negative logic wiring. Incorrect field wiring assumptions can result in reversed signal interpretation or failed commissioning.

  2. Check Input Voltage Quality

    A 24VDC signal measured with a multimeter does not always confirm a healthy input circuit. Voltage drops, noisy power supplies, or damaged field devices can cause unstable input states.

  3. Verify Terminal Block Condition

    Many I/O issues originate from loose terminals or damaged field connectors rather than the module itself. Inspect terminal connections before replacing hardware.



Related Products

  • IC694MDL644
    Similar RX3i discrete input module variant. Used for different input voltage requirements and field signal applications.
  • IC694MDL645A
    Revision variant of the IC694MDL645 family. Confirm hardware revision compatibility with existing system documentation before replacement.
  • IC694MDL655
    RX3i discrete input module designed for different input characteristics. Used when field device requirements differ from the standard 24VDC input design.
  • IC694MDL754
    RX3i discrete output module. Provides PLC-controlled output signals rather than receiving field inputs.
  • IC694PWR321
    RX3i power supply module. Supports rack power requirements for RX3i I/O configurations.
  • IC694CHS392
    RX3i rack chassis assembly. Provides the physical mounting platform for IC694 series modules.
  • IC695CPU310
    PACSystems RX3i CPU module. Used as the controller platform that processes input data.
  • IC694MDL742
    RX3i discrete output module for applications requiring digital actuator control.
