Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Assembly Number | EVPBDP0001 |
| Board Identification | EVPBDP032 |
| Product Family | GE Excitation System |
| Product Type | Protection / Control Circuit Board |
| Primary Application | Generator excitation system |
| Typical System Association | EX2100 |
| Hardware Format | Embedded PCB / electronic assembly |
| Functional Category | Excitation protection and interface |
| Lifecycle | Legacy / obsolete |
| Replacement Requirement | Verify complete assembly and revision |
Identification caution: Publicly available references are inconsistent about this part. One source identifies EVPBDP0001 / EVPBDP032 as an excitation-system protection module, while other listings incorrectly describe it as a generic PLC, Mark VIe controller, digital relay output module, or unrelated embedded board.
Because of that conflict, I would not publish unsupported voltage, current, I/O-channel, communication-protocol, or dimensional specifications for EVPBDP0001/EVPBDP032. Those numbers appearing in secondary listings are not sufficiently reliable for engineering use.
Product Introduction

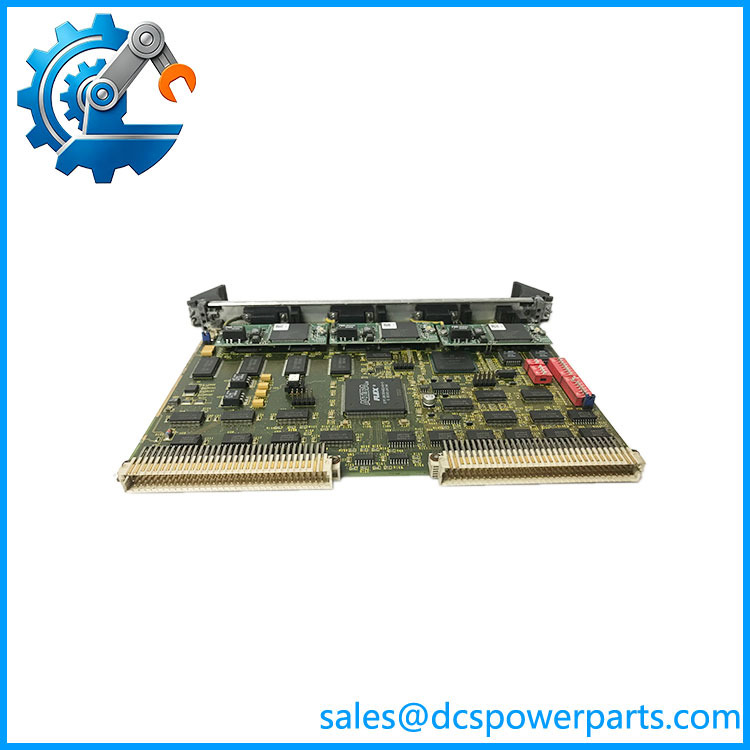

GE EVPBDP0001 EVPBDP032
The GE EVPBDP0001 / EVPBDP032 is a legacy GE excitation-system electronic assembly associated with generator excitation and protection functions. Available references place it within the GE excitation hardware family and specifically associate the part with EX2100-related equipment.
This is not a conventional PLC I/O card. Its value is tied to the original excitation-system architecture, board revision, and mating hardware. For a replacement, the complete board identification and installed EX2100 configuration should be matched before installation.
EVPBDP0001
Application Scenarios & Field Pitfalls
Engineering Pain Point
When an excitation system reports a protection or field-control fault, replacing the suspected PCB immediately can waste considerable commissioning time. The fault may originate in the protection circuit, its associated wiring, power supply, or another board in the excitation chain. With EVPBDP0001 / EVPBDP032, trace the actual protection path first.
Typical Applications
- Power Generation — Generator excitation and protection systems.
- Steam Turbine Generators — Excitation-system protection and control hardware.
- Gas Turbine Generators — Generator field-control and associated protection circuitry.
- Industrial Synchronous Generators — Legacy GE excitation installations requiring replacement PCB assemblies.
Technical Pitfalls to Avoid
- Do not use generic PLC specifications for this part.
Some listings label as a programmable controller or Mark VIe module. That classification is not adequately supported by the available evidence. - Verify the complete marking.
Record both and EVPBDP032, along with any artwork number, revision, serial number, or PCB revision visible on the board. - Check the excitation-system architecture.
An excitation PCB cannot be selected solely by physical appearance. Confirm the exact GE excitation platform and associated control/protection boards. - Do not assume 24 VDC or other published voltage values are correct.
Several secondary listings provide electrical specifications without showing an authoritative source. Those values should not be used for commissioning. - Inspect associated wiring and terminals.
A protection fault can originate outside the PCB. Check field wiring, terminal connections, auxiliary contacts, and upstream/downstream protection circuitry. - Preserve configuration information.
Before removing a legacy excitation board, document jumpers, switches, connectors, and wire positions. Old systems often have site-specific modifications. - Avoid blind substitution.
A physically similar GE excitation board can have a different circuit function or revision. Confirm the OEM drawing and board-level identification. - Consider the system age.
This is legacy excitation hardware. Component availability and technical documentation can be limited, making a verified spare valuable for planned maintenance. - Check for board-level damage carefully.
Look for burned components, cracked solder joints, overheated connectors, corrosion, and damaged terminal interfaces. A visual inspection often reveals whether further electrical testing is justified. - Do not rely on the model name alone.
The combination should be treated as the identification pair. Confirm both markings against the existing system documentation before procurement.
Related Products
- GE EVMECNTM13 — EXTB-related excitation terminal board associated with GE EX2100 systems. It performs a different interface/termination role and should not be treated as a substitute for /EVPBDP032.
- GE IC752SPL013-BA — EX2100-related control-panel hardware. It belongs to the same broad excitation-system environment but performs a different system-level function.
- GE EX2100 Excitation Control System — The principal system family associated with the available EVPBDP references. System-level compatibility should be established before selecting replacement boards.
- GE EXTB Series — Exciter terminal-board family used with installations. These boards provide interface/termination functions rather than serving as generic protection controllers.
- GE EDEX Hardware — Associated excitation/de-excitation equipment found in architectures. It performs a different function from the EVPBDP protection/interface assembly.
- GE DS200 Series Excitation Boards — Older GE excitation/control PCB family. These may appear in legacy generator installations, but DS200 hardware is not automatically compatible with EVPBDP hardware.
- GE IS200 Series Excitation Boards — Another GE turbine/excitation-era PCB family. Functional and mechanical similarity should not be interpreted as interchangeability.
- GE Mark VI Excitation Hardware — Related GE power-generation control technology frequently encountered alongside generator control systems. It is architecturally different from individual protection boards.
- GE Mark VIe Hardware — Newer GE control-system generation. It may coexist with an excitation system in a modernized plant, but Mark VIe modules should not be assumed to replace legacy boards directly.
