Description

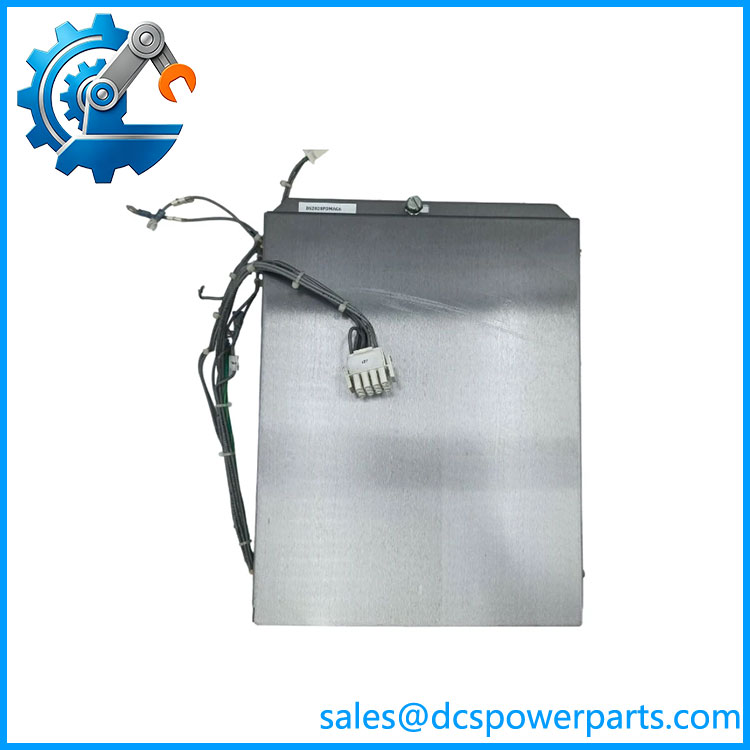

GE DS2020PDMAG6 | Power Distribution Module | Mark V Speedtronic Turbine Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DS2020PDMAG6 |
| Manufacturer | General Electric |
| Series | Mark V Speedtronic / DS200 |
| Functional Acronym | PDMA |
| Product Type | Power Distribution Module |
| Group | G6 |
| PCB Coating | Normal coating |
| Application | Turbine control power distribution |
| System Architecture | GE Speedtronic |
| Typical Power Sources | AC and DC plant/control power, depending on cabinet configuration |
| Lifecycle | Legacy |
The is listed in the GE Mark V DS200 product family as a Power Distribution Module. The available product identification also confirms the PDMA functional designation, G6 grouping, and normal PCB coating.
Published secondary documentation associates the PDM architecture with distribution of 125 VDC and 115/230 VAC within the turbine control cabinet, with control-power filtering used ahead of downstream distribution. These values describe the associated cabinet power architecture rather than a simple universal power-supply output specification for every installation, so the cabinet drawing and nameplate should be checked before energizing a replacement.
Product Introduction
GE Power Distribution Module
The is a PDMA Power Distribution Module used within the legacy GE Mark V Speedtronic turbine-control architecture. Its job is power distribution and conditioning rather than turbine sequencing, analog measurement, or communications. In an installed Speedtronic cabinet, this type of hardware sits in the power-distribution path supporting control racks and terminal-board circuitry.
The matters during maintenance because a PDM fault can affect multiple downstream control functions at once. A replacement should therefore be treated as cabinet power hardware, with attention to incoming AC/DC sources, fusing, filtering, distribution wiring, and the exact cabinet configuration rather than evaluating it like an ordinary plug-in PLC module.
DS2020PDMAG6
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A turbine control cabinet can appear healthy while its control-power distribution is deteriorating. Loose terminations, degraded filtering components, fuse problems, heat damage, or unstable input power can create intermittent faults that look like processor or I/O failures. The PDM should be investigated as part of the complete power chain.
Typical Applications
- Gas Turbine Control: Power distribution within GE Speedtronic turbine-control cabinets.
- Industrial Power Generation: Maintenance of legacy Mark V turbine-generator installations.
- Turbine Excitation and Auxiliary Control: Supporting cabinet-level power distribution where the associated GE architecture requires it.
- Legacy Control-System Maintenance: Replacement of failed PDMA hardware without redesigning the installed control cabinet.
Technical Pitfalls to Avoid
- Do not confuse the with a conventional standalone DC power supply.
It is a Power Distribution Module, and its actual function depends on the surrounding Speedtronic cabinet architecture. - Do not assume Mark VI or Mark VIe interchangeability.
Some current listings describe as Mark VI or Mark VIe hardware, but the stronger product-family evidence places it in the Mark V DS200 family. - Verify the cabinet’s incoming power arrangement.
Secondary technical information associates this PDM architecture with 125 VDC and 115/230 VAC sources. The actual cabinet wiring, transformer arrangement, fuse configuration, and distribution paths must be checked against the site drawings. - Inspect upstream and downstream hardware before replacing the board.
A failed PDM can be a consequence rather than the original fault. Check fuses, control-power filters, terminal connections, wiring insulation, and downstream loads before installing the replacement. - Do not hot-swap cabinet power-distribution hardware.
This is power-distribution equipment, not a normal live-replaceable I/O card. Follow the plant’s electrical isolation and turbine shutdown procedures before removal. - Match the complete part number.
DS2020PDMAG3, DS2020PDMAG4, and are all listed as PDM variants, but their exact cabinet/application roles should not be assumed to be interchangeable merely because they share the DS2020PDMA family designation.
Related Products
- GE DS2020PDMAG3 — Related PDMA Power Distribution Module variant; verify the cabinet-specific application before substitution.
- GE DS2020PDMAG4 — Another PDMA power-distribution variant in the same DS2020 family; not automatically interchangeable with G6.
- GE DS2020PDMA — Functional PDMA family designation associated with GE Speedtronic power-distribution hardware.
- GE DS200 Series — Legacy GE Speedtronic board family containing the DS2020 power-distribution modules.
- GE Mark V Speedtronic — Turbine-control platform for which the is identified as legacy hardware.
- GE DS2020EXPSG1 — Related DS2020-family exciter power-supply module; its function is different from the PDM.
- GE DS2020EXPSG3 — Related exciter power-supply variant used in applicable GE turbine/excitation configurations.
- GE DS2020UCOCN1G1A — Related DS2020-family turbine management/front-panel hardware, not a power-distribution replacement.
- GE DS2020LRPAG1 — DS2020-family resolver module with a measurement/control role rather than power distribution.
Procurement note: The is legacy turbine-control hardware. For a replacement, provide the complete designation and, preferably, a clear photograph of the board label and cabinet wiring. Do not substitute DS2020PDMAG3 or PDMAG4 solely on the basis of the shared PDMA designation.
