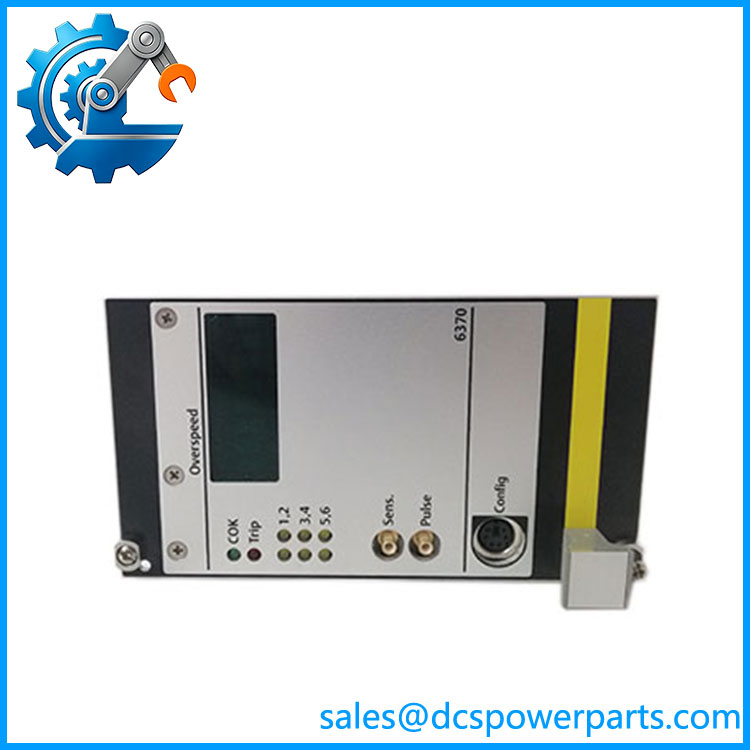

Emerson EPRO A6370D | Overspeed Protection Monitor | AMS 6300 SIS
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | A6370D |
| Manufacturer | Emerson / EPRO |
| System | AMS 6300 SIS |
| Function | Overspeed protection monitoring |
| Speed Channels | 1 |
| Display | Integrated |
| Sensor Types | Eddy-current, Hall-element, magnetic/VR |
| Configuration | USB configurable |
| Sensor Supply | -24.5 V ±1.5 VDC nominal |
| Sensor Supply Current | 35 mA maximum |
| Frequency Range | 0–20 kHz |
| Backplane Digital Inputs | 4 |
| Backplane Current Outputs | 2 |
| Current Output Range | 0/4–20 mA or 20–4/0 mA |
| Current Output Accuracy | ±1% full scale |
| System Backplane | A6371 |
| Rack Format | 19-inch system, 84 HP / 3 RU with A6371 |
The published Emerson documentation confirms the A6370D’s one-channel architecture, display, USB configuration, and sensor compatibility. The monitor works together with the A6371 backplane; a complete AMS 6300 SIS arrangement uses three protection monitors and one system backplane.
Product Introduction
The Emerson EPRO A6370D is a one-channel overspeed protection monitor for the AMS 6300 SIS. It processes speed signals from compatible rotating-equipment sensors and provides the monitoring functions required within the overspeed protection architecture. The unit includes a local display and USB configuration capability.
This is safety-related turbine protection hardware, not a standard machinery-condition-monitoring card. During replacement, the monitor must be considered together with the A6371 backplane, sensor/converter chain, trip configuration, and the other protection monitors installed in the system.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
An overspeed protection system cannot be treated like an ordinary process I/O loop. When a speed monitor is replaced, the concern is not simply whether the display powers up. Sensor compatibility, configuration, firmware, voting architecture, and trip behavior all need to agree with the existing protection system.
A6370D
Typical Applications
- Steam turbine overspeed protection
- Gas turbine and rotating-equipment protection
- Compressor and expander speed monitoring
- AMS 6300 SIS turbine protection cabinets
Technical Pitfalls
- Do not confuse A6370D with A6370D/DP.
is the standard monitor with display, while /DP adds PROFIBUS-DP. They should not be treated as identical replacement units. - Check the sensor technology.
Emerson specifies compatibility with eddy-current, Hall-element, and magnetic/VR sensors. The sensor type and associated converter must match the installed configuration. - Verify firmware before installation.
Emerson’s firmware documentation identifies different firmware generations and specifically warns about compatibility between earlier and later versions. For a safety-certified system, firmware consistency across the installed monitors matters. - Do not treat the four digital inputs as general-purpose PLC inputs.
The has four backplane digital inputs associated with system functions such as test values, enable/test functions, and reset. They are part of the overspeed-monitor architecture. - Check the A6371 backplane configuration.
The A6371 provides the system backplane for the protection monitors. Emerson documents both trip-voted and externally/not-voted arrangements, so the backplane variant should be verified before procurement. - Do not substitute a generic speed or vibration monitor.
belongs to the AMS 6300 SIS overspeed-protection architecture. Its system role and safety configuration are more important than superficial similarities in speed-input specifications.
Related Products
- Emerson EPRO /DP — one-channel overspeed protection monitor with display and PROFIBUS-DP.
- Emerson EPRO /00 — A6370 system backplane with trip voting.
- Emerson EPRO /10 — A6370 system backplane with external/non-voted trip arrangement.
- Emerson EPRO A6380 — associated AMS 6300 SIS system component.
- Emerson EPRO A6381 — associated AMS 6300 SIS system component.
- Emerson EPRO A6384 — associated AMS 6300 SIS system component.
- Emerson EPRO A6385 — associated AMS 6300 SIS system component.
- Emerson EPRO A6386 — associated AMS 6300 SIS system component.
- Emerson EPRO A6387 — associated AMS 6300 SIS system component.
- Emerson EPRO A6910 — configuration/system component used with AMS 6300 SIS packages.
Procurement Note
For , verify the exact front-panel designation, firmware revision, sensor type, existing backplane, and system voting arrangement before approving a replacement. Emerson’s documentation shows that firmware compatibility has changed across revisions, and the /DP variant has a materially different communication interface.
For a plant spare, I would record the firmware version and hardware revision from the existing unit rather than purchasing solely by the base model number. Emerson’s 2026 documentation lists current hardware revisions 10–13 and current firmware information, making revision-level identification particularly useful for an installed AMS 6300 SIS.
