Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | Emerson A6140 |
| Part Number | 9199-00058 |
| Manufacturer | Emerson / EPRO |
| Product Type | Shaft Absolute Vibration Monitoring Module |
| System Platform | AMS 6500 Machinery Health Monitor / CSI 6500 |
| Measurement Function | Shaft absolute vibration |
| Channels | Dual-channel independent measurement |
| Sensor Input CH1 | Eddy-current probe system (6422/6423/6424/6425 with CON preamplifier) |
| Sensor Input CH2 | Piezoelectric casing vibration transducer |
| Measurement Signals | Relative shaft vibration, casing vibration, absolute shaft vibration |
| Analog Output | 4–20 mA per channel / configurable |
| Buffered Output | Raw vibration signal output |
| Relay Function | Alert/Danger alarm contacts |
| Configuration | User-adjustable sensitivity, filters, alarm thresholds |
| Mounting | 3U Eurocard rack module |
| Slot Width | 6 HP |
| Application | Turbines, compressors, large rotating machinery |
| Communication | Via AMS 6500 rack communication modules |
([turn0search1]turn0search12)
Product Introduction

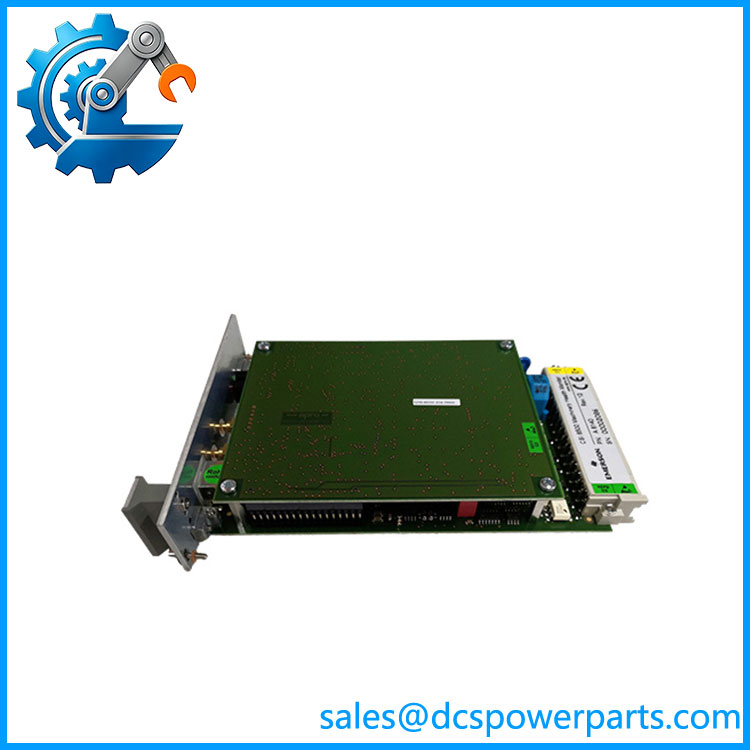

Emerson A6140 9199-00058 Product Introduction
Emerson A6140 9199-00058 is a shaft absolute vibration monitoring module designed for the AMS 6500 / CSI 6500 machinery protection platform. It processes signals from displacement probes and casing vibration sensors to evaluate the actual vibration behavior of rotating machinery relative to free space. ([turn0search1]turn0search12)
The primary purpose of Emerson A6140 9199-00058 is protecting critical rotating assets such as steam turbines, compressors, and large motors where conventional relative shaft vibration measurements may not provide complete machine condition information. Before replacement, verify sensor configuration, rack compatibility, firmware revision, and existing alarm settings. ([turn0search12])
A6140 9199-00058
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A turbine or compressor can continue running while vibration levels slowly increase. The difficult part is identifying whether the problem comes from rotor imbalance, misalignment, bearing degradation, looseness, or casing response. A wrong vibration measurement method can lead to false alarms or missed mechanical problems.
The A6140 is typically applied where absolute shaft movement matters. Installation accuracy and sensor matching are critical.
Typical Applications
- Power Generation – Steam turbine and generator train monitoring for vibration protection and mechanical condition assessment.
- Oil & Gas – Compressor trains, centrifugal pumps, and critical rotating equipment monitoring.
- Petrochemical Plants – Process compressors and large rotating machinery requiring continuous protection.
- Industrial Manufacturing – High-value motors, turbines, and production equipment with vibration-based maintenance programs.
Technical Pitfalls to Avoid
- Verify Sensor Combination Before Replacement
The A6140 uses specific measurement combinations. Confirm the installed eddy-current probe system, preamplifier type, and casing vibration sensor before commissioning. - Do Not Copy Alarm Limits Between Machines
Vibration thresholds depend on machine design, bearing type, speed, and operating conditions. Existing settings should be reviewed rather than blindly transferred. - Check AMS 6500 Rack Compatibility
The is a rack-based protection module, not a standalone monitor. Confirm the backplane, power supply, and communication module configuration before installation.
Related Products
- Emerson A6110 9199-00001
Shaft relative vibration monitoring module. Used when measurement is based on shaft displacement relative to the bearing housing, commonly applied to many rotating machines. - Emerson A6120 9199-00002
Case seismic vibration monitoring module. Designed for casing vibration measurement using seismic sensors. - Emerson A6125 9199-00069
Piezoelectric casing vibration monitoring module. Suitable for accelerometer-based vibration measurement applications. - Emerson A6210 9199-00003
Thrust position and differential expansion monitoring module. Used for axial movement protection on turbines and large rotating equipment. - Emerson A6220 9199-00009
Shaft eccentricity monitoring module. Used for detecting rotor deformation or startup-related shaft bow conditions. - Emerson A6312 9199-00025
Speed and keyphasor monitoring module. Provides rotational speed and phase reference measurement. - Emerson A6824 9199-00090
Modbus communication module for AMS 6500 systems. Used for integrating machinery data into plant control or monitoring networks. - Emerson A6560
Machinery Health processor module supporting advanced condition monitoring and diagnostic functions within the AMS 6500 platform.
