Emerson 5X00106G01 | Ovation HART High Performance Analog Input Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Product Family | Ovation |
| Model | 5X00106G01 |
| Product Type | Electronics Module (EMOD) |
| Function | HART High Performance Analog Input |
| Number of Channels | 8 |
| Analog Input Range | 4–20 mA |
| HART Support | Yes |
| Module Architecture | Electronics Module + Personality Module |
| Associated Personality Module | 5X00109G01 |
| Typical Field Device | HART-enabled 4–20 mA transmitter |
| Application | Ovation DCS process instrumentation |
Emerson’s current factory-certified parts document explicitly identifies 5X00106G01 as an “Ovation 8 Channel Analog Input, HART High Performance, Electronics Module.” Emerson’s Ovation spare-parts list likewise identifies it as an EMOD assembly, analog input, 8-channel, HART high performance.
Product Introduction
The Emerson 5X00106G01 is an Ovation DCS analog input electronics module designed to interface eight independent 4–20 mA HART process signals with the control system. It is intended for instrumentation such as pressure, flow, level, and temperature transmitters that use the conventional 4–20 mA loop with HART digital communication superimposed on the analog signal.
The important architectural detail is that 5X00106G01 is the Electronics Module, not the complete field termination/personality assembly. Emerson documentation identifies 5X00109G01 as the corresponding Personality Module, which provides the eight fused input circuits and user-accessible jumpers for configuring channels for field-powered or locally powered transmitters.

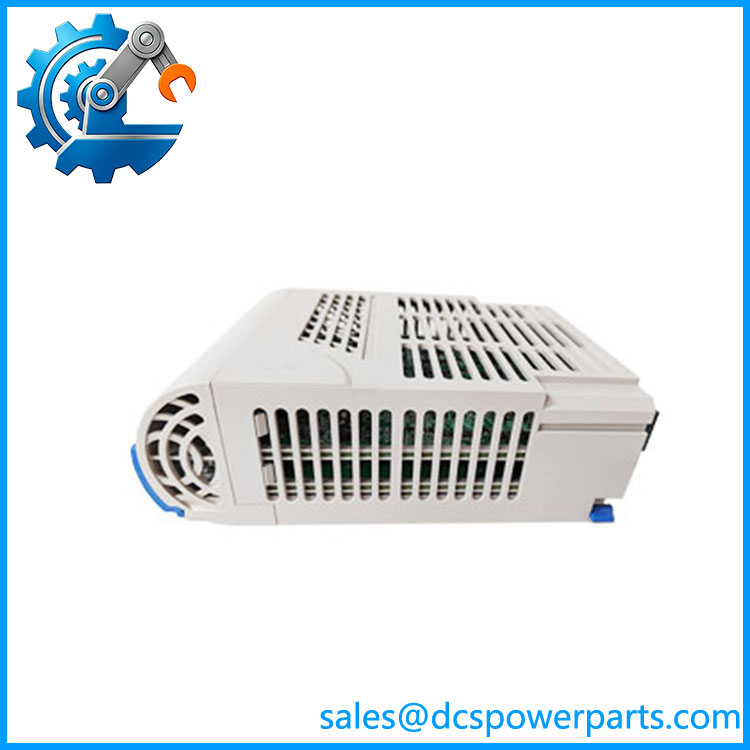

5X00106G01
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A common replacement mistake is treating 5X00106G01 as a standalone generic 4–20 mA input card. In an Ovation installation, its relationship with the personality module and field wiring configuration matters just as much as the electronics-module part number.
Typical Applications
- Ovation DCS process measurement — pressure, flow, level, temperature and other analog process variables.
- HART transmitter integration — provides the analog process signal while supporting HART communication with compatible field instruments.
- Power-generation instrumentation — suitable for legacy Ovation-controlled plant instrumentation.
- Ovation system maintenance — replacement of failed or aging high-performance analog input electronics.
Technical Pitfalls to Avoid
- Do not confuse 5X00106G01 with 5X00109G01.
Emerson identifies 5X00106G01 as the Electronics Module and 5X00109G01 as the Personality Module. The personality module contains the channel fuses and field-power configuration jumpers. - Verify the 4–20 mA loop arrangement before replacement.
The HART analog input subsystem is designed around eight current-loop signals. Field-powered versus locally powered transmitter configuration is handled through the associated personality hardware. - Do not substitute another Ovation analog-input module solely because it has eight channels.
Emerson lists 5X00070G04 as an 8-channel medium-speed input module for 20/50/100 mV signals, while 5X00119G01 is an 8-channel RTD input module. These have different signal types and cannot be treated as functional equivalents. - Check HART requirements separately from the analog loop.
A 4–20 mA signal can remain operational even when HART communication has a separate configuration or wiring issue. During troubleshooting, verify the transmitter loop, HART accessibility, Ovation configuration, and the electronics/personality-module combination independently.
Related Products
- Emerson 5X00109G01 — Ovation HART High Performance Analog Input Personality Module; provides the eight fused input circuits and channel power-selection jumpers.
- Emerson 5X00109G02 — related HART high-performance analog input Personality Module with current limiting.
- Emerson 5X00070G04 — 8-channel medium-speed analog input electronics module for 20, 50, and 100 mV signals; different input application.
- Emerson 5X00062G01 — 8-channel 4–20 mA HART analog output electronics module; output rather than input function.
- Emerson 5X00119G01 — 8-channel RTD input electronics module for temperature measurement.
- Emerson 5X00167G01 — 4-channel high-performance HART analog output electronics module.
Procurement and Replacement Notes
For an Emerson 5X00106G01, verify the complete part number and the associated field-side hardware before approving a replacement.
Recommended checks:
- Exact part number: 5X00106G01
- Ovation DCS generation
- Eight-channel HART analog-input application
- 4–20 mA field loops
- Associated 5X00109G01 personality module
- Field-powered versus locally powered transmitter configuration
- Existing Ovation I/O configuration
- HART transmitter requirements
- Channel mapping and engineering-unit configuration
- Condition of field wiring, fuses, jumpers, and terminations
- Application backup and DCS configuration before replacement
Recommended procurement description:
Emerson Ovation 5X00106G01 HART High Performance Analog Input Electronics Module, 8-Channel 4–20 mA Input, Ovation DCS EMOD, Used with 5X00109G01 Personality Module.
The key identification point is simple: 5X00106G01 is the 8-channel HART analog-input Electronics Module (EMOD), while 5X00109G01 is the associated Personality Module. Do not combine their functions into one generic “analog input card” description.
