Description
Product Overview

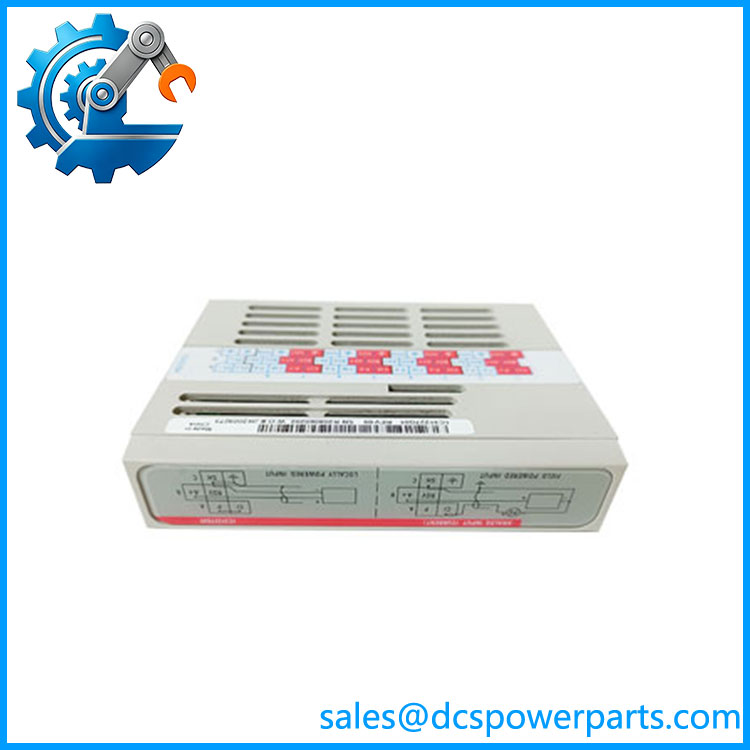

The Emerson 1C31227G01 is an Ovation analog input Personality Module (PMOD) used with the corresponding electronics module to form an 8-channel, 14-bit analog input subsystem. Emerson documentation identifies the module as the current-input personality module for 4–20 mA signals, supporting both field-powered and locally powered configurations. The associated electronics module performs the analog-to-digital conversion and communicates the acquired process values to the Ovation Serial I/O Bus, while the PMOD provides the field interface, signal routing, and input protection.
For Emerson 1C31227G01, the distinction between the PMOD and the electronics module is important during procurement. This part is not a standalone 8-channel A/D converter. It is paired with the 1C31224G01 electronics module for the standard 14-bit 4–20 mA configuration; Emerson’s spare-parts documentation explicitly identifies 1C31227G01 as an 8-channel current analog-input PMOD. The documented input subsystem provides eight individually isolated channels, with surge protection on the personality module. For the high-speed analog input architecture, the same 1C31227G01 personality module is also specified for 4–20 mA current inputs when paired with the appropriate high-speed electronics module.
The Emerson 1C31227G01 is therefore best treated as a configuration-specific Ovation I/O component rather than a generic analog input card. When replacing one in an operating DCS, confirm whether the installation uses the standard 14-bit electronics module or the high-speed electronics module, then verify terminal wiring and loop-power arrangements. A catalog-number match without the companion hardware check can result in a technically correct PMOD being installed into the wrong I/O configuration.
Product Introduction
A 4–20 mA loop can look simple at the cabinet level, but the Ovation architecture separates field interfacing from the A/D electronics. 1C31227G01 provides the current-input personality interface for eight channels, while the companion electronics module performs conversion and serial-bus communication.
For an Ovation DCS analog input replacement, verify the companion electronics module and whether the system uses standard or high-speed analog input hardware. That check is more important than the PMOD’s physical appearance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson |
| Product Family | Ovation |
| Model | 1C31227G01 |
| Product Type | Analog Input Personality Module / PMOD |
| Number of Channels | 8 |
| Primary Signal | 4–20 mA |
| Input Configuration | Field-powered or locally powered |
| Resolution | 14-bit when used with the standard 1C31224G01 electronics module |
| Channel Isolation | Individually isolated inputs |
| Companion Electronics Module | 1C31224G01 for standard 14-bit configuration |
| High-Speed Companion | 5X00070G01 for high-speed configuration |
| Input Protection | Surge protection provided by personality module |
| Communication | Through companion electronics module to Ovation Serial I/O Bus |
| Thermocouple Input | Not provided in the standard 1C31227G01 configuration |
| Auxiliary Supply | 24 VDC when required for high-speed current-loop configuration |
| Standard Module Power | 2.4 W typical / 3.125 W maximum for high-speed electronics module |
| High-Speed Auxiliary Power | 3.84 W typical at 8 × 20 mA |
| Operating Temperature | 0–60°C for documented high-speed configuration |
| Storage Temperature | -40–85°C |
| Humidity | 0–95% RH, non-condensing |
The 14-bit standard configuration and high-speed configuration should not be conflated: Emerson documents 1C31227G01 as compatible with both architectures but with different companion electronics modules.
Related Products
- 1C31224G01 — The standard 8-channel, 14-bit analog input electronics module paired with 1C31227G01 for 4–20 mA current inputs. It performs the A/D conversion and Ovation Serial I/O Bus interface.
- 5X00070G01 — High-speed analog input electronics module compatible with 1C31227G01 for 4–20 mA inputs. It is used where the higher-speed Ovation analog-input architecture is required.
- 1C31227G02 — Voltage-input personality module. It is the appropriate PMOD family member for documented voltage-input configurations rather than the 4–20 mA function of G01.
- 1C31116G02 — Personality module for field-powered ±1 mA current inputs. Its signal range and wiring arrangement differ substantially from 1C31227G01.
- 1C31116G03 — Personality module for locally powered ±1 mA current inputs. It is intended for a different low-current measurement configuration.
- 1C31116G04 — Personality module associated with thermocouple/temperature-sensor input configurations in the high-speed analog-input architecture. It should not be substituted for a 4–20 mA PMOD.
- 1C31227G01 + 1C31224G01 assembly — The standard combination for an Ovation 8-channel 14-bit 4–20 mA analog input subsystem. Procurement should verify both components together rather than treating the PMOD as a complete I/O channel card.
- Ovation Serial I/O Bus interface — The companion electronics module handles the digital interface to the Ovation controller; the 1C31227G01 itself does not directly function as the controller-facing electronics module.
1C31227G01
Frequently Asked Questions
What is Emerson 1C31227G01 used for?
The 1C31227G01 is an Ovation analog input personality module for 4–20 mA current signals.
Its standard configuration provides:
- 8 analog input channels
- 4–20 mA current-input capability
- Field- or locally powered loop support
- Individual channel isolation
- Input protection
The companion electronics module performs the A/D conversion and communicates with the Ovation Serial I/O Bus.
Is 1C31227G01 a complete analog input module?
Not by itself.
This is the most important procurement distinction.
The 1C31227G01 is the Personality Module, or PMOD. For the standard 14-bit analog-input configuration, it works with 1C31224G01, the associated electronics module. Emerson’s documentation lists these two components together for the 8-channel 4–20 mA configuration.
Does 1C31227G01 support 4–20 mA?
Yes. 4–20 mA is its primary documented current-input function.
The standard configuration supports field-powered or locally powered 4–20 mA loops across eight channels.
For the high-speed architecture, Emerson also specifies 1C31227G01 with the 5X00070G01 electronics module for 4–20 mA inputs.
Can I use 1C31227G01 with 1C31224G02?
No, not for the documented standard configurations.
The pairing is signal-specific:
- 1C31224G01 + 1C31227G01 → 4–20 mA
- 1C31224G02 + 1C31227G02 → voltage input
Emerson documentation explicitly separates the two combinations.
Changing only one side of the pair can produce an incorrect input configuration.
Does 1C31227G01 support thermocouples?
No, not in the standard 1C31227G01 current-input configuration.
The standard 1C31227G01 is intended for current input. Emerson’s high-speed analog-input documentation assigns thermocouple/temperature-sensor applications to different personality-module configurations, including 1C31116G04.
Can 1C31227G01 be used for a high-speed analog input system?
Yes, with the correct high-speed electronics module.
Emerson documentation identifies 5X00070G01 as the high-speed electronics module for 4–20 mA inputs and lists 1C31227G01 as its compatible personality module. The high-speed architecture specifies 16 samples/second with 50 Hz rejection and 20 samples/second with 60 Hz rejection.
Do not assume that a standard 1C31224G01/1C31227G01 pair and a high-speed 5X00070G01/1C31227G01 pair have identical system behavior.
Will I lose my DCS configuration if I replace 1C31227G01?
Normally, the PMOD itself is not where the complete Ovation control strategy resides.
Still, before replacing it, document:
- Channel assignments.
- Signal type and loop-power arrangement.
- Terminal wiring.
- Associated electronics-module part number.
- Ovation I/O configuration.
- Channel scaling and engineering units.
- Existing diagnostic status.
The PMOD is part of the physical signal path, so incorrect wiring or an incorrect companion module can affect the process values even when the controller configuration has not changed.
How should a New Surplus 1C31227G01 be tested?
A meaningful test should use 4–20 mA loop simulation, not merely a visual inspection.
Recommended procedure:
- Confirm the complete 1C31227G01 marking and revision.
- Identify the companion electronics module.
- Verify the terminal assembly.
- Inspect connectors and field terminals.
- Install the PMOD in a compatible Ovation I/O assembly.
- Apply representative 4–20 mA signals to all eight channels.
- Verify channel isolation and correct channel mapping.
- Test both applicable loop-power arrangements.
- Check the controller’s displayed process values.
- Verify out-of-range and open-loop diagnostics where applicable.
- Check signal stability at several points, such as 4, 12, and 20 mA.
- Record the complete test results.
Quality-control point: Emerson’s own documentation distinguishes the PMOD from the electronics module. A supplier claiming that 1C31227G01 alone is a complete 8-channel A/D module is describing the part inaccurately.
