Eaton XVS-430-10MPI-1-10 | Industrial Operator Panel 24VDC TFT Display, In Stock

Eaton XVS-430-10MPI-1-10 | Industrial Operator Panel 24VDC TFT Display, In Stock

  • Model: XVS-430-10MPI-1-10
  • Brand: Eaton
  • Series: XVS400 Operator Panel / HMI-PLC Series
  • Core Function: Provides graphical operator control, machine visualization, alarm handling, and PLC communication functions.
  • Product Type: Human Machine Interface (HMI) / Operator Panel
  • Key Specs:
    • 10.4-inch TFT color display with resistive touch
    • VGA resolution: 640 × 480 pixels
    • Communication interfaces: Ethernet, RS232, PROFIBUS/MPI
Add To Quote
Category: SKU: Eaton XVS-430-10MPI-1-10

Description

Key Technical Specifications

Parameter Value
Manufacturer Eaton
Model Number XVS-430-10MPI-1-10
Catalog Number 139972
Product Type HMI Touch Panel / Operator Terminal
Product Series XVS400 10.4″
Display Type TFT Color LCD
Display Size 10.4 inch
Resolution VGA 640 × 480 pixels
Touch Technology Resistive touch, 4-wire
Display Colors 256 or 65,536 selectable colors
Supply Voltage 24VDC (20.4–28.8VDC)
Communication Interfaces Ethernet, RS232, PROFIBUS/MPI
USB Interfaces 2 × USB Host, 1 × USB Device
Memory 64MB DRAM for OS/program/data
Storage CompactFlash card support
Operating System Windows CE (license dependent)
PLC Function Optional PLC function upgrade
Mounting Flush panel mounting
Front Protection Industrial front membrane design
Heat Dissipation Approx. 24W
Application Machine control, process visualization, operator interface



Product Introduction



Eaton XVS-430-10MPI-1-10 Overview

The Eaton XVS-430-10MPI-1-10 is a 10.4-inch industrial HMI operator panel from the XVS400 series. It provides machine visualization, operator commands, alarm display, and communication functions between operators and automation controllers through Ethernet, RS232, and PROFIBUS/MPI interfaces.

The Eaton XVS-430-10MPI-1-10 is used in existing industrial automation systems where a dedicated operator interface is required for PLC-based machines and process equipment. Its combination of display, touch input, and optional PLC functionality makes it suitable for control panels that require both visualization and local control capability.

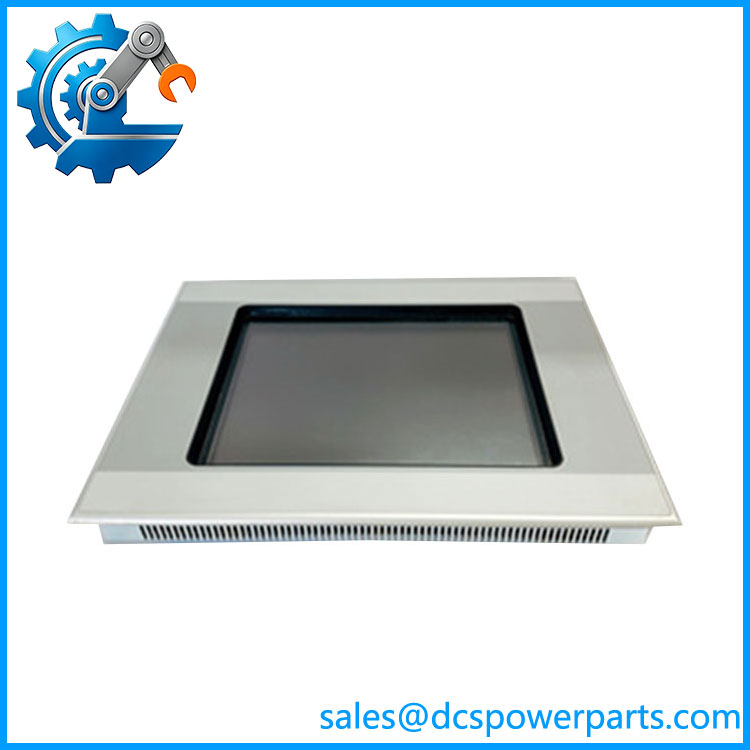

XVS-430-10MPI-1-10

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A machine is running, but the operator station suddenly becomes unreliable. Touch inputs become inconsistent, alarm screens stop updating, or PLC communication drops intermittently. Engineers often replace the controller first, but the real problem can be the HMI hardware, project file compatibility, communication settings, or aging storage media.

The XVS-430-10MPI-1-10 is the operator’s window into the automation system. If the interface fails, production troubleshooting becomes slower even when the control logic remains healthy.



Typical Applications

  • Packaging Machinery – Operator recipe selection, machine status display, alarm acknowledgment, and parameter adjustment.
  • Manufacturing Production Lines – PLC visualization, equipment diagnostics, and production monitoring.
  • Water and Wastewater Systems – Pump station monitoring, valve control interfaces, and process visualization.
  • Material Handling Systems – Conveyor control panels, equipment status display, and manual operation stations.



Technical Pitfalls to Avoid

  1. Verify Project Compatibility Before Replacement

    The physical HMI replacement is only part of the job. Confirm the original application project, communication driver settings, and software version before startup.

  2. Check PROFIBUS/MPI Parameters

    Incorrect baud rate, station address, or PLC communication settings can make a replacement panel appear defective when the issue is configuration mismatch.

  3. Inspect CompactFlash Storage Condition

    Older XVS400 panels often depend on external storage media for applications and data. Check the memory card condition and backup the project before hardware replacement.



Related Products

  • Eaton XVS-430-57MPI-1-10
    Smaller XVS400 operator panel variant with a 5.7-inch display. Suitable for compact machine control stations where less visualization space is required.
  • Eaton XVS-460-84MPI-1-10
    8.4-inch XVS400 HMI variant. Used for applications requiring a larger screen than small machine panels but less space than 10.4-inch models.
  • Eaton XVS-440-10MPI-1-10
    10.4-inch XVS400 variant with different touch technology. Application suitability depends on operator environment and project requirements.
  • Eaton XVS-450-10MPI-1-10
    Related 10.4-inch operator panel model. Verify communication options and hardware revision before substitution.
  • Eaton XV400 Series HMI Panels
    Same product family covering different screen sizes and communication configurations for industrial operator interface applications.
  • Eaton XV102 HMI Series
    Compact operator panels designed for smaller automation systems where full-size functionality is not required.
  • Eaton XC Series PLC Controllers
    PLC platforms commonly paired with Eaton HMI terminals for machine automation applications.
  • Eaton XSoft-CoDeSys Programming Environment
    Engineering software environment used for PLC/HMI configuration tasks depending on installed licenses and system architecture.
