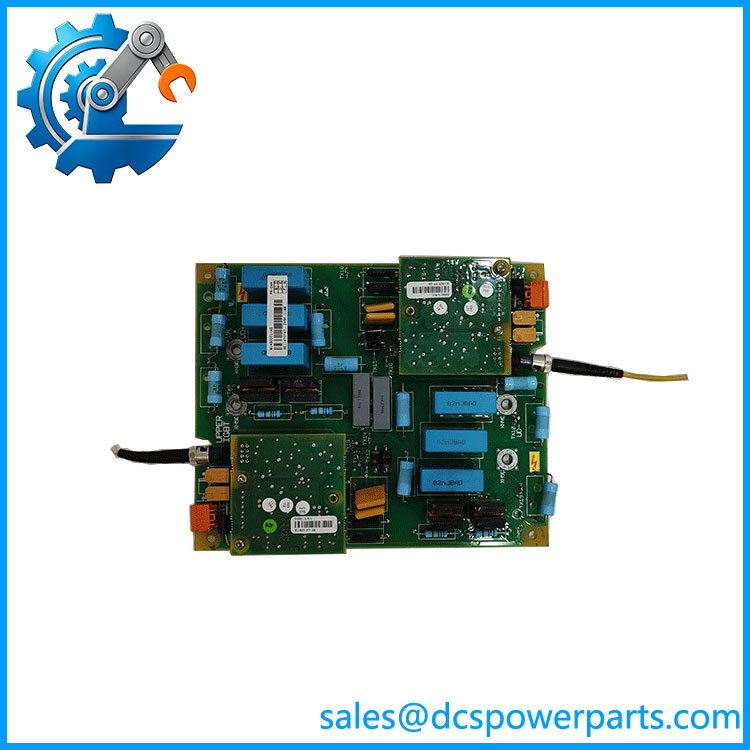

ABB DYTP123A 61430001-TW Product Description
Product Overview
ABB DYTP123A 61430001-TW is an ABB industrial digital signal processor / communication interface module used within legacy ABB automation and control-system architectures. Multiple industrial references identify the exact combination DYTP123A / 61430001-TW as an ABB module, with product listings classifying it as a digital signal processor module or communication module.
The DYTP123A 61430001-TW is designed to process and exchange industrial control signals within a larger ABB system, supporting reliable data handling between control components and associated equipment. It is particularly relevant for maintenance and replacement of installed ABB automation systems where the original hardware architecture must be retained.
Identification note: Public third-party sources are inconsistent about the exact functional designation of this part. Some describe it as a communication/Ethernet connectivity module, while another ABB product index identifies DYTP123A 61430001-TW as a digital signal processor module. Therefore, the exact electrical interfaces, protocol support and application should be verified against the installed system documentation before substitution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DYTP123A |
| Part Number | 61430001-TW |
| Manufacturer | ABB |
| Product Type | Digital Signal Processor / Communication Module |
| Application | Industrial Automation & Control |
| Signal Processing | Digital control/data processing |
| System Integration | ABB control-system architecture |
| Communication | Configuration dependent |
| Ethernet | Reported by some commercial listings |
| Power Supply | 24 VDC reported by third-party listings |
| Power Consumption | Approx. 5 W reported |
| Dimensions | Approx. 100 × 160 × 40 mm reported |
| Operating Temperature | −20 to +60°C reported |
| Relative Humidity | 5–95%, non-condensing reported |
| Installation | Industrial control cabinet / system rack |
| Part Number Suffix | -TW |
The 24 VDC supply, 5 W consumption and physical dimensions above come from a third-party listing and should be treated as reference specifications rather than confirmed ABB datasheet values.
Main Features and Advantages
Digital Signal Processing
The DYTP123A 61430001-TW is associated with digital signal-processing functions in ABB automation systems. It can perform processing of control-system information and support the exchange of signals between different parts of an automation architecture.
DYSF118B
Industrial Communication Interface
Several commercial references classify the DYTP123A as a communication module, with one listing specifically describing it as an Ethernet connectivity module. This indicates that communication/data-interface functionality is an important part of its intended application, although the exact protocol configuration should be confirmed from the system documentation.
Compact Industrial Construction
The reported approximately 100 × 160 × 40 mm form factor makes the unit suitable for installation within space-constrained industrial cabinets. Its compact construction is advantageous when maintaining older control-system cabinets where available mounting space is limited.
Legacy ABB System Support
The 61430001-TW designation is repeatedly listed alongside other ABB 61430001-xx modules, including DYTP600A 61430001-ZY, DYSF118B 61430001-XG, DYPS154C 61430001-YP and DTCC901B 61430001-FU. This indicates that DYTP123A belongs to a broader family of ABB legacy control-system hardware.
Maintenance and Replacement
For an existing ABB installation, replacing the exact DYTP123A 61430001-TW can be considerably simpler than redesigning the surrounding control architecture. Matching both the model number and complete ABB part number is recommended because related 61430001-series modules are not necessarily interchangeable.
Application Fields
ABB DYTP123A 61430001-TW is suited to industrial environments where ABB control hardware is used for process automation, equipment control and signal processing.
Power Generation
The module can be encountered in legacy ABB automation systems used for turbine, generator and auxiliary-equipment control. It can form part of the communication and signal-processing layer connecting controllers with other system components.
Process Industries
In oil & gas, petrochemical and chemical plants, ABB automation hardware is commonly used for process-control and equipment-monitoring functions. The DYTP123A can serve as part of the system-level digital signal and communication infrastructure.
Manufacturing
In industrial production lines, compatible ABB control architectures can use digital processing and communication modules to coordinate machinery, instrumentation and supervisory systems.
Industrial Retrofit Projects
The DYTP123A 61430001-TW is especially relevant to legacy-system maintenance, refurbishment and spare-parts procurement. Exact replacement is important when the installed system depends on a specific hardware revision or connector configuration.
