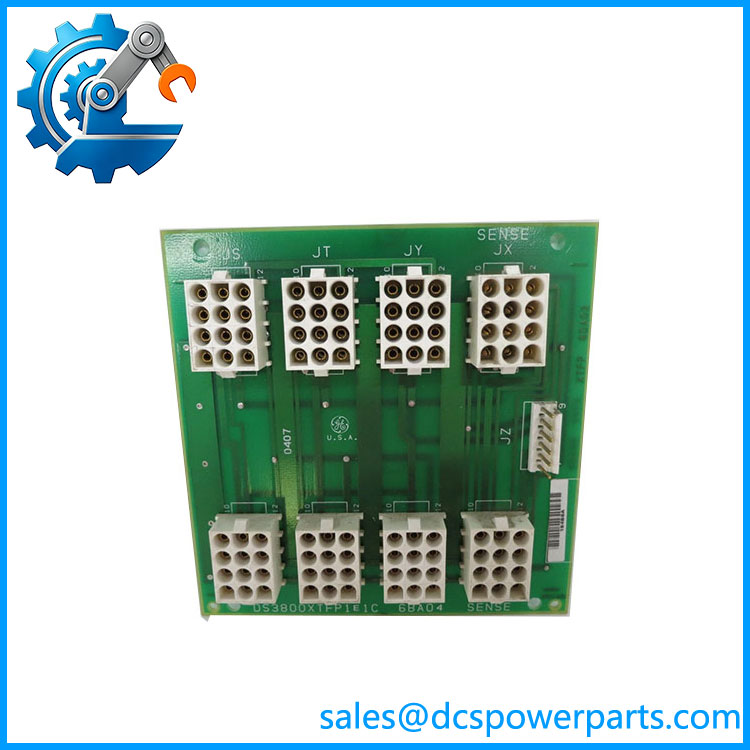

GE Mark IV DS3800XTFP1E1C Product Description
Product Overview
GE DS3800XTFP1E1C is a Thyristor Fan-Out Board belonging to the General Electric Mark IV Speedtronic DS3800 turbine control platform. The board is designed to distribute and interface control signals within the turbine control architecture, supporting the electronic circuitry used to operate and regulate gas and steam turbine systems. Available technical references identify DS3800XTFP1E1C specifically as a fan-out card in the Mark IV family.
The GE DS3800XTFP1E1C features multiple logic-gate/fan-out sections and is intended to route or distribute signals between control circuitry and associated turbine-control electronics. In a Speedtronic installation, this type of board forms part of the signal-processing and interface layer rather than functioning as a standalone PLC CPU or general-purpose I/O module.
For maintenance of legacy GE turbine control systems, DS3800XTFP1E1C GE Mark IV is valuable as a replacement board because maintaining the original hardware configuration can reduce modification work and help restore turbine-control functionality without replacing the entire control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DS3800XTFP1E1C |
| Manufacturer | General Electric (GE) |
| Product Family | Mark IV / DS3800 Speedtronic |
| Product Type | Thyristor Fan-Out Board |
| Board Function | Signal Fan-Out / Control Signal Distribution |
| Logic Sections | 8 fan-out/logic sections |
| Front Components | Red logic-gate assemblies |
| Board Architecture | Mark IV Speedtronic |
| Application | Gas & Steam Turbine Control |
| System Interface | Mark IV internal control architecture |
| Installation | GE Mark IV Control Rack |
| PCB Identification | DS3800XTFP1E1C |
| Typical Use | Turbine Control Signal Processing |
| Part Number | DS3800XTFP1E1C |
The available GE Mark IV reference identifies the board as a Thyristor Fan Out Board and notes eight red logic-gate sections, each incorporating multiple connection points.
Main Features and Advantages
Thyristor Fan-Out Function
The primary role of GE DS3800XTFP1E1C is signal fan-out within the Mark IV control architecture. Fan-out circuitry allows a control signal to be distributed to multiple downstream electronic circuits, making it useful where one turbine-control signal must be presented to several logic or interface stages.
Eight Logic Sections
The board is equipped with eight red logic-gate/fan-out assemblies, providing multiple signal-distribution paths on a single PCB. This integrated arrangement helps consolidate turbine-control circuitry and supports the modular design of the DS3800 hardware platform.
DS3800XTFP1E1C
Mark IV Speedtronic Compatibility
The DS3800XTFP1E1C GE was developed specifically for the GE Mark IV Speedtronic turbine-control family. Mark IV systems were designed to supervise and control gas and steam turbines, integrating measurement, sequencing, protection and control functions into a dedicated turbine-control architecture.
Fast Electronic Signal Distribution
Turbine-control systems require predictable signal transmission between sensing, logic and actuator-control circuits. A dedicated fan-out board provides a structured hardware path for distributing these signals without requiring separate discrete wiring for every downstream logic function.
Modular PCB Maintenance
The DS3800 architecture uses replaceable circuit boards, allowing maintenance personnel to isolate a failed PCB and replace the affected assembly. Keeping an exact DS3800XTFP1E1C spare can therefore shorten troubleshooting and restoration time on older turbine control systems.
Legacy System Support
Many industrial and power-generation turbines continue operating with established Speedtronic control hardware. For these installations, replacing a failed board with a matching DS3800XTFP1E1C can be preferable to redesigning the control system, particularly when the existing turbine logic and field interfaces remain serviceable.
Application Fields
GE DS3800XTFP1E1C is primarily applied in GE Mark IV Speedtronic turbine-control systems used for gas turbines and steam turbines. The board forms part of the electronic signal-distribution architecture responsible for coordinating control signals between different stages of the turbine control system.
In power-generation plants, the DS3800XTFP1E1C GE Mark IV can be found within legacy turbine control cabinets associated with generators, auxiliary systems and turbine-control equipment. Its signal fan-out function supports the distribution of logic signals required by the broader control and sequencing architecture.
The board is also relevant to industrial cogeneration and process plants where GE turbine-generator packages remain in operation. These installations often depend on long-established Speedtronic hardware to manage turbine startup, shutdown, load regulation and associated protection functions.
For maintenance teams, DS3800XTFP1E1C is particularly useful as a replacement PCB for an existing Mark IV cabinet. Exact board identification is important because DS3800 boards can have similar physical formats but different circuit functions, signal assignments and revisions. The complete DS3800XTFP1E1C designation should therefore be matched before installation.
