Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | DS200TCPDG2BEC |
| Manufacturer | General Electric (GE) |
| Series | Mark V Speedtronic |
| Functional Acronym | TCPD |
| Product Type | Power Distribution Board |
| Main Function | DC power distribution and circuit protection |
| Input Voltage | 125 VDC |
| Distribution Circuits | 36 fused branches |
| Fuse Monitoring | Individual LED status indication |
| Toggle Switches | 8 |
| Signal Terminals | 4 signal line terminals |
| Connector Type | 10-pin connector |
| Application | Turbine control cores, I/O cores, auxiliary control power |
| Installation | Mark V turbine control cabinet |
| PCB Configuration | G2BEC revision assembly |
Application Scenarios & Pain Points
Power distribution failures create a difficult troubleshooting situation: several unrelated modules may report faults at the same time because they share the same upstream supply path.
Typical applications:
- Gas Turbine Control: Supplies protected DC power to Mark V control cores, I/O racks, and turbine monitoring assemblies. A weak branch circuit can interrupt startup sequences or generate false diagnostics.
- Steam Turbine Automation: Supports legacy Speedtronic cabinets where stable control power is required for protection, sequencing, and auxiliary equipment management.
- Power Generation Maintenance: Used as a spare replacement board during planned outages when maintaining existing Mark V infrastructure is preferred over complete controls modernization.
- Turbine Panel Repair: Helps restore individual power branches after fuse failures, component aging, or distribution board damage.
Field note: A generating station experienced repeated controller resets during turbine operation. Initial checks focused on processor hardware, but voltage measurements showed unstable power distribution on several branch outputs. After replacing the TCPD board and checking downstream loads, the cabinet returned to normal service.

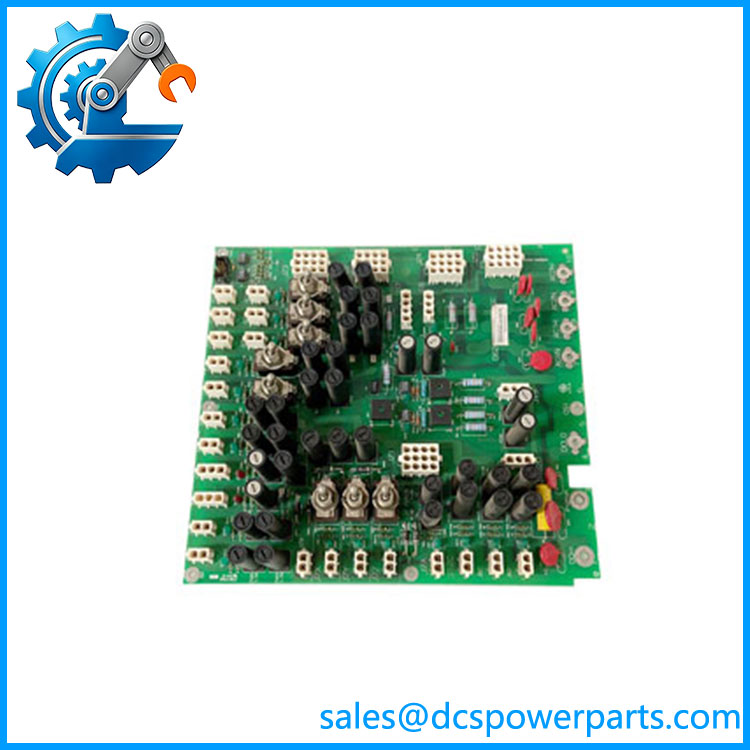

DS200TCPDG2BEC
Related Products
- GE DS200TCPDG1BEC — Earlier TCPD power distribution board variant. Similar purpose within Mark V systems, but the complete suffix should be matched before replacement because hardware revisions may differ.
- GE DS200TCPSG1A — Mark V power supply board responsible for DC power conversion and supply functions. Used upstream of distribution hardware.
- GE DS200JPDFG1A — 125VDC power distribution board used in related turbine control power architectures. Applicable differences depend on cabinet design.
- GE IS200JPDDG1A — DC power distribution board associated with Mark VI turbine control environments. Used for newer architecture applications rather than direct Mark V substitution.
- GE DS200TCQAG1BEC — Mark V control board family used for control functions rather than power routing. Requires different troubleshooting methods.
- GE DS200TCRAG1ACC — Mark V relay output board. Controls external relay outputs and field devices, not cabinet power distribution.
- GE DS200TCEBG1A — Mark V protection-related board family used for turbine protective functions.
- GE IS200VPROH1B — Mark VI VPRO protection module used in newer turbine protection architectures.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Replacing the Board Without Checking Downstream Loads
A damaged TCPD board may be the result of a short circuit or overloaded branch, not the original fault.
How to avoid: Measure branch resistance, inspect connected cards, and verify fuse ratings before applying power.
⚠️ Confusing DS200TCPDG1 and DS200TCPDG2 Versions
The boards look similar, but revision differences can affect compatibility.
How to avoid: Match the complete part number, including DS200TCPDG2BEC, and compare cabinet documentation.
⚠️ Ignoring Fuse LED Diagnostics
The board provides individual fuse status indication, but technicians sometimes replace hardware before checking the available diagnostics.
How to avoid: Record failed fuse channels and confirm whether the fault follows the board or the connected load.
Frequently Asked Questions (FAQ)
What is the GE DS200TCPDG2BEC used for?
The GE DS200TCPDG2BEC is a Mark V Speedtronic power distribution board used to distribute protected DC power to turbine control system components.
Is the DS200TCPDG2BEC a power supply module?
No. It distributes power; it does not perform the primary AC-to-DC conversion function. The board manages branch distribution, fuse protection, and isolation.
What voltage does the DS200TCPDG2BEC handle?
The board is designed around a 125 VDC turbine control power distribution system.
How many fused outputs are available?
The board contains 36 fused circuits with LED indicators that allow technicians to identify fuse status during troubleshooting.
Can the directly replace DS200TCPDG1BEC?
Not automatically. Before replacement, confirm:
- Complete GE part number
- Revision level
- Cabinet wiring arrangement
- Input voltage configuration
- Connected loads
A similar board family does not always mean direct interchangeability.
What are common failure symptoms?
Typical symptoms include:
- Multiple control cards losing power
- Unexpected controller resets
- Missing I/O indications
- Blown fuse alarms
- Intermittent turbine cabinet faults
Is a refurbished suitable for turbine service?
A tested refurbished unit can be suitable when fuse circuits, LED indicators, connectors, PCB condition, and compatibility with the installed Mark V cabinet are verified before installation.
