Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | DS200TCPDG1BEC |
| Manufacturer | General Electric (GE) |
| Series | Mark V Speedtronic |
| Functional Acronym | TCPD |
| Product Type | Power Distribution Board |
| Primary Function | DC power distribution and circuit protection |
| PCB Coating | Normal coating |
| Functional Revision | B |
| Secondary Revision | E |
| Artwork Revision | C |
| Fuse Quantity | 36 |
| Fuse Status Indicators | 36 OK LEDs |
| Toggle Switches | 8 |
| Signal Wire Terminals | 4 |
| Connector | One 10-pin connector |
| Typical Application | Gas turbine, steam turbine, industrial drive control systems |
Application Scenarios & Pain Points
A power distribution board failure rarely looks like a power problem at first. Operators may see multiple alarms across unrelated cards, while technicians spend hours checking communication links and control processors.
Typical applications:
- Gas Turbine Control Systems: Provides protected DC power distribution for Mark V Speedtronic control cores, including turbine monitoring and control hardware.
- Steam Turbine Systems: Supports legacy turbine automation cabinets where stable power delivery is required for control processors and I/O assemblies.
- Industrial Power Generation: Used as a maintenance spare for installed GE Mark V systems that remain in operation.
- Turbine Refurbishment Projects: Helps extend the service life of existing Speedtronic cabinets without full control system replacement.
Field note: A plant reported random controller resets during turbine operation. The processor cards tested correctly, but voltage checks showed unstable distribution on several branch circuits. After replacing the TCPD board and confirming fuse paths, the control cabinet returned to normal operation.

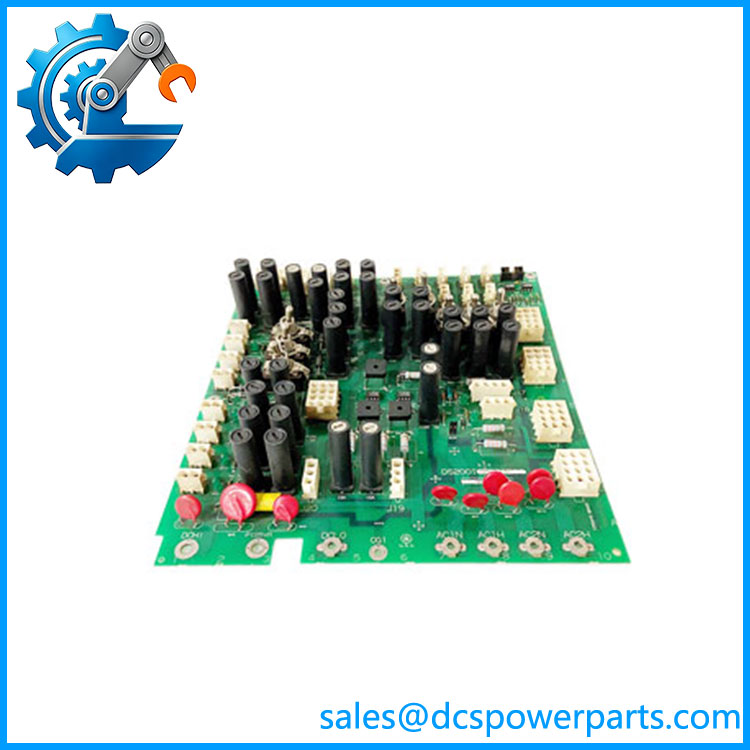

DS200TCPDG1BEC
Related Products
- GE DS200TCPDG1BCC — Earlier TCPD revision of the Mark V power distribution board. Functionally similar, but revision verification is required before substitution.
- GE DS200TCPDG1B — Base TCPD board family used for Mark V power distribution applications. Requires matching revision and cabinet configuration.
- GE DS200TCPSG1A — Power supply DC input board used within Mark V systems. Handles incoming DC supply functions rather than branch distribution.
- GE DS200TCTGG1AFF — Mark V Simplex Trip Board. Used for turbine protection logic and trip-related functions.
- GE DS200TCEBG1BAA — Common circuit board used in Mark V control architectures.
- GE DS200TCPAG1A — Turbine Control Processor Board family. Handles control processing functions rather than power distribution.
- GE IS200TBAIH1CCC — Mark VI-era terminal board used for signal interface applications. Suitable for newer GE turbine control platforms.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Assuming a Board Replacement Solves the Root Cause
A failed fuse or damaged distribution path may be caused by a downstream short circuit. Installing a replacement TCPD without checking loads can damage the new board.
How to avoid: Measure branch resistance, inspect connected cards, and verify field wiring before energizing.
⚠️ Revision Mismatch Between TCPD Boards
Mark V boards often look similar while containing revision differences that affect compatibility.
How to avoid: Match the complete DS200 number, including G1BEC suffix, and compare cabinet documentation.
⚠️ Ignoring Fuse and LED Diagnostics
The board contains individual fuse indicators, but technicians sometimes overlook them during troubleshooting.
How to avoid: Check each fuse status LED and verify incoming DC voltage before removing the board.
Frequently Asked Questions (FAQ)
What is the GE DS200TCPDG1BEC used for?
The DS200TCPDG1BEC is a TCPD power distribution board designed for GE Mark V Speedtronic turbine control systems. It distributes protected DC power to multiple control system circuits.
Is the DS200TCPDG1BEC a processor board?
No. It does not execute turbine control logic. Its role is power distribution and circuit protection for Mark V control hardware.
How many fuse circuits are available on the DS200TCPDG1BEC?
The board includes 36 fuse positions with corresponding OK LED indicators for monitoring fuse status.
Can the DS200TCPDG1BEC replace another TCPD board directly?
Only after checking:
- Full part number
- Revision level
- Cabinet location
- Voltage distribution design
- Connected loads
A similar-looking TCPD board may not match every Mark V installation.
What causes failures?
Common causes include:
- Short circuits on downstream cards
- Aging fuse holders
- DC supply problems
- Electrical surges
- Loose connector contacts
Does the require software configuration?
No. The board is hardware-based and does not contain application software. Hardware configuration and correct installation are the main considerations.
Is a refurbished suitable for turbine service?
A tested refurbished unit can be suitable when fuse circuits, LED indicators, connectors, power distribution paths, and board condition are verified before installation.
