GE DS200FSAAG1ABA Field Supply Gate Amplifier Board Product Description
Product Overview

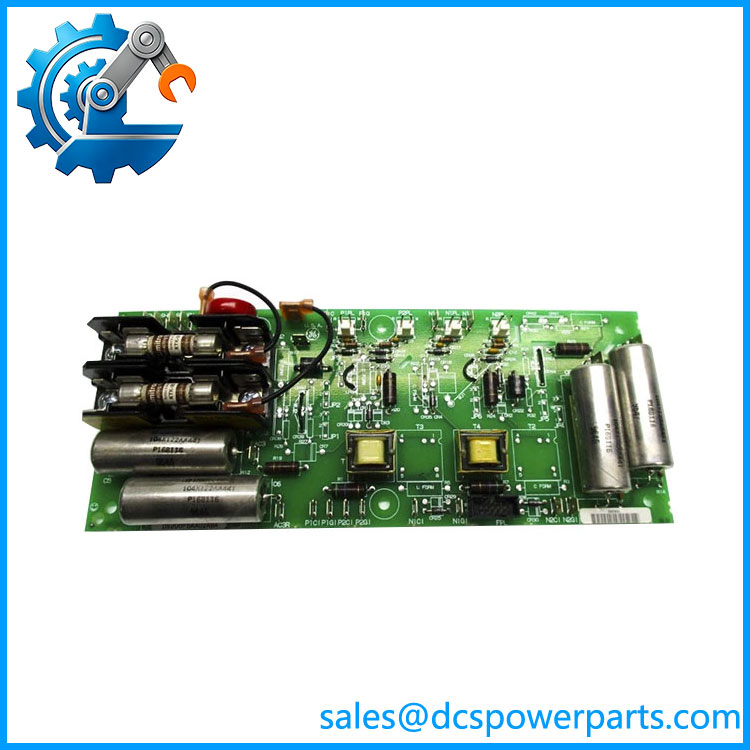

GE DS200FSAAG1ABA is a Field Supply Gate Amplifier Board developed for the GE Mark V Speedtronic control and drive system platform. As a dedicated field excitation interface board within the GE DS200 series, GE DS200FSAAG1ABA provides gate pulse amplification and control functions for silicon-controlled rectifiers (SCRs) used in field supply circuits. The board ensures that low-level control signals from the drive controller are amplified into reliable gate drive signals capable of controlling SCR switching devices in excitation and DC drive applications.
The GE DS200FSAAG1ABA belongs to the Mark V DS200 drive control board family and uses the functional acronym FSAA (Field Supply Amplifier). Within GE drive architectures, DS200FSAAG1ABA operates as an interface between the control electronics and the field power circuit, providing phase control and amplification functions for field supply SCR devices. It plays an important role in maintaining stable excitation output and accurate field current regulation for GE industrial systems.
Designed for industrial environments requiring high reliability, GE DS200FSAAG1ABA features dedicated gate amplifier circuits, protective fuses, configurable jumpers, connectors, and test points. The board is used in GE Mark V drive and excitation applications where precise SCR control and dependable field power regulation are required.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | DS200FSAAG1ABA |
| Manufacturer | General Electric (GE) |
| Product Series | GE Mark V DS200 |
| Product Type | Field Supply Gate Amplifier Board |
| Functional Acronym | FSAA |
| Main Function | SCR gate pulse amplification and field supply control |
| Application | GE drives, excitation systems, turbine control systems |
| SCR Control | Phase control of field supply SCR devices |
| PCB Coating | Normal protective coating |
| Functional Revision | Revision A |
| Secondary Revision | Revision B |
| Artwork Revision | Revision A |
| Connectors | P1PL, P2PL, N1PL, N2PL |
| Control Connector | 10-pin connector |
| Protection Components | Two fast-acting fuses |
| Configuration | Jumper selectable settings |
| Diagnostic Features | Test points for troubleshooting |
| Installation | GE drive cabinet PCB mounting |
| Compatible Platform | GE Mark V Speedtronic systems |
Main Features and Advantages
SCR Gate Pulse Amplification
The primary function of GE DS200FSAAG1ABA is to amplify field supply gate signals from the control system so they can properly trigger SCR power devices. Accurate SCR firing control is essential for maintaining stable field current and generator excitation performance. DS200FSAAG1ABA ensures reliable signal strength and timing between the controller and power semiconductor section.
Field Excitation Control Interface
GE DS200FSAAG1ABA provides the interface between the low-voltage control electronics and the high-power field supply circuit. By processing gate control signals and transferring them to SCR devices, the board supports accurate regulation of excitation output and field current.
DS200FSAAG1ABA
SCR Phase Control Capability
The board supports phase-controlled operation of SCR devices used in field supply circuits. This allows the GE control system to adjust excitation power according to operating conditions, improving generator voltage regulation and system stability.
Integrated Protection Design
DS200FSAAG1ABA includes protective components such as fast-acting fuses to help protect the board and connected circuits from electrical faults. These protection features improve system reliability and reduce the risk of damage caused by abnormal current conditions.
Flexible Configuration Adjustment
The board includes jumper settings that allow engineers to configure operating parameters according to different system requirements. This flexibility simplifies commissioning, replacement, and maintenance of GE drive and excitation systems.
Easy Troubleshooting and Maintenance
With onboard test points and clearly defined connectors, GE DS200FSAAG1ABA allows technicians to perform signal checks and fault diagnosis more efficiently. This reduces troubleshooting time and improves maintenance efficiency.
Reliable Mark V Compatibility
As an original GE Mark V DS200 series component, DS200FSAAG1ABA is designed for integration into existing Speedtronic drive and excitation systems. It provides a practical replacement solution for maintaining legacy GE automation equipment.
Industrial-Grade Construction
The board is designed for continuous operation inside industrial control cabinets, supporting applications exposed to electrical noise, temperature changes, and long operating cycles.
Application Areas
Generator Excitation Systems
GE DS200FSAAG1ABA is widely used in generator excitation systems where accurate field current control is required. The board provides reliable SCR gate control to maintain stable generator output voltage.
Gas and Steam Turbine Control Systems
GE Mark V Speedtronic systems are commonly used in turbine applications. DS200FSAAG1ABA supports excitation and drive-related functions required for reliable turbine-generator operation.
Industrial DC Drive Systems
DC drive systems require accurate field supply regulation for motor speed and torque control. GE DS200FSAAG1ABA provides SCR gate amplification for field power circuits used in industrial motors.
Power Generation Facilities
Power plants depend on reliable excitation and drive control hardware. DS200FSAAG1ABA helps maintain stable operation of generators and auxiliary drive equipment.
Heavy Manufacturing Industries
Steel mills, paper plants, and large manufacturing facilities use DC motors requiring precise field control. The board supports reliable operation of these high-power drive systems.
Industrial Retrofit Projects
For facilities operating legacy GE Mark V systems, GE DS200FSAAG1ABA is commonly used as a replacement component during repair, refurbishment, and lifecycle extension projects.
