Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Control Technology Inc. (CTI) |
| Model | 2500-RBC |
| Part Number | 901E-2500-RBC |
| Product Family | CTI 2500 Series |
| Product Type | PROFIBUS Remote Base Controller |
| Network | PROFIBUS-DP |
| Node Type | PROFIBUS-DP Remote I/O Slave |
| Communication Speed | 9.6 Kbaud to 12 Mbaud |
| Maximum Cable Distance | Up to 1200 m at 9.6 Kbaud; approximately 100 m at 12 Mbaud |
| Compatible Bases | CTI/Siemens 4-, 8-, and 16-slot bases |
| I/O Compatibility | CTI and compatible Siemens discrete and analog I/O |
| Replacement Reference | Siemens 505-6870 RBC |
| Configuration | PROFIBUS GSD file / COM PROFIBUS configuration |
| Diagnostics | LED error-code and station-address indication |
| Input Supply | 24 VDC commonly specified |
| Application | Remote I/O, process control, machine automation |
The strongest available product references identify 901E-2500-RBC as the CTI PROFIBUS Remote Base Controller and state that it supports CTI/Siemens 4-, 8-, and 16-slot bases, with the GSD file supplied for PROFIBUS configuration.
Some secondary listings publish contradictory environmental and electrical specifications. I would not use those values as acceptance criteria without the applicable CTI documentation for the installed revision.
Application Scenarios & Pain Points
A legacy remote-I/O rack becomes expensive when a simple communications problem is treated as a reason to replace every installed I/O module. The 2500-RBC takes a different approach: retain the compatible I/O base and expose it as a PROFIBUS-DP remote station.
- Legacy PLC modernization: Connect existing CTI 2500 or compatible 505 I/O bases to a PROFIBUS-DP master without replacing every field I/O card.
- Distributed process I/O: A remote rack can be positioned closer to valves, motors, switches, and transmitters, reducing long individual control wiring runs.
- Siemens 505 migration: The unit is documented as a replacement for the Siemens 505-6870 Remote Base Controller.
- Factory automation: Useful where existing discrete and analog I/O needs to remain in service while the supervisory controller communicates over PROFIBUS.
Field note: PROFIBUS faults are frequently blamed on the remote controller when the real problem is station addressing, termination, connector condition, or an incorrect GSD configuration. Check the physical bus first.
Brief Field Case
A plant retaining several legacy I/O racks may only need to replace the remote-base interface rather than migrate every I/O point. Before swapping hardware, record the PROFIBUS station address and existing I/O configuration; otherwise, the replacement may communicate electrically but fail to match the PLC’s expected process image.

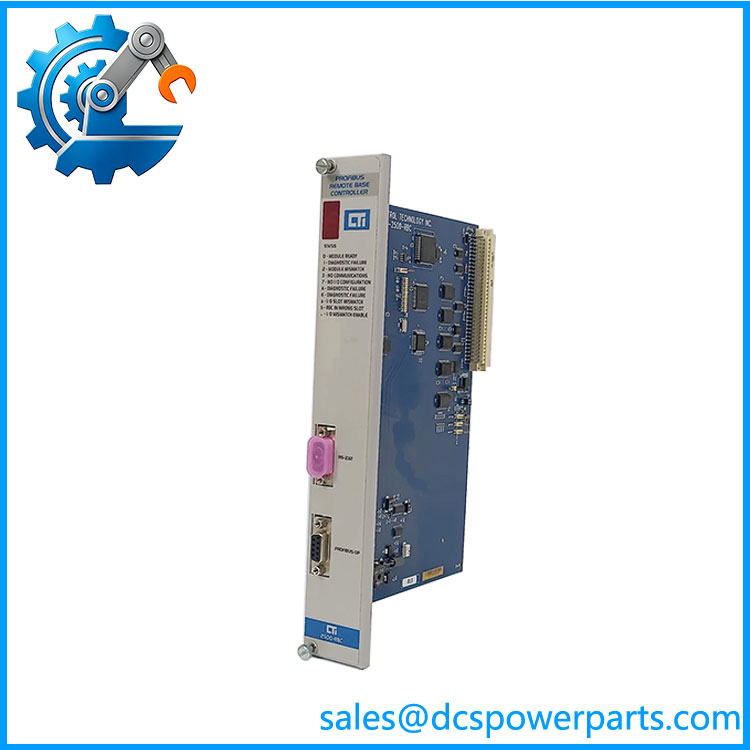

2500-RBC
Related Products
- CTI 2500-RBC 901E-2500-RBC — The subject remote-base controller. It interfaces compatible 2500/505 I/O bases to PROFIBUS-DP.
- Siemens 505-6870 — The legacy Remote Base Controller for which the CTI 2500-RBC is documented as a direct replacement.
- CTI 2500 Series I/O Bases — 4-, 8-, and 16-slot base configurations supported by the RBC. The base determines how many compatible I/O modules can physically be installed.
- CTI 2500 Series Digital I/O Modules — Discrete input/output cards that can operate in the remote base; the RBC provides the PROFIBUS interface rather than the field I/O itself.
- CTI 2500 Series Analog I/O Modules — Analog signal modules supported by the remote-base architecture. Their channel characteristics remain independent of the RBC.
- Siemens SIMATIC 505 I/O Modules — Legacy I/O hardware that can be used in supported base configurations. Compatibility should be checked module by module rather than assumed from the family name.
- PROFIBUS-DP Master Interface — Required on the PLC/controller side to communicate with the 2500-RBC as a remote slave.
- PROFIBUS GSD File — Required configuration data for integrating the RBC into the PROFIBUS engineering environment.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — PROFIBUS station address mismatch
The RBC must use the station address expected by the PROFIBUS master.
How to avoid it: Record the original address before removing the old unit. After replacement, verify the address setting and confirm that the PLC configuration matches it.
WARNING 2 — Incorrect GSD or I/O configuration
The remote controller may appear online while the PLC process image is still wrong.
How to avoid it: Load the correct GSD information and reproduce the actual installed I/O module sequence. Do not configure the rack merely according to the number of occupied slots.
WARNING 3 — Bus speed and cable length are related
The documented communication range extends from 9.6 Kbaud to 12 Mbaud, but the permissible cable distance changes substantially with bus speed.
How to avoid it: Check the PROFIBUS segment length, cable type, termination, connector condition, and selected baud rate together. A 12 Mbaud configuration cannot simply be treated like a low-speed long-distance segment.
Frequently Asked Questions (FAQ)
What is the CTI 2500-RBC 901E-2500-RBC?
It is a PROFIBUS-DP Remote Base Controller for the CTI 2500 Series and compatible Siemens/505 I/O architecture. It allows an I/O base to function as a PROFIBUS remote slave.
Is CTI 2500-RBC a PLC CPU?
No. It is a remote I/O interface/controller, not the primary PLC CPU.
The PLC or PROFIBUS master executes the control program. The RBC handles the exchange of the remote rack’s I/O data over PROFIBUS.
Is 2500-RBC a replacement for Siemens 505-6870?
Yes. CTI documentation references identify the 2500-RBC as a direct replacement for Siemens 505-6870 RBC.
That does not eliminate the need to verify the installed base, I/O modules, PROFIBUS address, and configuration.
What PROFIBUS speed does the 2500-RBC support?
Published specifications identify a range of 9.6 Kbaud to 12 Mbaud.
The usable cable distance decreases as baud rate increases, so the segment design must be checked rather than selecting the highest available speed automatically.
Can the 2500-RBC work with existing CTI and Siemens I/O modules?
Available references state that the controller supports CTI and Siemens discrete and analog I/O modules and can be installed on 4-, 8-, and 16-slot bases.
For a plant retrofit, I would still verify each installed I/O module against the applicable compatibility list before declaring the rack migration complete.
What should I check before replacing a 2500-RBC?
At minimum:
- Exact 901E-2500-RBC identification.
- Existing PROFIBUS station address.
- Master PLC type and PROFIBUS configuration.
- GSD file/version.
- Base size and installed I/O sequence.
- PROFIBUS baud rate.
- Cable length and termination.
- Existing diagnostic LED status.
- Firmware/hardware revision, if available.
- Physical condition of the PROFIBUS connector and terminals.
What should I request when buying a replacement CTI 2500-RBC?
For a production spare, request the exact 2500-RBC / 901E-2500-RBC part number, clear nameplate photographs, hardware revision, PROFIBUS communication test results, LED/diagnostic verification, connector inspection, condition statement, and written warranty.
For an older PROFIBUS installation, I would also ask whether the seller can document a live PROFIBUS communication test rather than simply reporting that the module powers up.
