Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AAP3798102-00140 |
| Manufacturer | Cameron / Ingersoll Rand |
| Product Series | Maestro |
| Product Type | Compressor Control Module / Operator Interface |
| Main Application | MSG Turbo-Air Centrifugal Compressor Systems |
| Display Interface | Color LCD Operator Panel |
| Control Functions | Compressor monitoring, alarms, diagnostics, automatic start/stop |
| I/O Expansion | Supports expandable I/O modules |
| Communication | Industrial communication interfaces (system dependent) |
| Data Functions | Event history, diagnostics, data logging |
| Service Interface | USB service access for software updates and records |
| Cooling Control | Integrated cooling water control functions |
| Installation | Compressor control cabinet mounting |
| Typical Equipment | Centrifugal air compressors |
Application Scenarios & Pain Points
A compressed air system outage is rarely just a controller issue. Production lines depend on stable air supply, and a failed compressor control interface can delay restart because technicians need to confirm both hardware and operating parameters.
Typical applications:
- Industrial Centrifugal Compressors: Used as the primary operator interface and control unit for compressor packages requiring pressure regulation, sequencing, and equipment diagnostics.
- Oil & Gas Facilities: Applied in compressor stations where reliable monitoring of compressor operating conditions, alarms, and trips is required.
- Manufacturing Plants: Supports compressed air systems used by large production facilities where automatic start/stop and load management reduce operator workload.
- Process Industries: Used in chemical, refining, and utility applications where compressor availability directly affects plant operation.
Field note: A manufacturing facility experienced repeated compressor startup failures after a control panel fault. The compressor motor and mechanical section checked normal. After replacing the Maestro control module and restoring the saved configuration, the unit returned to service without major mechanical intervention.

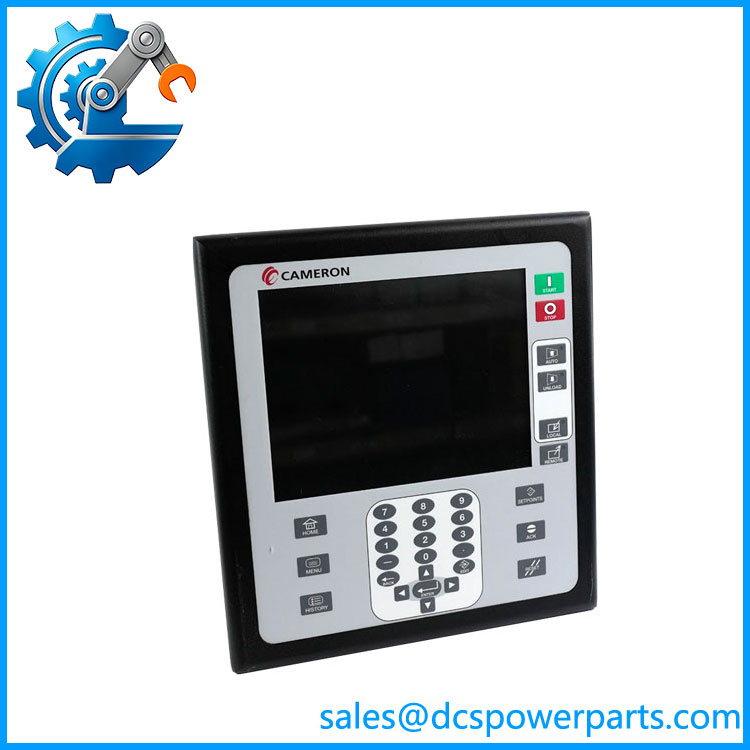

AAP3798102-00140
Related Products
- Cameron AAP3798102-00130 — Related Maestro control module variant. Similar compressor control family, but configuration and hardware revision must be verified before substitution.
- Cameron AAP3798102-00131 — Maestro I/O expansion module. Provides additional signal handling capability and supports compressor automation expansion.
- Cameron AAP3798102-00037 — Older control panel/operator interface variant used in Cameron compressor systems. Requires compatibility confirmation before replacement.
- Ingersoll Rand MSG Turbo-Air System Controller — Complete compressor control platform where the AAP3798102-00140 operates as the user and control interface component.
- Cameron Maestro Universal I/O Modules — Expansion modules supporting additional analog and digital signals for compressor packages.
- Ingersoll Rand Centrifugal Compressor Control Assemblies — Supporting hardware family used for compressor monitoring, sequencing, and protection functions.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Replacing the Module Without Saving Configuration Data
A new control unit may power up but lack compressor-specific parameters, alarm settings, and operating limits.
How to avoid: Upload and archive the existing configuration before removing the original module.
⚠️ Ignoring Firmware Compatibility
Different Maestro revisions may contain different software features or communication behavior.
How to avoid: Record firmware version, application software revision, and compressor package model before installation.
⚠️ Assuming All AAP3798102 Modules Are Direct Substitutes
The part family contains different control and I/O functions. Similar labels do not guarantee identical operation.
How to avoid: Verify the complete part number, connector layout, terminal wiring, and system documentation.
Frequently Asked Questions (FAQ)
What is the Cameron AAP3798102-00140 used for?
The Cameron AAP3798102-00140 is a Maestro control module used in Ingersoll Rand MSG Turbo-Air centrifugal compressor systems. It provides operator interface, compressor monitoring, diagnostics, and control functions.
Is AAP3798102-00140 a PLC CPU?
Not in the traditional PLC sense. It is a dedicated compressor control module that combines HMI functions, control management, diagnostics, and compressor-specific functions.
What equipment uses the AAP3798102-00140?
Typical applications include:
- MSG Turbo-Air centrifugal compressors
- Industrial compressed air systems
- Process plant compressor packages
- Utility air systems
Can replace another Cameron Maestro module?
Only after checking:
- Complete part number
- Firmware revision
- Compressor model
- I/O configuration
- Existing application parameters
Mechanical fit alone does not confirm compatibility.
What are common failure symptoms of this module?
Typical symptoms include:
- Blank or abnormal display
- Loss of compressor control communication
- Missing alarm history
- Failed automatic start sequence
- Incorrect operating data display
Does replacing the require programming?
Yes. The module normally requires the correct compressor application configuration and system settings after replacement.
Is a refurbished Cameron suitable for service?
A tested refurbished unit can be suitable when display operation, control functions, communication interfaces, configuration compatibility, and compressor application requirements are verified before installation.
