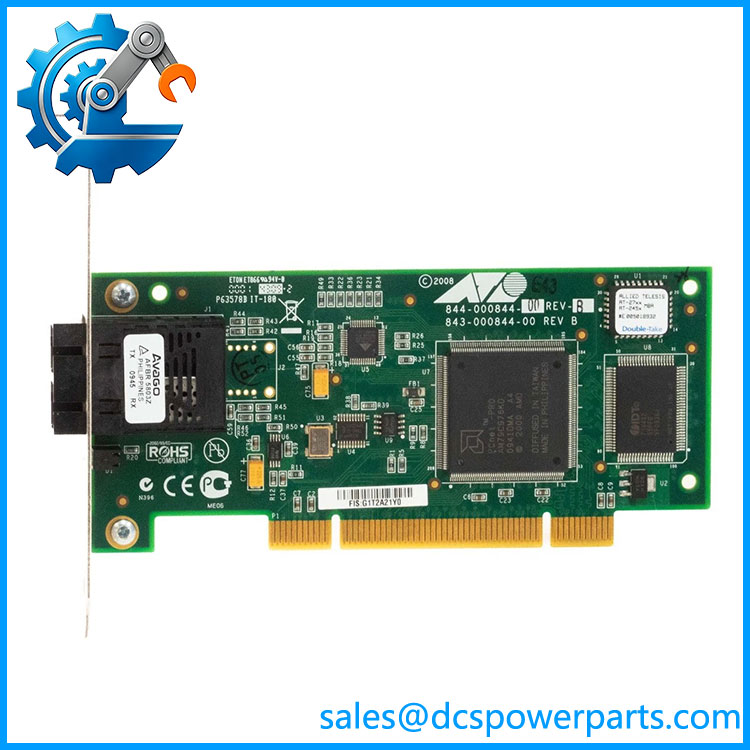

TRICONEX AT-2701FX 843-000844-00 REVD Product Description
Product Overview
TRICONEX AT-2701FX 843-000844-00 REVD is an industrial fiber optic Ethernet network interface module designed for Triconex safety instrumented systems (SIS) and critical control applications. Manufactured by TRICONEX (Schneider Electric), TRICONEX AT-2701FX 843-000844-00 REVD provides a high-speed optical communication interface between Triconex controllers, engineering workstations, supervisory systems, and external industrial networks. It is primarily used where reliable, electrically isolated, and interference-resistant communication is required in safety-critical automation environments.
The TRICONEX AT-2701FX 843-000844-00 REVD is based on Fast Ethernet 100BASE-FX fiber communication technology, providing stable data exchange through optical fiber links. Compared with traditional copper Ethernet communication, TRICONEX AT-2701FX 843-000844-00 REVD offers superior immunity against electromagnetic interference, ground potential differences, and long-distance transmission challenges, making it highly suitable for refineries, chemical plants, power stations, offshore facilities, and other demanding industrial environments.
As an important communication component within the Triconex safety control ecosystem, TRICONEX AT-2701FX 843-000844-00 REVD supports reliable integration between safety controllers and higher-level automation networks. It enables real-time data communication for system monitoring, engineering configuration, diagnostics, and control information exchange while maintaining the high availability requirements expected from Triconex fault-tolerant safety systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AT-2701FX 843-000844-00 REVD |
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Type | Fiber Optic Ethernet Network Interface Module |
| Application Platform | Triconex Safety Instrumented System (SIS) |
| Communication Standard | IEEE 802.3u 100BASE-FX Fast Ethernet |
| Communication Speed | 100 Mbps |
| Transmission Medium | Multimode optical fiber |
| Fiber Interface | Optical fiber Ethernet interface (model dependent) |
| Communication Mode | Full duplex Ethernet communication |
| Network Function | Controller network communication, engineering access, system integration |
| Bus Interface | PCI-based network interface architecture |
| Typical Transmission Distance | Up to approximately 2 km with suitable multimode fiber |
| Power Supply | System backplane supplied |
| Installation Method | Triconex system rack/module installation |
| Operating Temperature | 0°C to +60°C typical |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 10% to 90% RH, non-condensing |
| Application Environment | Industrial automation, SIS, process control systems |
Main Features and Advantages
TRICONEX AT-2701FX 843-000844-00 REVD provides a 100 Mbps Fast Ethernet fiber communication interface designed for industrial control networks. The optical transmission method enables stable and high-quality data exchange between Triconex systems and external network devices, especially in applications where communication reliability and signal integrity are critical.
One of the key advantages of TRICONEX AT-2701FX 843-000844-00 REVD is its fiber optic communication capability. Unlike copper Ethernet interfaces, fiber links are immune to electromagnetic interference generated by motors, high-voltage equipment, variable frequency drives, and industrial machinery. This makes TRICONEX AT-2701FX 843-000844-00 REVD highly suitable for complex industrial environments.
AT-2701FX
TRICONEX AT-2701FX 843-000844-00 REVD enables Triconex safety controllers to communicate with supervisory computers, operator stations, engineering tools, and industrial network systems. It provides an important communication bridge for SIS monitoring, configuration management, and operational data exchange.
Designed for critical automation applications, TRICONEX AT-2701FX 843-000844-00 REVD supports stable operation in continuous-duty environments. The module is engineered to meet the reliability expectations of safety control systems, helping reduce communication failures and improve overall system availability.
TRICONEX AT-2701FX 843-000844-00 REVD can be integrated into existing Triconex installations, providing a practical solution for system expansion, communication upgrades, and replacement of legacy network interface components.
Through integration with Triconex diagnostic tools, TRICONEX AT-2701FX 843-000844-00 REVD allows maintenance personnel to monitor communication status, identify network issues, and perform troubleshooting efficiently, reducing system downtime.
Application Areas
TRICONEX AT-2701FX 843-000844-00 REVD is widely used in industrial safety systems and automation networks requiring dependable fiber communication.
In oil and gas facilities, TRICONEX AT-2701FX 843-000844-00 REVD is commonly applied in emergency shutdown systems (ESD), fire and gas systems, compressor protection systems, and process safety networks. It provides reliable communication between Triconex safety controllers and engineering or supervisory platforms.
In petrochemical and chemical processing plants, TRICONEX AT-2701FX 843-000844-00 REVD supports communication infrastructures where continuous operation and high fault tolerance are essential. Optical communication helps maintain stable data transmission in environments containing strong electrical interference.
In power generation facilities, TRICONEX AT-2701FX 843-000844-00 REVD is used for safety control communication, turbine protection systems, boiler protection systems, and auxiliary equipment monitoring networks.
In offshore platforms and marine energy installations, TRICONEX AT-2701FX 843-000844-00 REVD provides reliable fiber communication between distributed control locations and safety systems, supporting operation in harsh environmental conditions.
In industrial manufacturing plants, TRICONEX AT-2701FX 843-000844-00 REVD helps connect safety controllers with SCADA systems, operator stations, and plant-level automation networks, improving centralized monitoring and operational efficiency.
