ALSTOM UT150-1 C0201500 | Alspa CE2000 CPU and F8000 Network Interface

Description

Technical Specifications

The most useful technical reference identifies UT150-1 C0201500 specifically as a CE2000 CPU for 1 Mbps copper WorldFIP and states that the module combines F8000 network coupling, management of 16 I/O modules, and local control processing.

Product Introduction

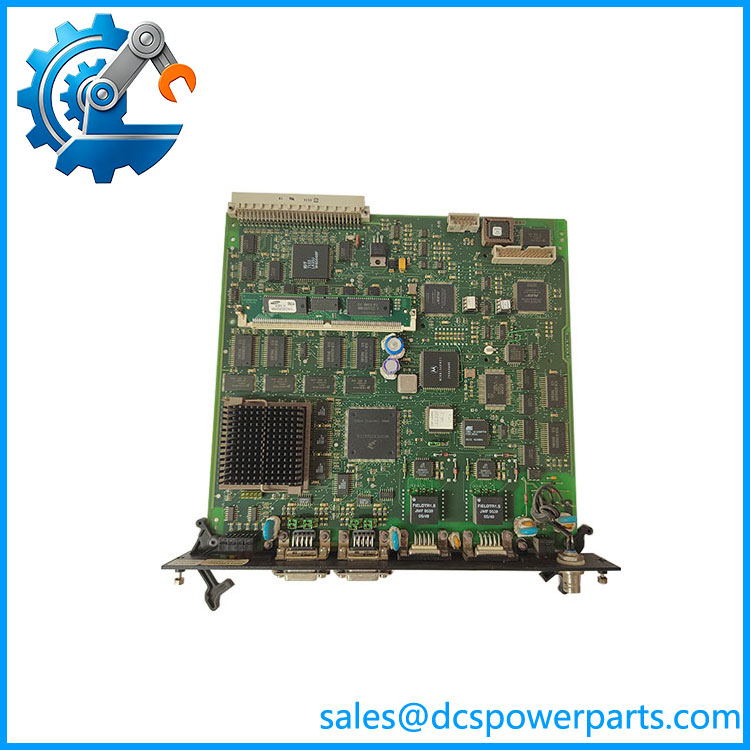

The ALSTOM UT150-1 C0201500 is a processing unit for the Alspa CE2000 control platform. Unlike several secondary listings that describe the UT150-1 as a generic PID controller, temperature controller, or modern DCS I/O card, the strongest available part-specific documentation identifies this exact UT150-1 as a CE2000 CPU.

The ALSTOM UT150-1 performs three main system functions: it couples the CE2000 controller to the F8000 network, manages up to 16 associated input/output modules and their processing, and executes local control functions. Internally, it is built around a Motorola 68040 processor operating at 33 MHz.

A particularly important identification point is the -1 suffix. The is intended for WorldFIP copper at 1 Mbps. The technical reference also states that should be used together with UT129C-1 on the same WorldFIP network, while UT129C-1 itself should not be mixed with on the same network.

UT150-1

Main Features & Field Considerations

processing

e is a genuine processing component of t000 architecture, not simply a field-interface board. Its CPU executes local control functions while managing the associated I/O subsystem.

WorldFIP communication

The module is specifically designed for 1 Mbps WorldFIP over copper. This is one of the most important compatibility parameters when replacing the unit.

F8000 network coupling

One of the three documented functions is coupling the with the F8000 network. This make an important communication and processing point within the overall Alspa control architecture.

Local I/O management

The module manages up to 16 I/O modules and their associated processing, so a processor replacement should be considered together with the installed I/O configuration.

Firmware matters

The available refurbishment documentation states that firmware version can depend on the customer’s requirements and should be specified when ordering. For a plant replacement, matching firmware or restoring the correct application image is therefore more important than simply matching the board’s physical appearance.

Replacement Checks

Before replacing an , verify:

1. Model:
2. ALSTOM code: C0201500
3. WorldFIP medium: copper
4. WorldFIP speed: 1 Mbps
5. Existing firmware version
6. /CE3000 system configuration
7. Connected I/O modules
8. F8000 network configuration
9. Application/control program
10. Hardware revision
11. Associated WorldFIP nodes
12. Existing parameter/configuration backup

Do not assume that a or another -family processor is a drop-in substitute. The exact network implementation and firmware should be checked first.

Important Specification Caution

There is substantial misinformation around on secondary websites. Some pages describe it as a local operator unit, while others assign PID control, 24 VDC input, analog I/O, Modbus, or even GE Mark VI/VIe compatibility. Those claims are inconsistent with the part-specific documentation.

For this exact part, I would therefore not publish specifications such as 8 analog inputs, 4 analog outputs, 24 VDC supply, Modbus RTU, IEC 61850, Mark VI compatibility, or IP65 protection without a separate original ALSTOM document proving that those specifications apply e C0201500 variant.

Procurement Note

For procurement, use the complete identification:

M — C0201500 — CPU — 1 Mbps WorldFIP Copper

The C0201500 code is particularly useful because it distinguishe from other -family hardware. The most reliable available documentation also confirms the 68040/33 MHz processor, 1 Mbps copper WorldFIP interface, coupling, and 16-module I/O management.

For an installed system, I would prioritize exact hardware revision + firmware + WorldFIP configuration + application backup over generic claims that the replacement is simply “compatible with ALSTOM DCS.”
