Description
Product Overview

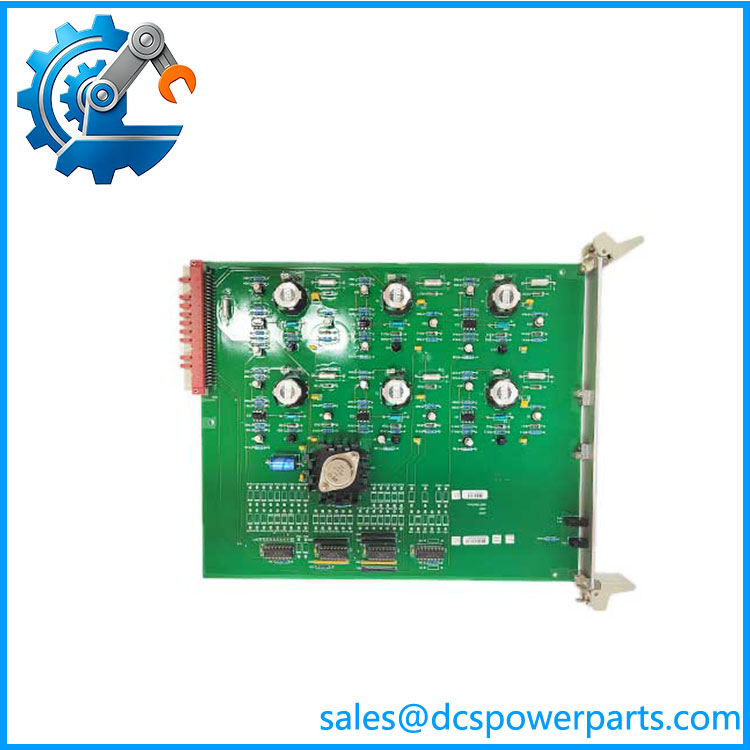

The ALSTOM N897066510E N897066010M AOVD N897066000A is a legacy ALSTOM analog-output assembly identified by the functional designation AOVD. Available product indexes classify this group as an analog-output module, placing it on the output side of the control architecture rather than in the central processing or diagnostic layer. The multiple identifiers should be retained when sourcing a replacement because they appear together in ALSTOM product references and may represent different assembly, PCB, or material-level designations.
At the control-system level, the ALSTOM N897066510E receives a commanded value from the host control architecture and provides the corresponding analog signal to downstream equipment. That signal may be used for continuous control of valves, drives, regulators, excitation equipment, or other analog devices, depending on the installed application. A secondary technical source describes the AOVD family as an analog-output function and cites common industrial signal formats such as 4–20 mA, 0–20 mA, and 0–10 V; those values should be regarded as application-dependent rather than guaranteed for every N897066510E assembly.
The ALSTOM AOVD N897066000A is therefore best treated as a system-specific analog-output card, not a generic universal analog module. This distinction matters during a legacy replacement because output range, channel assignment, load requirements, scaling, isolation, and rack configuration can all affect interchangeability. Public listings also contain contradictory descriptions, including claims that the board is a generic interface module or even a programmable IEC 61131-3 controller. Those claims are not consistent with the stronger AOVD/analog-output identification and should not be used as procurement specifications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM |
| Primary Part Number | N897066510E |
| Associated Part Number | N897066010M |
| Functional Designation | AOVD |
| Assembly Reference | N897066000A |
| Product Type | Analog Output Module / Analog Output Driver |
| Primary Function | Analog signal output for field control |
| System Architecture | ALSTOM legacy control platform |
| Host Interface | System/backplane dependent |
| Output Type | Analog |
| Output Range | Application dependent; verify original documentation |
| Common Signal Formats | 4–20 mA, 0–20 mA, 0–10 V reported for the AOVD family; not confirmed for every configuration |
| Channel Count | Not reliably confirmed |
| Resolution | Not reliably confirmed |
| Accuracy | Not reliably confirmed |
| Isolation | Not reliably confirmed |
| Output Load | System/application dependent |
| Supply Voltage | Not reliably confirmed |
| Communication | Host/backplane dependent |
| Firmware | System dependent |
| Mounting | Rack/cabinet dependent |
| Condition | New Surplus, subject to inspection and functional testing |
Engineering caution: Public sources disagree substantially on the detailed electrical specification. One source suggests 4–8 digital channels and 1–2 analog outputs, while another describes the same identification as a generic interface board with unrelated RF specifications. Those figures should not be presented as confirmed characteristics of the AOVD assembly.
N897066510E
Related Products
- ALSTOM N895609510K / N895609010R / E32OUT / N895609100P — Digital-output module. It handles discrete ON/OFF commands, whereas AOVD provides continuous analog output.
- ALSTOM N895600512D / N895600051C / ECPU_1 / N895600200Q — Central processor assembly. It performs control-system processing and supplies the logic that ultimately determines output commands.
- ALSTOM N897093511D / N897093051D / DIAGNOSTICA / N897093400H — Diagnostic/data-acquisition module. It supports monitoring and fault analysis rather than analog field output.
- ALSTOM N897163510Q / N897163050Q / MODEM / N897163100U — Communication/modem assembly. It handles external communication functions rather than analog output generation.
- ALSTOM MLU VER.A01 — Main Logic Unit. It provides central logic functions in another legacy ALSTOM control architecture and is not a direct AOVD replacement.
- ALSTOM 730475-D / ELEMENTS-F2 — Dedicated turbine controller with application-specific control functions and an integrated operator interface. AOVD may perform an output function within a larger control scheme, but it does not replace the turbine controller.
- ALSTOM 42011-106-00 A01 / ITC_VIOM_VIOC VER.A01 — VIOC I/O processing board. It belongs to the ITC/VIOM/VIOC architecture and has a different system role from AOVD.
- ALSTOM N897092520B / N897092057Y / TRENO / N897092500E — Related railway control module. It belongs to the broader legacy ALSTOM equipment family but should not be considered an analog-output substitute.
Frequently Asked Questions
1. What is ALSTOM N897066510E N897066010M AOVD N897066000A used for?
The available ALSTOM product references identify it as an AOVD analog-output module.
Its role is to provide analog control signals from the control architecture to downstream equipment. Depending on the installed application, those signals may control valves, drives, regulators, or other continuously variable devices.
2. Does AOVD support 4–20 mA and 0–10 V?
These signal types are reported for the AOVD family, including 4–20 mA, 0–20 mA, and 0–10 V.
However, I would not assume that one particular board supports every listed range. The actual output range must be checked against the board revision, wiring diagram, and host configuration.
3. How many analog output channels does have?
There is no sufficiently reliable primary specification confirming the channel count for this exact assembly.
Some secondary listings provide different channel configurations, which is a warning sign rather than useful confirmation. For procurement, use the original cabinet drawings and terminal assignments to establish the required channel count.
4. Can I hot-swap the AOVD module?
Do not assume hot-swap capability.
An analog output card may be directly connected to control valves or other process equipment. Removing it while energized can cause an output to drop, change state, or become undefined.
Use the approved maintenance procedure unless the exact ALSTOM system documentation explicitly permits energized replacement.
5. Will replacing AOVD erase my control logic?
Normally, no. AOVD is identified as an analog-output function rather than the central application processor.
The more immediate replacement concerns are:
- Output scaling
- Channel assignment
- Signal range
- Wiring
- Output state at startup
- Host configuration
- Field-device response
The application logic normally resides in higher-level processing hardware such as the ECPU/control architecture.
6. Does support firmware v3.1?
There is no reliable evidence establishing firmware v3.1 as a universal firmware version for this AOVD assembly.
For a replacement, compare the existing board revision and host-system software configuration. An output module that is electrically compatible can still create commissioning problems if its configuration or scaling differs.
7. How should I verify a New Surplus before installation?
For quality control, verify the complete identification:
- N897066010M
- AOVD
- N897066000A
Then check:
- PCB revision
- Connector and terminal condition
- Output-channel configuration
- Analog range
- Scaling
- Isolation requirements
- Load compatibility
- Rack/backplane compatibility
- Signs of corrosion or storage damage
- Power-up diagnostics
- Channel-by-channel output testing
Procurement judgment: The evidence strongly supports the identification of / N897066010M / AOVD / N897066000A as an ALSTOM analog-output module. The exact channel count, output ranges, resolution, isolation, and electrical ratings are not sufficiently established by reliable public documentation. For a plant-critical replacement, those parameters should be confirmed from the original ALSTOM drawings or the installed card before the spare is released for commissioning.
