Product Introduction

Allen-Bradley 2711-T6C20D Product Introduction

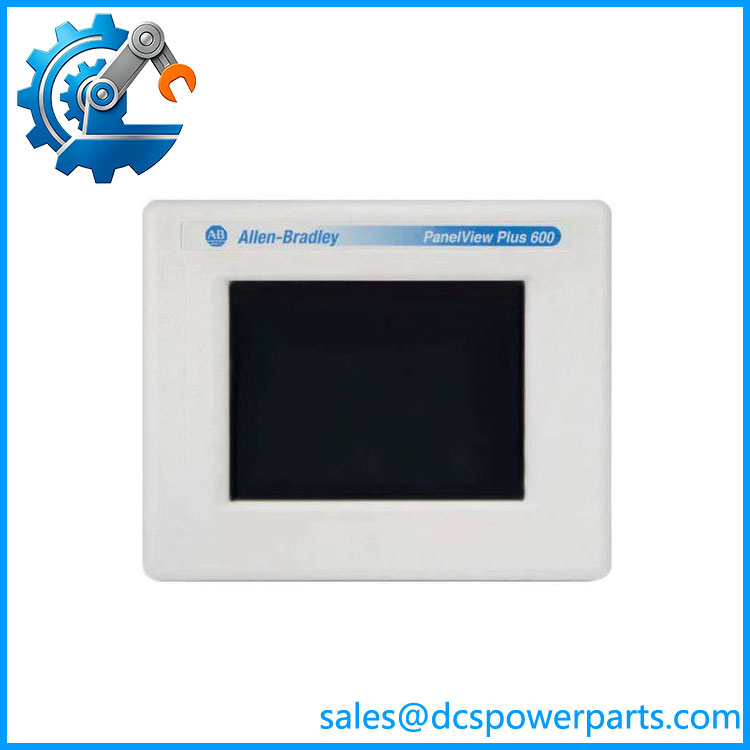

Allen-Bradley 2711-T6C20D is a PanelView Plus 600 operator terminal designed for industrial machine visualization and operator control applications. It provides a 6-inch color touchscreen interface, allowing operators to monitor process conditions, enter commands, and interact with PLC-based control systems through industrial communication networks.

The value of Allen-Bradley 2711-T6C20D is its compatibility with existing Rockwell Automation control architectures where replacing the entire HMI application is unnecessary. For plants maintaining installed PanelView Plus systems, this terminal can reduce migration effort. Verify application files, FactoryTalk View ME version, communication configuration, and firmware revision before replacement.

2711-T6C20D

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A failed operator terminal can stop production even when the PLC, drives, and field devices remain operational. This is common in packaging lines, assembly equipment, and process skids where operators depend on the HMI for alarms, recipe selection, and manual control functions. Replacing the screen hardware is only part of the job. The application runtime, communication drivers, and user configuration must also be restored correctly.

Typical Applications

• Manufacturing Automation – Machine operator stations for assembly lines, conveyors, and production equipment.
• Food and Beverage Processing – HMI monitoring for batching systems, filling equipment, and packaging machines.
• Water and Wastewater Systems – Local operator interfaces for pump stations, treatment skids, and process control panels.
• Material Handling Systems – Control panels for conveyors, sorting equipment, and automated warehouse machinery.

Technical Pitfalls to Avoid

1. Verify Application File Compatibility
   PanelView Plus terminals depend on the correct FactoryTalk View ME application file and runtime version. A hardware replacement without the matching project file may not restore operation.
2. Check Communication Driver Settings
   Ethernet/IP node configuration, PLC shortcuts, and communication paths must match the existing system. Incorrect settings can appear as PLC faults when the issue is only communication configuration.
3. Confirm Firmware Revision
   PanelView Plus platforms have firmware dependencies. Confirm the terminal firmware supports the installed application before commissioning.

Related Products

• Allen-Bradley 2711P-T6C20D
  PanelView Plus 6 600 terminal with updated hardware architecture. Used for newer applications requiring expanded memory and performance improvements compared with older PanelView Plus models.
• Allen-Bradley 2711-T10C20D
  PanelView Plus 1000 touch terminal with a larger display size. Suitable for applications requiring more operator information on screen.
• Allen-Bradley 2711-T5A16L1
  PanelView Plus 550-class operator terminal used for smaller machine interfaces with lower display requirements.
• Allen-Bradley 2711P-RP6A
  PanelView Plus logic module used with compatible PanelView Plus terminals for processing and communication functions.
• Allen-Bradley 2711P-RAAT7
  PanelView Plus replacement bezel assembly for compatible terminal maintenance.
• Allen-Bradley 2711P-BCP
  PanelView Plus communication-related accessory used for supporting network connectivity.
• Allen-Bradley CompactLogix Controllers
  Common PLC platforms integrated with PanelView Plus HMIs through Ethernet/IP communication.
• Allen-Bradley ControlLogix Controllers
  Higher-capacity PLC platforms frequently paired with PanelView Plus terminals in larger automation systems.
