Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1336-BDB-SP74C |
| OEM Assembly Number | 74101-399-53 |
| Product Type | Gate Driver PC Board / Drive Gate Power Board |
| Drive Family | 1336STG |
| Voltage Class | 460 VAC |
| Power Rating | 350 HP |
| Frame | F-Frame |
| Primary Function | Gate-drive control for the drive power stage |
| Installation | Internal 1336 drive chassis |
| Board Revision | C |
| Status | Legacy / discontinued |
| Related Board | 1336-BDB-SP75C / SP75D |
| Related Interface Board | 1336-MOD-L3 |
The strongest available identification is the combination 1336-BDB-SP74C / 74101-399-53 / 1336STG / 460 V / 350 HP / F-Frame. Rockwell-oriented spare-parts documentation lists SP74C as a gate-driver board with OEM number 74101-399-53, while current technical listings identify the same application as a 350 HP F-Frame board.
One caution: some product pages incorrectly describe SP74C as a generic “control module” and publish unrelated 220 V or 50 kHz specifications. Those specifications do not align with the more specific gate-driver identification. For procurement, treat SP74C as a 1336 gate-driver/power board, not as a standalone 220 V control module.
Application Scenarios & Pain Points
On a large 1336 drive, a gate-driver problem can look like a much bigger controller failure. The motor may refuse to start, the drive may report bus or switching-related faults, or the power section may fail to respond even though the operator interface remains active.
Typical Applications
- 1336STG Drives: The documented application is 460 VAC, 350 HP, F-Frame service.
- Large Motor Control: Appropriate for legacy high-power drive installations where the existing 1336 architecture remains part of the production system.
- Board-Level Drive Repair: Used when troubleshooting the gate-control portion of the inverter rather than replacing the entire drive.
- Maintenance Spare Inventory: A tested SP74C can be particularly useful for plants operating multiple compatible 1336STG drives, where an obsolete board failure can otherwise extend downtime.

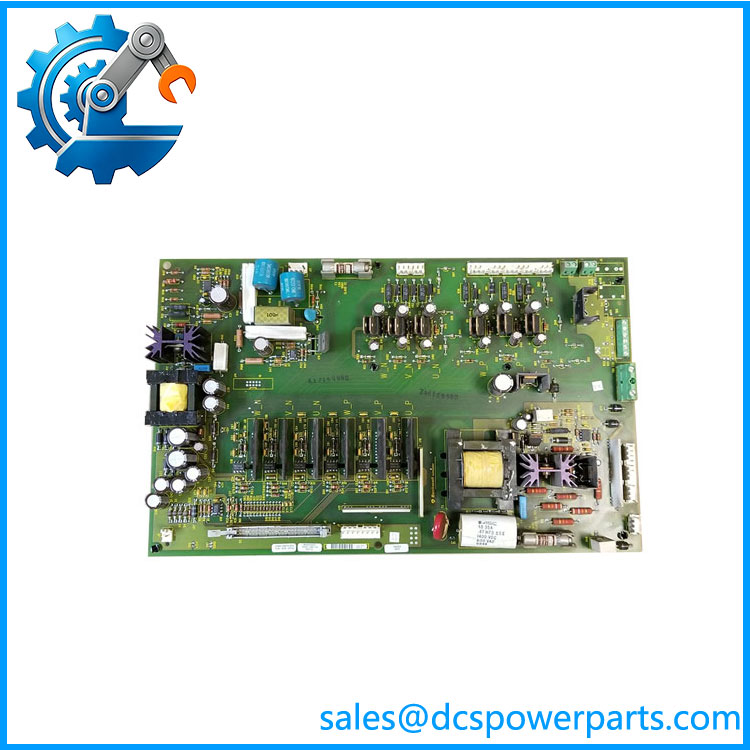

1336-BDB-SP74C
Field Case:
A 350 HP drive that suddenly loses output should not immediately be blamed on the gate board. The gate driver and power semiconductors are electrically tied together; a shorted IGBT or damaged gate circuit can cause repeated board failures. Well, technically, replacing the PCB is only half the repair if the original fault remains downstream.
Related Products
- 1336-BDB-SP75C — Closely related gate-driver board identified with OEM assembly 74101-399-54. It belongs to the same general 1336 gate-driver family but has a different application identification, so it should not be treated as an automatic substitute.
- 1336-BDB-SP75D — Later revision associated with the same 74101-399-54 assembly identification. Useful when investigating revision history around the /SP75C family.
- 1336-BDB-SP69C — Another 1336 gate-driver board, identified with 74101-169-99. It serves a different drive configuration despite the shared BDB family designation.
- 1336-BDB-SP69D — Later revision of the SP69 gate-driver assembly. Relevant for comparison when tracing board revisions, but not a direct replacement for .
- 1336-BDB-SP6C — Gate-driver board with OEM number 74103-244-56. It belongs to another 1336 power/application class and should be matched to the host drive before use.
- 1336-BDB-SP8C — Related 1336 gate-driver board identified as 74103-244-58. Same broad function, different application.
- 1336-BDB-SP8D — Later SP8 revision using the same 74103-244-58 identification. Useful when comparing revision changes in older 1336 drive repairs.
- 1336-MOD-L3 — Logic interface board used with certain 1336 drive configurations. It complements the gate-driver circuitry rather than replacing ; the two boards perform different jobs.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Confuse 350 HP F-Frame With Similar 1336 Boards
is identified for 1336STG, 460 VAC, 350 HP, F-Frame service. A different frame can require a different gate-driver board even when voltage and horsepower appear similar.
How to avoid it: Match drive family + voltage + horsepower + frame + complete BDB-SP number against the original drive nameplate and board.
⚠️ Do Not Trust Generic “Control Module” Specifications
Several low-quality listings describe as a 220 V control module with a 50 kHz output. Those figures conflict with the documented gate-driver-board identification.
How to avoid it: Procurement records should state Gate Driver PC Board, 1336-BDB-, 74101-399-53. Request an actual nameplate/PCB photograph from the supplier.
⚠️ Inspect the Power Stage Before Installing a Replacement
The gate-driver board directly interfaces with the drive’s switching section. A failed power transistor, shorted gate circuit, or abnormal DC bus can damage a replacement board at first energization.
How to avoid it: Lock out the drive, verify the DC bus is at zero volts, inspect the power semiconductors and gate connections, then perform controlled testing before returning the drive to service. The available installation guidance specifically warns technicians to verify zero DC-bus voltage before removing the board.
Frequently Asked Questions (FAQ)
What is Allen-Bradley 1336-BDB-?
It is a gate-driver/power board for an Allen-Bradley 1336 AC drive. The strongest available part identification is 74101-399-53, with the board associated with 1336STG, 460 VAC, 350 HP, F-Frame applications.
What drive does 1336-BDB- fit?
The documented application is a 1336STG, 460 V, 350 HP, F-Frame drive. That combination should be treated as the baseline compatibility check.
Is 1336-BDB- the same as 1336-BDB-SP75C?
No. They are closely related parts, but the available parts catalog identifies with 74101-399-53 and SP75C with 74101-399-54.
The different assembly numbers are enough reason to verify the host drive before substituting one for the other.
Is a complete VFD?
No. It is a gate-driver PCB/drive gate power board installed inside the 1336 drive. It does not constitute the complete AC drive, main control assembly, or motor-control system.
What should I request when purchasing a refurbished ?
Request:
- Actual PCB photographs.
- marking.
- 74101-399-53 identification.
- Host-drive model used for testing.
- Gate-driver functional test results.
- Connector and jumper inspection.
- Evidence that the power stage was checked.
- Visual inspection for heat damage, oxidation, and cracked solder joints.
- Test report.
- Warranty terms.
For a board this old, “tested” should mean more than a continuity check. Ask what was actually energized and measured.
Can I use another 1336-BDB board if the connector fits?
Do not assume so. The 1336 BDB family contains numerous application-specific assemblies. Even closely related boards can have different voltage, horsepower, frame, or drive-family requirements. The identification needs to be matched against the complete drive configuration before installation.
Is still a current product?
It is a legacy/discontinued component. Current technical listings identify it as discontinued while still describing the part as a 1336 gate-driver board for the 350 HP F-Frame application.
For procurement, preserve the complete / 74101-399-53 identification and require actual-board verification when sourcing surplus or refurbished stock.
