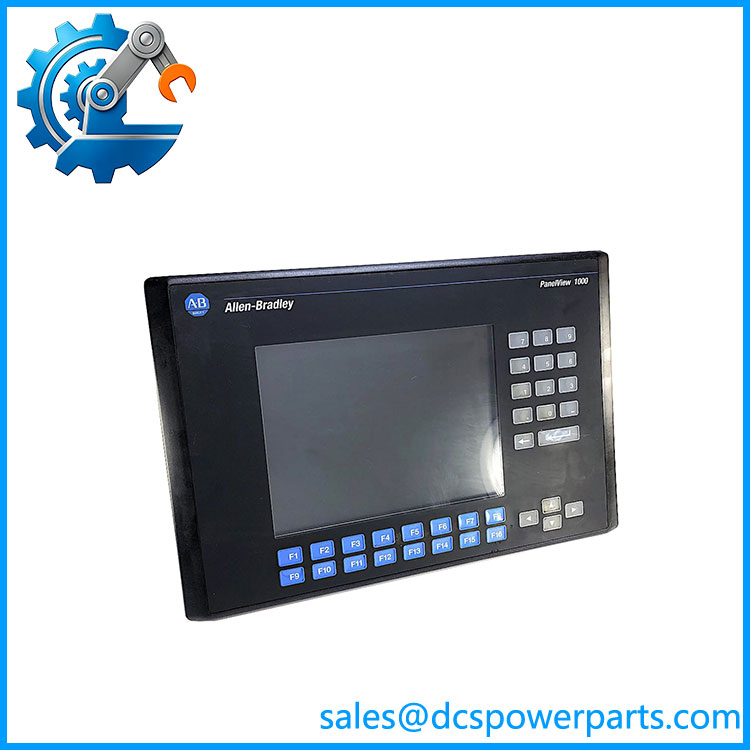

2711-K10C8
Brief Introduction
Core Advantages
• Pure keypad operation layout, resistant to oil, dust and moisture; reliable operation even when operators wear gloves
• 10-inch color TFT LCD, 640×480 resolution, supporting 256 colors for intuitive state discrimination
• Built-in DH+ data highway interface, directly connecting classic Allen‑Bradley controllers without extra communication adapters
• Independent RS232 port available for program download and printer connection for alarm hardcopy output
• Battery-backed real-time clock to timestamp events and fault records
• Field-replaceable CCFL backlight, convenient for on-site maintenance without whole unit replacement
• NEMA 4X / IP20 front panel protection, suitable for indoor cabinet installation in factory environments
• Runtime project developed and downloaded via PanelBuilder32 configuration software
• Sturdy metal front frame, strong vibration resistance for machinery and process industry scenarios
2711-K10C8
Technical Data
| Specification | Details |
|---|---|
| Model | 2711-K10C8 |
| Brand | Allen‑Bradley (Rockwell Automation) |
| Series | PanelView Standard 1000 |
| Display | 10” Color TFT, 640 × 480, 256 colors |
| Operation Mode | Membrane keypad (16 programmable function keys + navigation keys) |
| Communication | DH+ interface, RS232 (download / printer) |
| Power Supply | 85–264 V AC, 47–63 Hz |
| Application Memory | 310 KB RAM, 1008 KB non-volatile storage |
| Backlight | CCFL, field replaceable |
| Mounting | Cabinet panel embedded installation |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Front Protection | NEMA 4X, indoor use |
Installation & Commissioning Notes
Establish communication with the PLC and verify data monitoring, manual operation and alarm functions. Check printing function if an external printer is connected.
After commissioning, add periodic inspection items: check backlight brightness, key sensitivity and terminal tightness.
Typical Application Fields
Chemical & Petrochemical Process Units
Local monitoring and operation panel for reactors, separation and heat exchange equipment.
Thermal Power Auxiliary Control Rooms
Operation interface for boiler fans, water supply pumps and flue gas treatment systems.
Metallurgy & Mechanical Processing Production Lines
On-site operation station for stamping, casting and continuous conveying equipment.
Water Treatment & Sewage Automation Systems
Parameter monitoring and manual intervention for pump groups and dosing units.
Legacy Automation Retrofit & Spare Replacement Projects
Direct replacement for aging PanelView 1000 terminals of existing DH+ network control systems.
