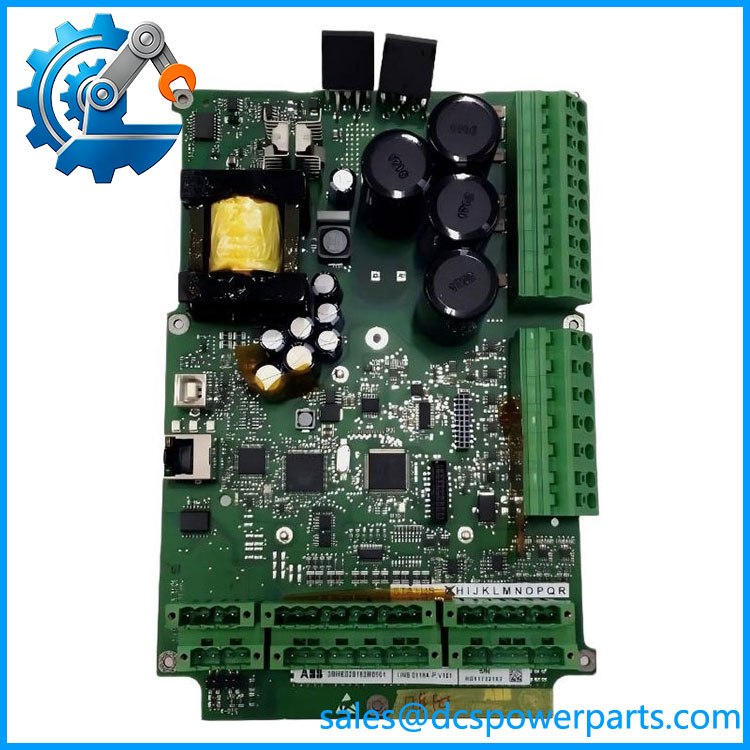

ABB UNS0119A-P,V101 3BHE029154P3 Control Interface Module

Key Technical Specifications

Available records identify UNS0119A-P,V101 with ABB part numbers 3BHE029154P3 and 3BHE029153R0101. The exact role varies between public listings, with descriptions including processor module, interface board, and digital status acquisition board. For field replacement, the installed ABB equipment documentation should be considered the controlling reference.

Product Introduction

The ABB UNS0119A-P,V101 3BHE029154P3 is an ABB control hardware module used in specialized ABB power-control environments. It is commonly associated with UNITROL excitation systems and AC 800PEC-based architectures, where it supports internal control, interface, or signal acquisition functions.

This module should not be treated as a generic PLC I/O card. The exact function depends on the installed ABB platform, rack configuration, and firmware environment. Correct replacement requires matching the complete part number and the surrounding control architecture.

UNS0119A-P,V101 3BHE029154P3

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

A common maintenance issue with ABB UNS-series boards is incorrect identification. A board may physically fit the rack but still fail because the application expects a specific firmware revision, slot assignment, or system role.

Typical Applications

• Generator excitation systems — Status acquisition and control interfacing inside ABB UNITROL cabinets.
• Power-electronics control systems — Internal signal exchange within AC 800PEC architectures.
• Medium-voltage drive systems — Applicable where the installed ABB design specifies UNS-series hardware.
• Legacy ABB control cabinets — Direct spare replacement for documented 3BHE029154P3 installations.

Technical Pitfalls to Avoid

1. Do not classify it only by secondary database descriptions.
   Some listings call UNS0119A-P a processor module, while others identify it as a digital input/status board. Confirm the function from ABB drawings and the installed system configuration.
2. Verify the exact revision.
   The suffix V101 matters. Similar UNS-series boards may have different hardware revisions and are not automatically interchangeable.
3. Check rack position and mating hardware.
   A correct part number installed in the wrong slot can still generate system alarms or communication faults.
4. Protect the board during handling.
   Use ESD precautions. ABB excitation and power-control cabinets contain sensitive electronic assemblies that can be damaged by improper handling.

Related Products

• ABB UNS0122A-P 3BHE042393R0101 — Related ABB UNS-series control/interface board used in power-control architectures.
• ABB XXD129A01 3BHE012436R0001 — PEC800-BP interface/backplane module for AC 800PEC systems.
• ABB XDD501A101 3BHE036342R0101 — Auxiliary power/interface hardware for AC 800PEC platforms.
• ABB PCD230A 3BHE022291R0101 — UNITROL 6000 excitation control module.
• ABB UFC911B106 3BHE037864R0106 — Excitation trigger pulse and thyristor control board.
• ABB UFC921A101 3BHE024855R0101 — Main excitation control hardware for UNITROL systems.
• ABB UNITROL 6000 Control Modules — Related excitation-system hardware family.
• ABB AC 800PEC Controller Hardware — Power-electronics control platform containing compatible modules.

Procurement Check

Before approving an ABB UNS0119A-P,V101 3BHE029154P3 replacement, verify:

• Complete part number:
• ABB number: 3BHE029154P3
• Related reference: 3BHE029153R0101
• Installed ABB platform
• Cabinet drawing and slot position
• Hardware revision
• Firmware compatibility
• Connector arrangement
• Existing parameter/configuration records

Field recommendation: treat ,V101 as a system-specific ABB control module. Do not substitute based only on physical dimensions or generic “processor/I/O board” descriptions. Match the complete ABB hardware reference and installed application.
