ABB UNITROL1010 3BHE035301R0001 | Automatic Voltage Regulator | Generator Excitation Control

Description

ABB UNITROL1010 3BHE035301R0001 UNS0121A-Z.V1

Key Technical Specifications

The electrical ratings above are taken primarily from ABB’s UNITROL 1010/1020 quick installation documentation rather than reseller specifications. ABB specifies a 10 A continuous excitation output at 55°C for UNITROL 1010, with a 25 A, 10-second overload capability.

Product Introduction

The ABB UNITROL1010 3BHE035301R0001 UNS0121A-Z.V1 is a digital automatic voltage regulator from the UNITROL 1000 excitation platform. Its primary job is to regulate the excitation of a synchronous generator or motor so that machine voltage remains at the required operating point as load and operating conditions change. The same controller can be configured for excitation-current, reactive-power, or power-factor regulation, making it more than a simple voltage-sensing device. ABB specifies the UNITROL 1010/1020 family for synchronous machines up to 80 MVA.

For plant maintenance teams, the important point is that ABB 3BHE035301R0001 is part of the excitation control loop, not a conventional PLC or DCS I/O card. It interfaces with machine and network measurements, excitation power circuitry, analog/digital control signals, and supervisory communication. Ethernet and USB are available for commissioning and maintenance, while ABB’s CMT 1000 software is used for parameterization and commissioning.

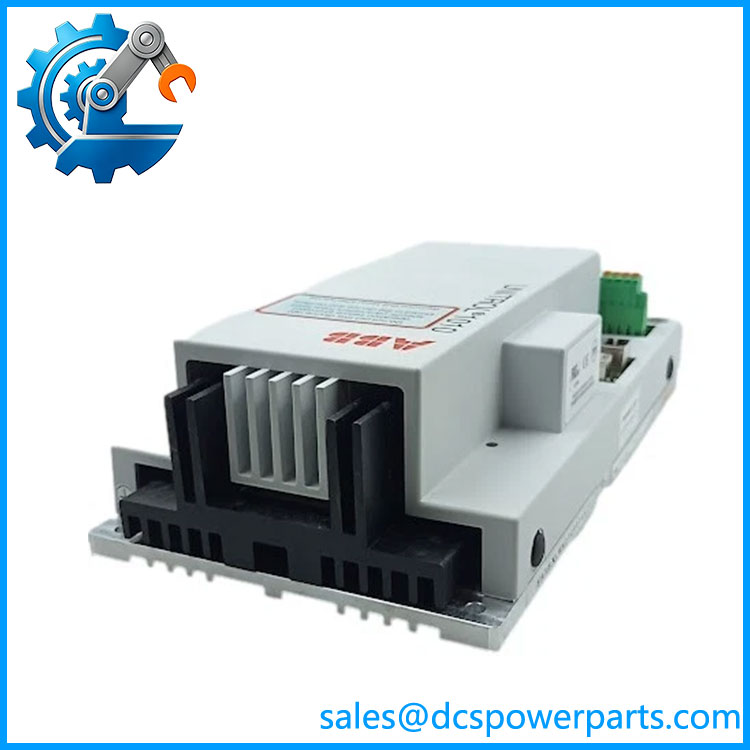

UNITROL1010 3BHE035301R0001

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A failed AVR can look like a generator-control problem when the actual fault is in the excitation power path, voltage/current measurement wiring, configuration, or regulator parameters. Replacing the controller with a physically similar unit without checking the complete excitation configuration can create a second problem during commissioning. The ABB 3BHE035301R0001 .V1 therefore needs to be treated as part of the complete excitation system rather than as an interchangeable general-purpose controller.

Typical Applications

• Synchronous generator excitation — Maintains generator terminal voltage through controlled excitation.
• Industrial power generation — Suitable for generator sets where AVR and excitation-current regulation are required.
• Synchronous motor excitation — Provides excitation regulation for applicable synchronous motors.
• Reactive-power and power-factor regulation — Supports operating modes beyond conventional automatic voltage regulation.
• Generator modernization projects — Can be considered when replacing an older excitation controller, provided the complete system configuration is verified.

Technical Pitfalls

1. Do not confuse UNITROL 1010 with UNITROL 1020. The two units share the same product family, but their output capabilities and physical dimensions differ. ABB lists 10 A continuous excitation current for UNITROL 1010 versus higher ratings for UNITROL 1020.
2. Configuration is part of the replacement. ABB’s commissioning procedure requires the configuration file and parameters to be downloaded and checked. A replacement unit should therefore be evaluated together with the existing parameter backup, machine data, limiter settings, and control-mode configuration.
3. Measurement wiring matters. Machine voltage can be measured up to 500 VAC, but ABB specifically notes that machine-voltage measurement above 250 VAC requires the machine star point to be connected to protective earth.
4. Keep control and excitation cables separated. ABB explicitly recommends separating I/O cables from excitation power and measurement cables to reduce electromagnetic interference.
5. Observe DC-link discharge time. The AVR contains capacitors that can remain energized after shutdown. ABB specifies waiting at least five minutes after disconnecting the unit before working on it, with additional verification that internal voltage has fallen to a safe level.
6. Check inrush-current conditions. ABB warns that the internal DC capacitor can produce high startup current and specifies that inrush must not exceed 200 A for 10 ms. This is particularly relevant when reviewing a replacement installation or modified excitation supply arrangement.

Related Products

• ABB UNITROL 1020 — Higher-capacity member of the same UNITROL 1000 AVR family; do not treat it as a direct drop-in replacement without checking the complete application.
• ABB UNITROL 1005 — Lower-capacity UNITROL 1000 family member for smaller excitation applications.
• ABB CMT 1000 — Commissioning and maintenance software used to configure and test UNITROL 1000 AVRs.
• ABB UNITROL 1010 User Manual — Primary reference for detailed parameterization, wiring, commissioning, and application limits.
• ABB UNITROL 1000 Control Software — Relevant to configuration and software compatibility.
• ABB UNITROL 1000 Commissioning Tools — Used during startup, tuning, measurement verification, and regulator testing.

Procurement Note

For a replacement purchase, specify the complete identification: / 3BHE035301R0001 / .V1 rather than purchasing by “UNITROL 1010” alone. The type designation and hardware/software revision can affect the suitability of a replacement. For used or surplus equipment, request clear photographs of the type label, terminal area, connectors, PCB condition, warning/status indicators, and any available configuration or test records.

A technically acceptable replacement should also be checked against the generator excitation supply, field current requirement, machine-voltage measurement arrangement, I/O wiring, communication architecture, and stored AVR configuration before installation.
