Description
Product Overview

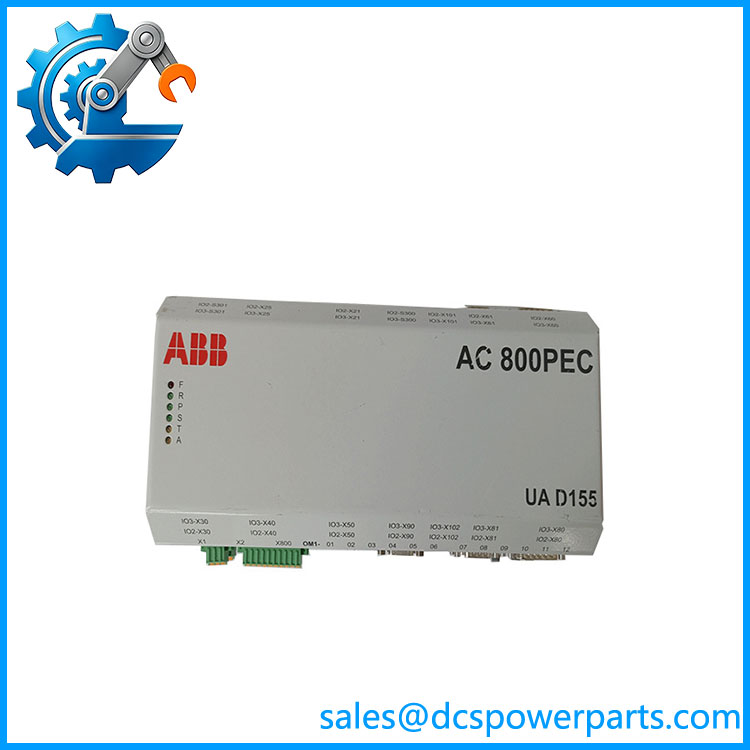

The ABB UAD155A0111 3BHE029110R0111 is a controller board designed for ABB AC 800PEC control architectures, serving as a combined I/O interface and processing component within high-performance industrial automation applications. The module provides signal processing and communication functions between field-level devices and the AC 800PEC controller environment, supporting applications that require fast control response and precise coordination between multiple system components. ABB identifies the unit as a “Controller Board: AC 800PEC Combi IO Box,” confirming its role within the AC 800PEC hardware platform.
Used inside power electronics, converter control, and demanding automation installations, the ABB UAD155A0111 3BHE029110R0111 manages mixed signal handling and controller-level communication. The AC 800PEC platform is designed for applications requiring high-speed processing close to industrial equipment, including power conversion systems, excitation control solutions, and specialized machine control environments. The board provides the connection point between application software, controller logic, and external I/O functions, allowing engineers to maintain precise regulation and monitoring performance.
The ABB UAD155A0111 3BHE029110R0111 is frequently considered during lifecycle support projects where existing AC 800PEC systems remain operational and replacement hardware availability becomes a maintenance concern. From a field engineering perspective, replacement should include verification of hardware revision, firmware compatibility, controller configuration files, and connected I/O mapping. A direct part number match is important, but system-level validation remains necessary because AC 800PEC installations are often customized for specific equipment applications.
Product Introduction (Non-Templated)
When an AC 800PEC controller rack develops an I/O processing fault, replacing only the affected controller board can reduce downtime compared with a complete hardware redesign. The ABB UAD155A0111 3BHE029110R0111 provides the required controller and combined I/O functionality for compatible AC 800PEC installations.
Designed for high-speed industrial control environments, this board supports legacy replacement work, power automation maintenance, and AC 800PEC system extension projects. Engineers should confirm firmware revision and application configuration before commissioning.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | UAD155A0111 |
| Part Number | 3BHE029110R0111 |
| Manufacturer | ABB |
| Product Type | Controller Board / AC 800PEC Combi I/O Board |
| System Platform | ABB AC 800PEC |
| Controller Function | High-speed control processing and I/O handling |
| I/O Architecture | Combined analog and digital I/O interface |
| Communication Interface | ABB internal system communication / DriveBus |
| Mounting Type | AC 800PEC controller assembly |
| Power Supply | System backplane supplied |
| Application Areas | Power electronics, excitation systems, industrial automation |
| Installation Environment | Industrial control cabinets |
| Weight | Approx. 2.947 kg |
| Condition | New Surplus, Factory Sealed |
