Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | TU810V1 |
| Order Number | 3BSE013230R1 |
| Product Type | Compact Module Termination Unit (MTU) |
| System Platform | ABB S800 I/O / System 800xA |
| Connection Type | Terminal block |
| Number of Channels | 16 |
| Rated Voltage | 50 V |
| I/O Configuration | Single I/O (non-redundant) |
| ModuleBus Function | Distributes ModuleBus to I/O module and next MTU |
| Compatible I/O Modules | AI810, AI815, AI820, AI830, AI835, AI845, AO810, DI810, DI840, DO810, DO880, DP820 and others |
| Process Connections | 2 x 2 process power, 5 x 2 process power (0 V) |
| Maximum Current per I/O Channel | 2 A |
| Maximum Process Connection Current | 5 A |
| Wire Size Range | 0.2–4 mm² solid, 0.2–2.5 mm² stranded |
| Mounting | DIN rail |
| Protection Rating | IP20 |
| Dimensions | 64 mm × 170 mm × 58.5 mm |
| Weight | Approx. 0.17 kg |
Product Introduction

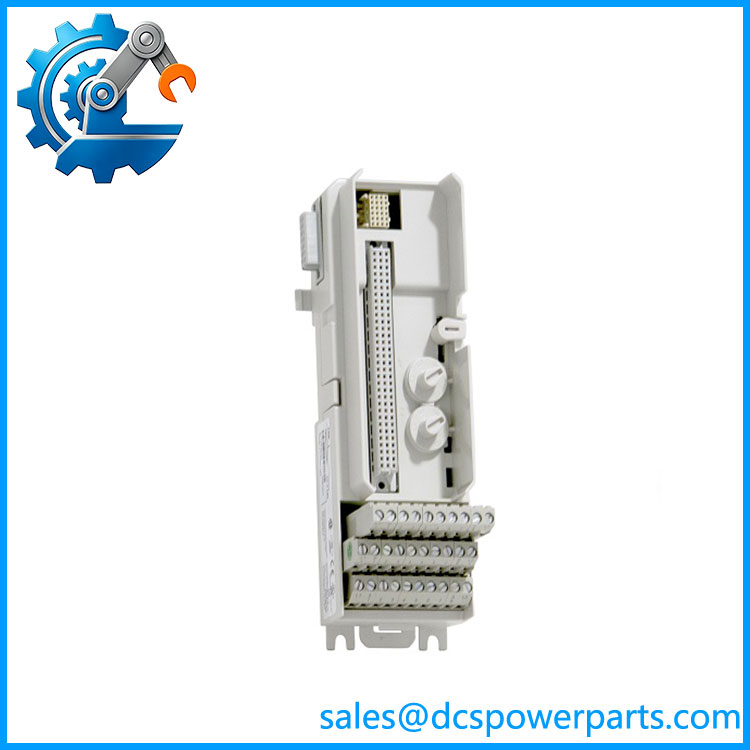

ABB TU810V1 3BSE013230R1 Overview
The ABB TU810V1 3BSE013230R1 is a compact Module Termination Unit designed for ABB S800 I/O systems used with System 800xA and AC 800M automation platforms. It provides the physical interface between field wiring and I/O modules, while also distributing ModuleBus communication within the I/O assembly.
The ABB TU810V1 3BSE013230R1 is commonly maintained in process plants where existing S800 I/O cabinets remain in service. Its compact design, 16-channel termination capability, and compatibility with a wide range of S800 I/O modules make it suitable for replacement of damaged or aged termination units. Confirm the installed I/O module type and wiring design before installation.
TU810V1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A failed termination unit can create confusing field faults. The controller may appear healthy, the I/O module may pass diagnostics, but field signals still disappear because the physical connection layer has failed. This is common in older DCS cabinets where terminal blocks have experienced years of vibration, thermal cycling, and repeated maintenance work. The ABB TU810V1 3BSE013230R1 is normally replaced to restore the original S800 I/O structure without redesigning the cabinet.
Typical Applications
- Power Generation – Boiler instrumentation, auxiliary equipment monitoring, and turbine support systems.
- Chemical Processing – Analog transmitter and digital field device connections in continuous process units.
- Oil & Gas Facilities – Pressure, temperature, flow, and valve signal termination in ABB DCS cabinets.
- Water Treatment Plants – Pump control, motor feedback, and process measurement systems.
Technical Pitfalls to Avoid
- Incorrect I/O Module Matching
The TU810V1 is not a universal terminal board. Verify compatibility with the installed S800 I/O module before replacement. Different modules require different termination configurations.
- ModuleBus Connection Errors
The MTU participates in ModuleBus distribution. Poor seating, incorrect installation, or damaged connectors can interrupt communication between the I/O module and controller.
- Field Wiring Documentation Issues
Many plants modify wiring over years of operation. Do not rely only on original drawings. Confirm terminal markings, cable tags, and actual field connections before removal.
Field note: Photograph the complete I/O assembly before replacement. Capture the module position, terminal numbering, and cable labels. It prevents unnecessary loop-check work after startup.
