ABB SUE3000 1VCF750090R0804 | HMI Operator Panel | High-Speed Transfer System
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | |
| ABB Identification No. | 1VCF750090R0804 |
| Manufacturer | ABB |
| System | SUE 3000 High Speed Transfer Device |
| Product Type | HMI / Operator Panel |
| HMI Supply Version | 110–220 V |
| Primary Function | Local operator interface |
| System Application | High-speed source transfer / critical-load power continuity |
| Related HMI | 1VCF750090R0803 |
| HMI Cable | 1VCF750142R0817 / R0818 / R0819, depending on cable length |
| Associated Mainboard | 1VCF751021R0802 |
| Associated Power Supply | 1VCF750168R0802 |
ABB’s operating manual identifies the HMI as a replaceable SUE 3000 spare and lists three corresponding HMI cable lengths. The exact HMI cable should therefore be matched to the installed cabinet configuration rather than selected solely by the HMI part number.
Product Introduction
ABB 1VCF750090R0804

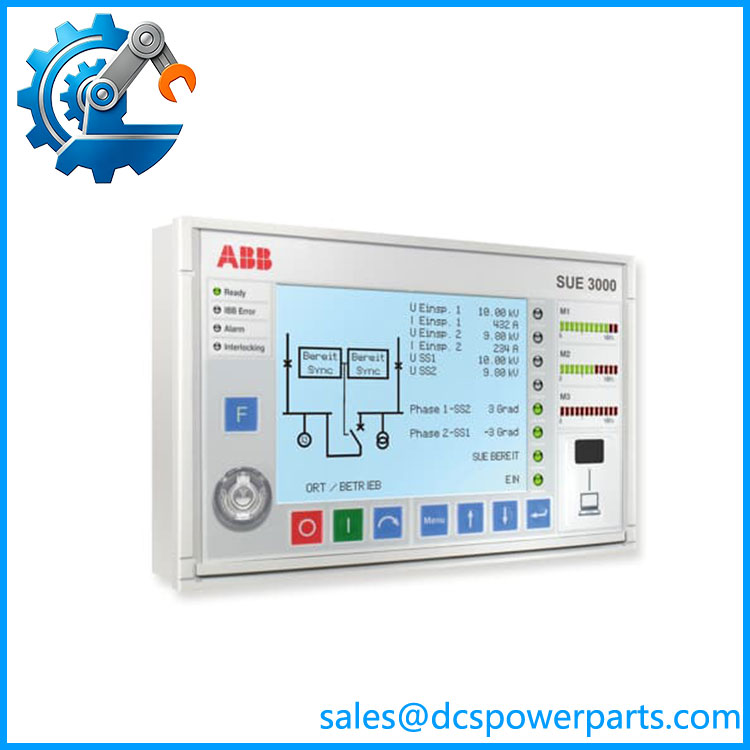

The ABB 1VCF750090R0804 is the 110–220 V HMI/operator panel used with the ABB SUE 3000 High Speed Transfer Device. It provides the local operator interface for a system designed to transfer critical loads between power sources when the normal source becomes unsuitable. ABB describes SUE 3000 as a high-speed transfer solution for power plants and large industrial facilities, with transfer performance designed around the electrical condition of the two available sources.
The important point for procurement is that 1VCF750090R0804 is an HMI component, not the SUE 3000 controller or a power-conversion module. Several secondary listings incorrectly describe this part as a servo drive, motor-control module, or robot component. Those descriptions do not match ABB’s SUE 3000 spare-parts documentation and should not be used for compatibility decisions.
SUE3000
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When an older SUE 3000 installation develops an HMI fault, the transfer logic and electrical switching hardware may remain intact while the operator loses local visibility or control. Replacing the display assembly with a visually similar industrial panel is not a safe assumption because the HMI is part of a dedicated ABB system architecture.
The 1VCF750090R0804 is specifically the 110–220 V HMI. Before replacement, confirm the cabinet’s supply arrangement and compare the existing HMI identification label with the complete ABB part number.
Typical Applications
- Power Plant Auxiliary Systems: Supporting rapid transfer of critical auxiliary loads between available power sources.
- Oil & Gas Facilities: Maintaining electrical supply to process equipment where an extended voltage interruption can cause a plant trip.
- Industrial Process Plants: Providing local operator access to SUE 3000 high-speed transfer equipment.
- Critical Utility Systems: Supporting transfer operations where continuity of electrical supply is important to plant operation.
ABB states that SUE 3000 is intended for medium-voltage equipment and systems affected by supply disturbances, with automatic transfer to a backup source according to the configured system conditions. ABB documentation also describes applications in power plants and large industrial facilities.
Technical Pitfalls to Avoid
- Do not confuse the HMI with the SUE 3000 controller.
The 1VCF750090R0804 is listed by ABB as the HMI/operator panel. The SUE 3000 assembly contains separate mainboard, power-supply, I/O, analog-input, communication, and other components. - Check the HMI voltage version.
ABB lists 1VCF750090R0804 for the 110–220 V HMI version and 1VCF750090R0803 for the 48–110 V version. This is a meaningful electrical distinction, not simply a cosmetic suffix difference. - Verify the HMI cable.
ABB lists HMI cables with different lengths under 1VCF750142R0817, 1VCF750142R0818, and 1VCF750142R0819. During a cabinet replacement, retain the original cable identification and verify its length and connector arrangement. - Do not use generic listings as technical references.
Current secondary listings contain contradictory classifications, including servo-drive and robot-controller descriptions. The ABB operating manual is much more useful for identifying this specific part because it places 1VCF750090R0804 directly in the SUE 3000 HMI spare-parts list. - Treat transfer-system testing as a protection-related commissioning task.
After replacing an HMI, verify communication, displayed measurements, alarm/status indications, manual operating functions, and the configured transfer logic under the plant’s approved commissioning procedure. Do not perform an uncontrolled live transfer simply to test the replacement panel.
Related Products
- 1VCF750090R0803: HMI version for the 48–110 V supply range; the closest HMI variant and the first part to distinguish from R0804.
- 1VCF750142R0817: HMI cable, one of the documented cable-length variants.
- 1VCF750142R0818: Alternative HMI cable length.
- 1VCF750142R0819: Another HMI cable length.
- 1VCF751021R0802: mainboard, basic/full configuration depending system design.
- 1VCF750168R0802: wide-range power-supply module.
- 1VCF701839R0801: binary I/O module, available in standard/static I/O configurations.
- 1VCF750170R0819: analog input transformer assembly for CT/VT measurement.
- 1VCF750237R0801: analog output board, 4–20 mA.
- 1VCF750079R0801: MOD-BUS RTU / SPAbus RS-485 communication module.
Procurement Note
For 1VCF750090R0804, the most important checks are HMI voltage version, complete ABB identification number, HMI cable, and the installed SUE 3000 hardware revision. If the existing panel is marked R0804, replacing it with the visually similar R0803 without checking the supply arrangement is not advisable.
For legacy SUE 3000 systems, retain the complete part number 1VCF750090R0804 when requesting a spare. ABB’s own spare-parts table is the stronger identification reference than generic industrial-part listings, particularly because this number is frequently misclassified online.
