Description
Product Overview

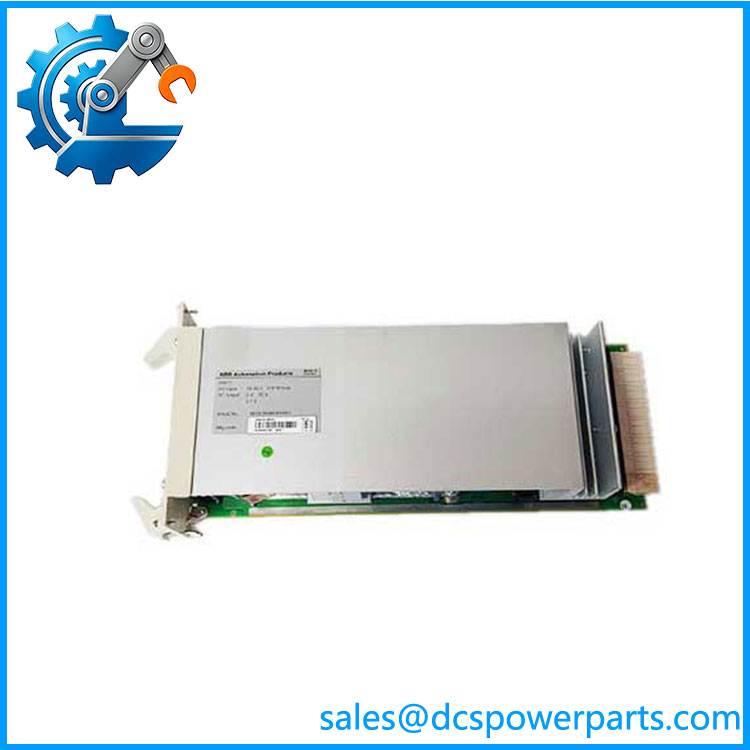

The ABB SR511 3BSE000863R0001 is a redundant power regulator module designed for ABB Advant OCS and Advant Controller 450 automation systems. This module provides regulated low-voltage DC power conversion by accepting a 24VDC plant supply and generating stable 5VDC and auxiliary 2.1VDC outputs required by controller electronics, communication assemblies, and I/O-related hardware. The ABB SR511 3BSE000863R0001 is identified as an SR511 Regulator 24V/5V module within ABB’s Advant control system spare parts family.
Installed inside ABB control system racks, the ABB SR511 3BSE000863R0001 plays a foundational role because every processor, communication module, and interface board depends on clean and stable power rails. The unit uses a redundant regulator design intended for continuous industrial operation, with dual 24VDC inputs and supervisory functions that help maintain power availability in critical control environments. The module provides a 5.15VDC regulated output at high current levels and includes protection functions for overvoltage, current limiting, and thermal conditions.
For engineers maintaining ABB Advant installations, the ABB SR511 3BSE000863R0001 is commonly required during controller cabinet restoration, preventive maintenance, and lifecycle support activities. To be completely transparent, power modules should not be evaluated by part number alone. Rack configuration, load requirements, backup power arrangement, and installed controller hardware must be reviewed before replacement.
The practical importance of this regulator is simple: unstable control power can create intermittent faults that are difficult to diagnose. Replacing an aging SR511 module with a verified spare can help restore stable operation while preserving the existing ABB control architecture. Proper inspection of connectors, output voltage levels, and system alarms is recommended before placing the module back into service.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB 3BSE000863R0001 |
| Manufacturer | ABB |
| Product Type | Redundant DC Power Regulator Module |
| System Platform | ABB Advant OCS / Advant Controller 450 |
| ABB Type Designation | |
| Input Voltage | 24VDC nominal |
| Input Voltage Range | 18–30VDC |
| Input Power Rating | 310W at full load |
| Output Voltage 1 | 5.15VDC adjustable |
| Output Current | Up to 35A |
| Auxiliary Output | 2.1VDC |
| Current Limiting | Approx. 43A ±3A on 5V output |
| Protection | Overvoltage, current limit, thermal protection |
| Mounting | ABB Advant system rack |
| Module Size | 6 SU, half-height double-width |
| Weight | Approx. 1.6 kg |
SR511-3BSE000863R0001
Related Products
- ABB SB511 3BSE002348R1 — Backup power supply module for Advant systems. Used together with power distribution components where DC backup capability is required.
- ABB SR510 — Related regulator family module. Applicable for Advant rack power architectures requiring similar DC regulation functions.
- ABB PM511V16 3BSE011181R1 — Advant Controller processor module. Works with as part of the AC450 controller hardware stack.
- ABB SC510 3BSE003832R1 — Submodule carrier used in Advant controller systems. Provides the mounting platform for controller-related assemblies.
- ABB CS513AK01 3BSE091971R1 — MB300/300E communication interface module. Handles communication functions within Advant architectures.
- ABB AC450 System Units — Complete Advant Controller 450 assemblies containing processor, power, and communication components.
- ABB DSCA190V 57310001-PK — Advant communication processor module. Supports communication functions rather than DC power regulation.
Frequently Asked Questions (FAQ)
1. What system is the ABB 3BSE000863R0001 used in?
The ABB 3BSE000863R0001 is used in ABB Advant OCS and Advant Controller 450 systems as a 24VDC to 5VDC regulator module. It supplies regulated power to controller electronics and associated system components.
2. Can I hot-swap the ABB 3BSE000863R0001?
Hot replacement depends on the specific Advant rack design and site operating procedure.
Typical replacement steps include:
- Verify the controller is in a safe maintenance condition.
- Confirm input power status.
- Remove the existing regulator module.
- Install the replacement unit.
- Check output voltage and system diagnostics.
The is a power module, so replacement procedures should follow approved electrical maintenance practices.
3. Does the ABB support firmware v3.1?
The is a power regulator module and does not normally run application firmware like a controller CPU. Compatibility depends mainly on the Advant rack hardware configuration and electrical specifications.
4. Will replacing the ABB erase my control logic?
No. The provides power conversion and does not store PLC/DCS application logic.
After replacement, engineers should verify:
- Output voltage stability
- Controller startup status
- Rack diagnostics
- Communication recovery
5. How can I verify a New Surplus ABB 3BSE000863R0001?
Recommended checks include:
- Confirm ABB identification labels and ordering number.
- Verify and 3BSE000863R0001 markings.
- Inspect connectors and enclosure condition.
- Measure output voltage before installation.
- Confirm proper rack compatibility.
6. What failures are commonly associated with the ABB ?
Typical issues include:
- Loss of regulated 5V output
- Internal regulator aging
- Overcurrent events
- Cooling-related thermal stress
- Input power instability
Because multiple controller modules depend on the same supply rail, power regulator faults can appear as unrelated system failures.
7. Is the ABB suitable for ABB DCS upgrade projects?
The is primarily intended for maintaining existing Advant OCS installations. For modernization projects, engineers should evaluate the complete control platform, processor availability, software migration requirements, and long-term maintenance strategy before selecting replacement hardware.
