ABB SPAD 346 C2 | Stabilized Differential Protection Relay
Product Overview
The ABB SPAD 346 C2 is a stabilized differential protection relay from ABB’s SPAD 346 C family, designed for protection applications where differential protection is required together with backup overcurrent and earth-fault functions. ABB’s official product guide identifies the C2 configuration as a relay containing the SPCD 3D53 stabilized differential module and SPCJ 4D28 combined overcurrent/earth-fault module. Unlike the basic SPAD 346 C configuration, C2 does not include the separate SPCD 2D55 earth-fault module.
The ABB SPAD 346 C2 is primarily relevant to legacy medium-voltage and high-voltage protection installations where SPACOM-family equipment remains in service. The differential element compares transformer-side currents to identify internal faults, while the additional overcurrent and earth-fault functions provide separate protection stages. The exact relay order code remains important because the SPAD 346 C family was supplied in multiple module combinations and auxiliary-voltage variants. ABB documentation lists C2 order numbers in the RS 621 004-AA/CA/DA/FA family, with the suffix determining rated frequency and auxiliary supply range.
For procurement, the description “SPAD 346 C2” alone is not always enough. The final order suffix matters. ABB specifies AA for 50 Hz with 80–265 VAC/DC auxiliary supply, CA for 50 Hz with 18–80 VDC, DA for 60 Hz with 80–265 VAC/DC, and FA for 60 Hz with 18–80 VDC. Rated CT current must also be confirmed from the original relay documentation or nameplate.
Product Introduction — Non-Templated
Transformer protection is one area where replacing a relay by family resemblance is asking for trouble. SPAD 346 C2 has a defined internal module combination, so the replacement should match the original protection philosophy rather than merely fit the same panel cutout.
The C2 configuration combines the SPCD 3D53 stabilized differential element with the SPCJ 4D28 combined overcurrent and earth-fault module. That makes it particularly relevant when maintaining an existing SPACOM protection scheme or carrying out a controlled legacy replacement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SPAD 346 C2 |
| Manufacturer | ABB |
| Product Type | Stabilized differential protection relay |
| Protection Family | SPAD 346 C |
| Main Differential Module | SPCD 3D53 |
| Additional Protection Module | SPCJ 4D28 |
| Separate Earth-Fault Module | Not included in C2 |
| Differential Protection | Three-phase stabilized differential protection |
| Overcurrent Protection | Provided through SPCJ 4D28 |
| Earth-Fault Protection | Provided through SPCJ 4D28 |
| Rated Current | 1 A or 5 A, configuration-dependent |
| Rated Frequency | 50 Hz or 60 Hz, configuration-dependent |
| Auxiliary Voltage | 80–265 VAC/DC or 18–80 VDC, depending on suffix |
| AA Variant | 50 Hz, 80–265 VAC/DC |
| CA Variant | 50 Hz, 18–80 VDC |
| DA Variant | 60 Hz, 80–265 VAC/DC |
| FA Variant | 60 Hz, 18–80 VDC |
| Test Adapter Option | RTXP18 available as an ordered accessory/configuration |
| Technology | Static/electronic protection relay |
| Installation | Protection-panel mounted |
| Communication | Optional bus interface architecture; exact installed interface must be verified |
ABB’s documentation specifically lists the SPAD 346 C2 order family as RS 621 004-AA, RS 621 004-CA, RS 621 004-DA, and RS 621 004-FA. The same guide lists versions supplied with an RTXP18 test adapter.

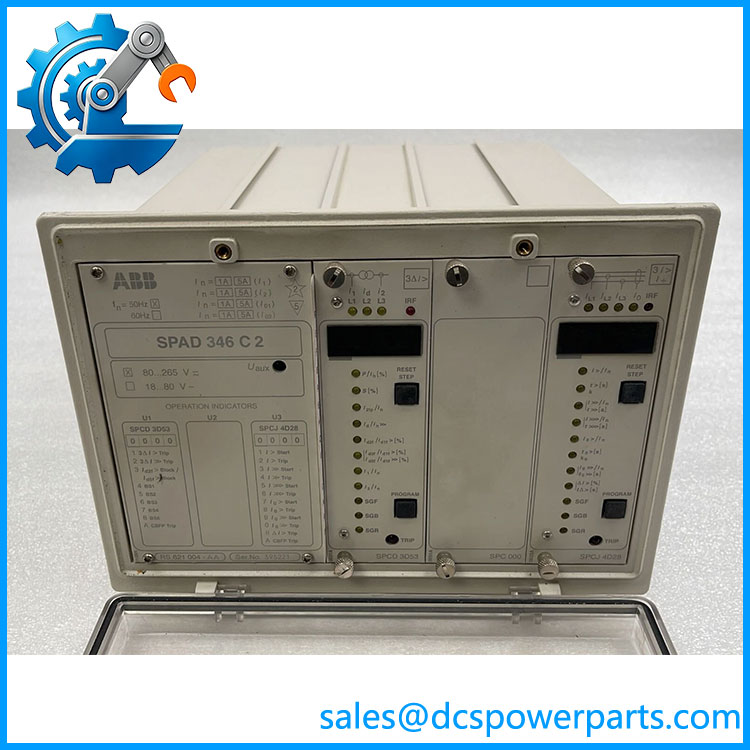

SPAD346C2
Major Features / Advantages
Stabilized transformer differential protection
The core function of the SPAD 346 C2 is stabilized differential protection. The differential element is intended to distinguish internal transformer faults from conditions such as through-fault current where restraint is required.
This is fundamentally different from using a simple overcurrent relay as the primary transformer protection element. The differential measurement is based on comparing currents associated with the protected transformer zone.
Defined C2 module architecture
The C2 designation has a very specific meaning within the SPAD 346 C family. ABB documents the configuration as:
- SPCD 3D53 — three-phase stabilized differential relay module
- SPCJ 4D28 — combined overcurrent and earth-fault relay module
The separate SPCD 2D55 earth-fault module is omitted from C2. This is one of the most important details to check when comparing a replacement with an existing installation.
Backup overcurrent and earth-fault protection
The SPCJ 4D28 provides additional protection functions alongside the main differential element. This allows the C2 configuration to combine transformer differential protection with backup phase overcurrent and earth-fault protection in one relay assembly.
The exact protection settings remain application-specific. CT ratios, transformer vector group, grounding arrangement, pickup values, time delays, and coordination with upstream/downstream protection must be taken from the plant protection study.
Multiple auxiliary-power configurations
The SPAD 346 C family was offered with multiple auxiliary-voltage ranges. ABB specifies two broad supply ranges: 80–265 VAC/DC and 18–80 VDC, with the ordering suffix also identifying 50 Hz versus 60 Hz versions.
This is a procurement detail that should never be skipped. A relay with the correct model family but the wrong auxiliary-power variant is not an acceptable direct replacement.
Legacy protection-system maintenance
For plants with SPACOM protection equipment still operating, the SPAD 346 C2 can be relevant as a maintenance spare for an established protection scheme. ABB’s technical documentation also identifies dedicated power-supply, I/O, connection, case, and bus-interface modules within the SPAD 346 C architecture.
The practical value here is preservation of an existing protection design, provided the replacement is matched against the original relay configuration and settings.
Related Products
- ABB SPAD 346 C — Basic SPAD 346 C configuration containing the full module set; differs from C2 because the module combination is not the same.
- ABB SPAD 346 C1 — Includes SPCD 3D53 and SPCD 2D55, but excludes the SPCJ 4D28 combined overcurrent/earth-fault module.
- ABB SPAD 346 C3 — Contains the SPCD 3D53 stabilized differential module only; a substantially different protection configuration.
- ABB SPAD 346 C4 — Includes SPCD 2D55 and SPCJ 4D28, without the SPCD 3D53 differential module.
- ABB SPAD 346 C5 — Includes the SPCD 2D55 earth-fault module without the SPCJ 4D28 module.
- ABB SPAD 346 C6 — Includes the SPCJ 4D28 module; it does not represent the same differential-protection configuration as C2.
- SPCD 3D53 — Three-phase stabilized differential relay module used as the primary differential element in SPAD 346 C2.
- SPCJ 4D28 — Combined overcurrent and earth-fault relay module used in the C2 configuration.
- SPCD 2D55 — Separate earth-fault relay module used in other SPAD 346 C configurations but specifically excluded from C2.
FAQ
What is ABB SPAD 346 C2 used for?
The SPAD 346 C2 is a stabilized differential protection relay configuration used for transformer and related power-system protection. Its documented module combination includes the SPCD 3D53 differential relay and SPCJ 4D28 combined overcurrent/earth-fault relay.
What is the difference between SPAD 346 C2 and SPAD 346 C?
The basic SPAD 346 C contains the complete module set. C2 specifically contains SPCD 3D53 + SPCJ 4D28 and excludes the separate SPCD 2D55 earth-fault module.
Which auxiliary voltage does SPAD 346 C2 use?
It depends on the final ordering suffix. ABB documents:
- AA: 50 Hz, 80–265 VAC/DC
- CA: 50 Hz, 18–80 VDC
- DA: 60 Hz, 80–265 VAC/DC
- FA: 60 Hz, 18–80 VDC
The actual relay should therefore be checked for its complete order number rather than simply “C2.”
Can I hot-swap the SPAD 346 C2?
Do not treat it as a hot-swappable PLC I/O module. ABB’s manual specifically warns that the relay contains circuits sensitive to electrostatic discharge and instructs personnel to equalize potential before withdrawing a relay module. Protection circuits should be placed in the approved maintenance state before removal.
Does SPAD 346 C2 require CT configuration checks after replacement?
Yes. A replacement relay should be checked against the original CT ratios, rated current, transformer protection scheme, phase compensation/vector-group arrangement, grounding system, and protection settings. A physically identical relay with different configuration or settings can produce an incorrect protection scheme.
Does SPAD 346 C2 support modern Ethernet communications?
Do not assume it does. The SPAD 346 C platform is a legacy protection architecture. ABB documents optional bus-connection modules such as SPA-ZC17 and SPA-ZC21, but the exact communication hardware must be established from the relay configuration.
What should I verify before purchasing a replacement?
Verify all of the following:
- SPAD 346 C2 designation.
- Complete order number, such as RS 621 004-AA/CA/DA/FA.
- Rated CT current: 1 A or 5 A.
- 50 Hz or 60 Hz version.
- Auxiliary-voltage range.
- Presence and revision of SPCD 3D53.
- Presence and revision of SPCJ 4D28.
- Required test adapter, such as RTXP18.
- Existing protection settings and coordination data.
- Physical condition, terminal condition, and functional test evidence.
For a legacy protection relay, the suffix and internal module combination matter as much as the front-panel model number. ABB’s own ordering documentation makes that clear, particularly for the C2 configuration.
