Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-AMC-CLAS2 |
| Product Type | Advanced Motor Control Classic Board |
| Drive Platform | ABB DCS600 / DCF600 MultiDrive |
| Function | Motor control and regulation processing |
| Compatible Control Board | SDCS-CON-2 based systems |
| Processor | Dedicated AMC control processor |
| Communication Interface | DDCS optical communication |
| Optical Channels | Channel 0, Channel 2, Channel 3 |
| Channel 0 Function | Supervisory control / fieldbus communication interface |
| Channel 2 Function | Master-Follower drive synchronization |
| Channel 3 Function | Drive commissioning and maintenance connection |
| Software Compatibility | DCS600 software series (version dependent) |
| Mounting | ABB DC drive control cabinet |
| Application | Industrial DC motor speed and torque control |
Product Introduction

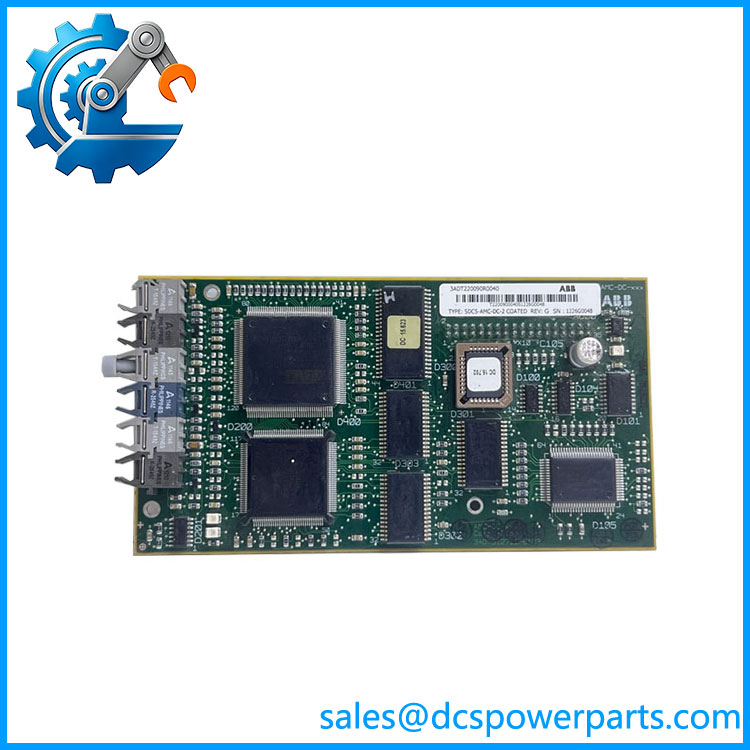

ABB SDCS-AMC-CLAS2 Overview
The ABB SDCS-AMC-CLAS2 is an Advanced Motor Control Classic board designed for ABB DCS600 and DCF600 DC drive systems. It provides the processing capability required for motor regulation functions, drive control algorithms, and communication handling within ABB DC drive architectures. The board works together with the SDCS-CON-2 control board to provide complete drive control functionality.
The ABB SDCS-AMC-CLAS2 contains its own controller for executing drive control functions, including speed regulation processing and torque reference generation. The board evaluates feedback information from the drive system and exchanges control data with higher-level automation systems through ABB communication interfaces.
The ABB SDCS-AMC-CLAS2 is commonly installed in industrial applications where DC motors remain in service due to their high torque capability and established mechanical integration. Typical installations include steel processing lines, cranes, paper machines, hoists, and large material handling equipment. Replacement requires checking the existing DCS600 software version, SDCS-CON configuration, parameter backup, and optical communication settings.
SDCS-AMC-CLAS2
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A DC drive system experiences speed instability, communication alarms, or unexpected motor control behavior. The drive power section may be healthy, but the control system cannot maintain the required regulation performance.
The troubleshooting path should include:
- AMC board diagnostic status
- SDCS-CON communication
- Optical DDCS links
- Drive parameter configuration
- Motor feedback signals
- Power converter condition
The ABB SDCS-AMC-CLAS2 is a control component within a larger drive system. A board fault is only one possible cause of unstable motor operation.
Typical Applications
Steel and Metal Processing
Used for:
- Rolling mill drives
- Conveyor systems
- Tension control applications
Paper and Printing Machinery
Applied in:
- Web tension systems
- Reel drives
- Speed synchronization applications
Cranes and Hoisting Equipment
Used for:
- Lifting drives
- Gantry systems
- Heavy-duty positioning equipment
Industrial Manufacturing
Applied in:
- Large DC motor applications
- Retrofit drive systems
- Production machinery modernization projects
Technical Pitfalls to Avoid
1. Confirm DCS600 Compatibility
Before replacement, verify:
- DCS600 or DCF600 drive type
- SDCS-CON-2 control board version
- Software revision
- AMC board variant
The AMC Classic version is not interchangeable with every AMC board variant.
2. Check Optical Communication Channels
The board uses optical communication channels for drive networking and control functions. Verify:
- Channel assignment
- Fiber connections
- Optical transmitter/receiver condition
- Connected adapters
3. Restore Drive Parameters
Before replacing the board, save:
- Motor data
- Speed controller parameters
- Current regulator settings
- Drive application parameters
A replacement board may require parameter restoration before normal operation.
4. Investigate External Causes
Common causes of AMC-related faults include:
- Power supply disturbances
- Feedback encoder problems
- Communication failures
- Incorrect parameter settings
- Converter power section faults
