Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SD822 |
| Order Number | 3BSC610038R1 |
| Product Type | AC-DC Power Supply Device |
| System Compatibility | AC 800M Controller, S800 I/O, Advant 800xA |
| Input Voltage | 115VAC / 230VAC selectable |
| Input Frequency | 50/60Hz |
| Output Voltage | 24VDC regulated |
| Output Current | 5A maximum |
| Output Power | 120W |
| Number of Outputs | 1 |
| Mounting Type | 35mm DIN rail mounting |
| Redundancy Support | Yes, with SS822 Voting Unit |
| Width | Approx. 65mm |
| Weight | Approx. 0.5-0.6kg |
| Protection | Overcurrent and short-circuit protection |
| Operating Application | Industrial control cabinets, DCS and PLC power distribution |
Product Introduction

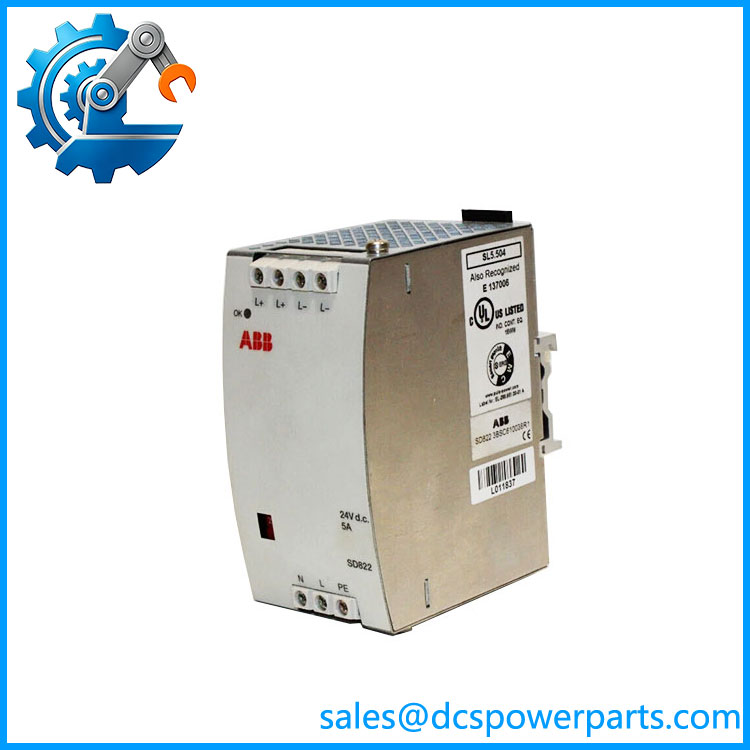

ABB SD822 3BSC610038R1 Overview
The ABB SD822 3BSC610038R1 is an AC-DC power supply module designed for ABB AC 800M controllers, S800 I/O systems, and Advant 800xA automation platforms. It converts selectable 115/230VAC input into a regulated 24VDC output rated at 5A for supplying control hardware and field interface components.
The ABB SD822 3BSC610038R1 is commonly installed in process control cabinets where stable DC power distribution is required. It supports redundant power architectures when paired with the ABB SS822 voting unit, allowing dual power supply arrangements in higher-availability control systems.
SD822
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A DCS cabinet unexpectedly drops offline after years of continuous operation. Engineers often suspect the controller CPU or communication network first. In many cases, the issue begins with aging power components, unstable DC output, or an overloaded 24VDC distribution circuit.
The SD822 is upstream of critical control hardware. A voltage drop or intermittent power fault can create multiple alarms that look unrelated. Before replacing the power supply, verify the actual DC load and downstream condition.
Typical Applications
- Oil & Gas Facilities – Power supply for AC 800M controllers, S800 I/O stations, and process control cabinets.
- Chemical Plants – 24VDC distribution for DCS racks, communication modules, and field interface equipment.
- Power Generation – Controller cabinet power systems for auxiliary controls and monitoring applications.
- Water Treatment Facilities – PLC/DCS cabinets supporting pumps, valves, and remote I/O networks.
Technical Pitfalls to Avoid
- Check the AC Input Selector Before Energizing
The SD822 supports selectable 115VAC and 230VAC input. Confirm the front-panel voltage selection setting before applying power. Incorrect selection can damage the unit.
- Do Not Ignore 24VDC Load Calculation
A replacement supply may operate correctly with no load but fail during full system operation. Check controller modules, I/O modules, communication interfaces, and external devices connected to the DC bus.
- Verify Redundant Power Configuration
The does not create redundancy by itself. For redundant applications, it must be combined with the appropriate SS822 Voting Unit and correctly wired power sources.
