ABB SC510 3BSE003832R1 | Submodule Carrier Without CPU | Advant OCS System Spare
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SC510 |
| Product ID | 3BSE003832R1 |
| Product Type | Submodule Carrier / Communication Module |
| CPU | Without CPU |
| System Family | ABB Advant OCS / Advant Controller 450 |
| Carrier Function | Houses compatible submodules within the controller architecture |
| Width | 486 mm |
| Height | 22.5 mm |
| Depth | 288 mm |
| Net Weight | 0.67 kg |
| Country of Origin | Sweden |
ABB’s product documentation identifies the unit specifically as “ Submodule Carrier without CPU” and classifies the product type as a Communication Module. The published mechanical dimensions are 288 mm depth, 22.5 mm height, and 486 mm width, with a net weight of 0.67 kg.
Product Introduction
ABB 3BSE003832R1 is a submodule carrier used within ABB Advant OCS control-system architecture. Unlike the related SC520, the ABB 3BSE003832R1 does not include a local CPU. Its purpose is to provide the physical and system-level carrier arrangement for compatible submodules rather than perform standalone control processing.
For maintenance teams working on legacy Advant Controller installations, ABB 3BSE003832R1 is therefore a structural system component rather than an interchangeable PLC CPU or general-purpose communication card. ABB’s lifecycle material for the Advant Controller 450 specifically lists the as “Submodule Carrier without CPU,” alongside the SC520 carrier with local CPU.

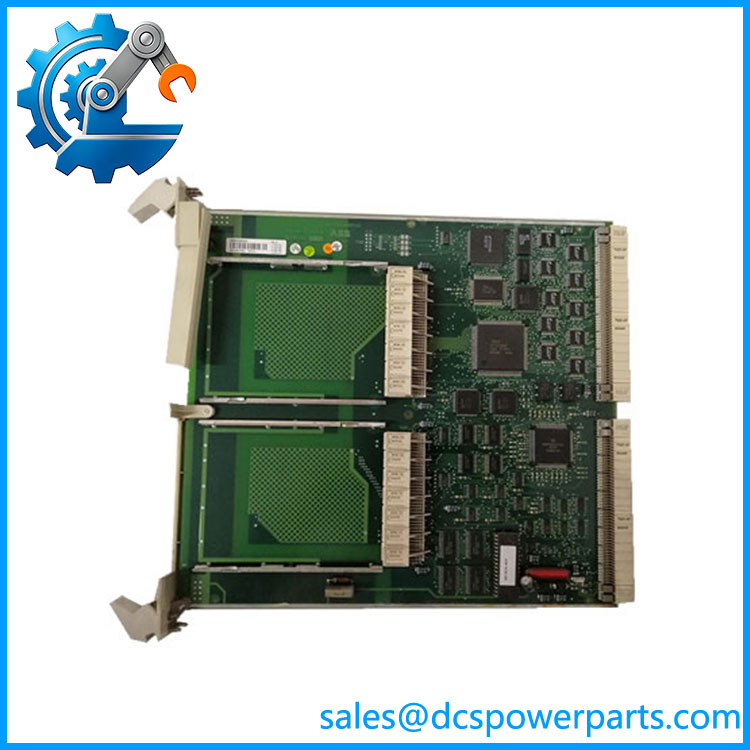

SC510 3BSE003832R1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A common problem in legacy Advant installations is that a carrier can be mistaken for the actual processing hardware because the carrier and its installed submodules form a single physical assembly. That distinction matters during procurement. Replacing an with a CPU-equipped SC520, or assuming that an can operate as a controller by itself, can result in an incorrect spare being ordered.
Typical Applications
- ABB Advant Controller 450 systems — Used as part of the controller’s submodule architecture.
- Advant OCS maintenance — Suitable where the original carrier must be replaced due to physical damage or assembly-level failure.
- Legacy DCS spare management — Useful for maintaining installed-base inventory where original Advant hardware remains in operation.
- System refurbishment — Can be retained as part of an existing compatible Advant hardware configuration when individual submodules are being serviced or replaced.
Technical Pitfalls
1. is not a CPU.
The most important distinction is in the name itself: ABB specifies this version as a Submodule Carrier without CPU. Do not purchase it as a replacement for the SC520 when the application requires the SC520’s integrated local CPU.
2. Do not treat it as an I/O module.
The does not provide a conventional set of analog or digital input/output channels. Its role is associated with the carrier/submodule architecture of the Advant system.
3. Verify the installed submodule configuration.
A carrier replacement should be checked against the exact hardware arrangement in the existing controller. The carrier itself does not determine the complete functionality of the system; the installed submodules and processor architecture do.
4. Check versus SC520 before ordering.
ABB lists 3BSE003832R1 as the carrier without CPU, while 3BSE003816R1 is the submodule carrier including local CPU. They are not equivalent procurement items.
5. Consider lifecycle status.
ABB’s Advant Controller 450 documentation identifies the platform as being in the Classic lifecycle phase. That makes accurate identification of legacy spare hardware particularly important for plant maintenance and long-term inventory planning.
Related Products
- ABB 3BSE003816R1 — Submodule carrier including local CPU; the most important functional distinction from .
- ABB 3BSE003832R1 — CPU-free carrier for compatible Advant submodule configurations.
- ABB CS513 3BSE000435R1 — MB300/MB300E IEEE 802.3 LAN communication module.
- ABB CI532V01 3BSE003826R1 — Two-channel RCOM communication interface.
- ABB CI532V02 3BSE003827R1 — Two-channel MODBUS communication interface.
- ABB CI532V03 3BSE003828R1 — Siemens 3964(R) communication interface.
- ABB CI534V02 3BSE010700R1 — Two-channel MODBUS interface.
- ABB CI522A 3BSE018283R1 — Advant Fieldbus 100 interface.
- ABB PM511V16 3BSE011181R1 — Processor module associated with Advant Controller 450 architecture.
Procurement Note
For a legacy Advant system, order verification should start with the complete installed assembly, not simply the visible board designation. Confirm whether the existing carrier is or , identify the installed submodules, and compare the exact ABB part number before placing the order. ABB’s own lifecycle material lists both 3BSE003832R1 and 3BSE003816R1 separately, which is a useful check against incorrect substitutions.
