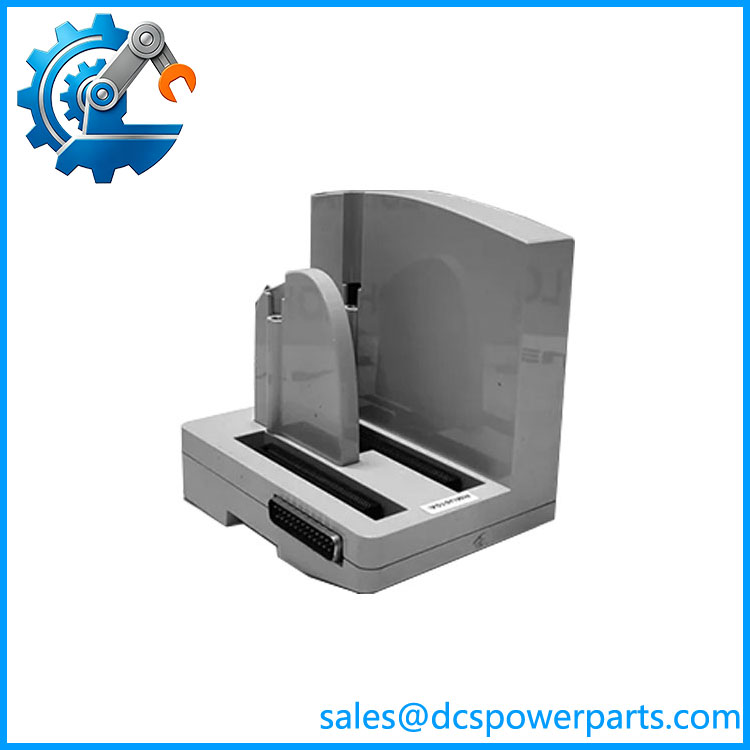

ABB RMU610A Repeater Mounting Unit
Product Introduction
In a Symphony Plus remote-I/O cabinet, the mounting hardware is part of the communication architecture rather than just a mechanical support. ABB RMU610A is the horizontal repeater mounting unit specified for redundant cRBX01A remote bus extender modules. ABB-related hardware records identify 2VAA008425R11 as the RMU610A base, while the earlier RMU610 uses 2VAA008425R1 and is paired with the preceding cRBX01 generation.
RMU610A is a passive mounting/interface component, not an independent controller, network processor, or fiber-optic repeater. Its job is to provide the physical and electrical mounting arrangement required by the cRBX01A architecture. For procurement, the suffix matters: ordering an RMU610 when the cabinet uses cRBX01A hardware can create an otherwise avoidable compatibility problem. Verify the complete assembly, module generation, and cabinet drawing before replacement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | RMU610A |
| ABB Product ID | 2VAA008425R11 |
| Manufacturer | ABB |
| Product Family | Symphony Plus |
| Product Type | Repeater Mounting Unit / Mounting Base |
| Associated Repeater | cRBX01A |
| Application | Redundant remote bus extender installation |
| Mounting Orientation | Horizontal |
| Mounting Style | Horizontal row |
| Communication Bus | HN800, through installed repeater modules |
| Processor | None |
| Standalone Communication Function | None |
| Power Requirement | Provided as part of the associated repeater/base architecture; not an independent processor power specification |
| Fiber Interface | Via cRBX01A, not directly through RMU610A |
| Form Factor | Compact Symphony Plus mounting unit |
| Operating Temperature | Verify from the applicable system documentation |
| Protection Rating | Verify from the applicable system documentation |
ABB’s Symphony Plus documentation identifies the earlier RMU610 as the horizontal repeater mounting unit used with two cRBX01 modules in the HRBX01K02 arrangement. Current hardware listings separately identify 2VAA008425R11 as the base for redundant cRBX01A.
RMU610A
Application Scenarios & Field Considerations
Redundant HN800 Remote I/O
belongs to the physical infrastructure surrounding Symphony Plus remote-bus extension. The active communication work is performed by the cRBX01A modules; provides their mounting and interface arrangement.
This distinction matters during troubleshooting. If the remote I/O link is down, replacing the mounting base without checking the cRBX01A modules, fiber path, HN800 connections, and power distribution may not address the actual fault.
Horizontal Cabinet Installation
The RMU610 family is intended for horizontal-row installation. ABB’s documented cRBX01 architecture uses the mounting unit together with the optical repeater modules to create a redundant remote-bus arrangement.
Symphony Plus Modernization
is particularly relevant when maintaining newer hardware generations within an existing Symphony Plus installation. ABB’s hardware catalog distinguishes the R1 and R11 ordering generations across several related components, including cRBX01/cRBX01A and RMU610/.
Spare-Part Replacement
For a spare, record the complete ordering number rather than purchasing by the generic description “RMU610 base.” 2VAA008425R11 is the useful procurement identifier for .
Related Products
- ABB cRBX01A — 2VAA008424R11 — optical remote bus extender associated with the generation.
- ABB — 2VAA008425R1 — earlier horizontal mounting base for redundant cRBX01 modules.
- ABB cRBX01 — 2VAA008424R1 — earlier-generation optical remote bus extender for HN800.
- ABB VMU610A — 2VAA008999R11 — vertical mounting-base counterpart for redundant cRBX01A installations.
- ABB VMU610 — 2VAA008999R1 — earlier vertical base associated with cRBX01.
- ABB HRBX01K02A — newer horizontal redundant bus-extension kit associated with the cRBX01A/ generation.
- ABB HRBX01K02 — earlier redundant kit consisting of two cRBX01 modules and one base.
- ABB HRBX01K04A — four-module horizontal bus-extension arrangement for the newer hardware generation.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse with .
This is the first procurement check. is 2VAA008425R1, while is 2VAA008425R11. The associated repeater generation changes at the same time.
2. Do not mistake the base for the repeater.
does not perform the optical conversion itself. The cRBX01A is the active optical remote bus extender. ABB describes the earlier as the mounting unit for the cRBX01 modules.
3. Match the complete hardware generation.
If the installed system uses cRBX01A, verify that the base is . Do not assume that an older is interchangeable merely because the mechanical function appears similar.
4. Do not specify fiber characteristics against itself.
Fiber specifications belong to the associated cRBX01A repeater and the HN800 optical link. The mounting base should not be advertised as having its own optical interface.
5. Verify whether the purchase is for a base or a complete kit.
A single is different from a bundled redundant repeater kit. Confirm whether the requirement includes the cRBX01A modules, mounting hardware, and associated bus accessories.
6. Inspect the cabinet before removing the base.
Because this component participates in the physical interconnection of the repeater architecture, document the existing bus arrangement and module positions before replacement. Mechanical fit alone is not sufficient evidence of system compatibility.
FAQ
What is ABB ?
ABB is a horizontal repeater mounting unit/base for redundant cRBX01A remote bus extenders in the Symphony Plus platform. The identified ABB ordering number is 2VAA008425R11.
What is the ABB part number for ?
The documented ordering number is 2VAA008425R11. This should be preferred over relying only on the abbreviated model designation .
Is the same as ?
No. is identified as 2VAA008425R1 and is associated with redundant cRBX01 modules. is 2VAA008425R11 and is associated with the newer cRBX01A generation.
Is an active communication module?
No. It is a mounting/interface base. The active optical communication function belongs to the associated cRBX01A repeater modules. ABB’s documentation describes the cRBX01 as the fiber-optic repeater and as its mounting unit.
What module is installed on ?
is associated with cRBX01A redundant remote bus extender modules. Current ABB-related product records explicitly pair 2VAA008425R11 with cRBX01A.
Can be used as a standalone HN800 communication interface?
No. is not a standalone communication processor. It provides the mounting/interconnection arrangement for the applicable remote bus extender architecture.
What should be checked before purchasing ?
Confirm the model , ordering number 2VAA008425R11, installed repeater type cRBX01A, horizontal mounting arrangement, and the complete Symphony Plus cabinet configuration. If the existing equipment is labeled with cRBX01, do not automatically substitute the A-version without confirming the system hardware generation.
