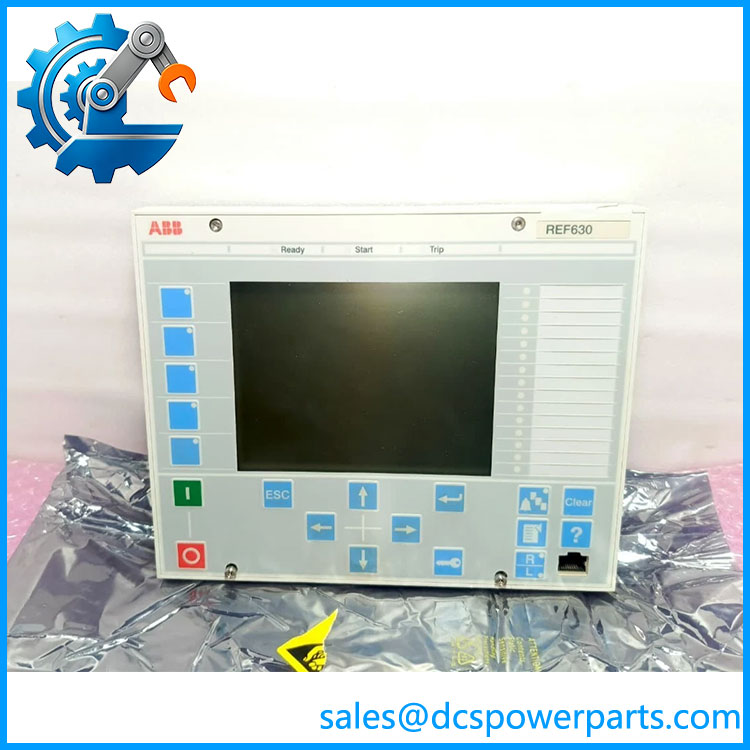

ABB REF630 VBFNBAADAAAZCNBBXD Feeder Protection and Control IED

Key Technical Specifications

ABB describes REF630 as a freely configurable feeder IED intended for radial, looped, and meshed distribution networks, including systems with distributed generation. Its documented protection portfolio includes phase and earth-fault protection, voltage and frequency functions, breaker-failure protection, fault location, and other feeder-specific functions.

The complete VBFNBAADAAAZCNBBXD ordering code is important. REF630 ordering codes encode hardware and software configuration, so the base name alone is not sufficient for an exact replacement. ABB’s ordering documentation explicitly uses the ordering code to identify the device configuration.

REF630 VBFNBAADAAAZCNBBXD

Product Introduction

The ABB VBFNBAADAAAZCNBBXD is a configured member of ABB’s Relion 630 family for feeder protection, control, measurement, and supervision. It is designed for medium-voltage distribution applications involving overhead lines and cable feeders, with protection and control functions integrated into one IED. can also provide feeder-bay control for circuit breakers, disconnectors, and earthing switches.

For an installed system, the full ordering code matters more than the family name. Hardware I/O, communication interfaces, HMI arrangement, power supply, and enabled functions can vary with the configured order code. A replacement therefore needs to match the installed hardware and engineering configuration rather than simply matching the front-panel appearance.

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

The main replacement risk with VBFNBAADAAAZCNBBXD is configuration mismatch. Protection IEDs are tightly integrated with CT/VT ratios, protection settings, breaker logic, interlocking, GOOSE signals, SCADA mappings, and station communication. A replacement relay that is electrically compatible but carries a different hardware configuration or firmware level can still require substantial engineering work before it can be commissioned.

Typical Applications

• Medium-voltage feeder protection: Protection of overhead lines and cable feeders in utility distribution networks.
• Industrial distribution: Feeder protection, measurement, breaker control, and electrical-system supervision.
• Ring and meshed networks: supports feeder applications beyond simple radial distribution arrangements.
• Feeder-bay automation: Control and interlocking of breakers, disconnectors, and earthing switches.

Technical Pitfalls to Avoid

1. Do not order from “” alone. Preserve the complete VBFNBAADAAAZCNBBXD code when sourcing a replacement.
2. Verify CT and VT configuration. Incorrect ratios, polarity, phase sequence, or grounding can make otherwise correct protection settings ineffective.
3. Back up the existing configuration before replacement. Preserve protection settings, logic, signal mappings, communication parameters, and disturbance-recording configuration.
4. Check IEC 61850 engineering. GOOSE subscriptions, datasets, logical-node assignments, and station configuration may need verification after an IED replacement.
5. Verify breaker-control logic separately. Trip, close, anti-pumping, interlocking, breaker-failure, and disconnector status logic should be checked against the approved drawings.
6. Do not assume identical firmware behavior. has multiple product versions and connectivity packages; verify the installed firmware and PCM600 compatibility before migration.
7. Check the analog configuration. The platform supports RTD/mA inputs and mA outputs, but the exact availability depends on the ordered hardware configuration.
8. Treat lifecycle status as a procurement issue. ABB lists as inactive since 2024, so long-term replacement planning should account for the installed base and available engineering documentation.

Related Products

• — Same Relion 630 feeder protection platform; the exact hardware and software configuration must be checked against the complete order code.
• ABB REF615 — Relion feeder protection IED from the 615 family; architecture and configuration are different from .
• ABB REF620 — Relion feeder protection and control IED intended for distribution applications; not an automatic hardware replacement.
• ABB REF610 — Earlier feeder protection relay family; legacy architecture and engineering tools differ from .
• ABB RET630 — Relion 630-series transformer protection and control IED; same broader 630 family but a different primary application.
• ABB REC630 — Relion 630-series bay control IED; oriented toward bay control rather than the feeder-protection role of .
• ABB RED630 — Relion 630-series line differential protection IED; different protection philosophy and application from .

The platform itself supports several predefined feeder configurations, including radial feeder, loop/meshed feeder, overhead/mixed feeder, and bus-section applications. The exact enabled functions depend on the configured IED.

Procurement Note

For ABB VBFNBAADAAAZCNBBXD, procurement should verify the complete ordering code, hardware revision, firmware version, auxiliary supply, CT/VT inputs, binary I/O, communication interfaces, HMI arrangement, PCM600 project, and IEC 61850 station configuration.

ABB’s official documentation confirms that is a configurable Relion 630-series feeder protection and control IED and that the product became inactive in 2024. For a working substation, the safest replacement check is therefore not simply “same model”; compare the complete ordering code and engineering configuration against the installed relay before approving the replacement.
