Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | REF615C_C |
| Ordering Code | HCFFAEAGANB2BAN1XC |
| Manufacturer | ABB |
| Product Family | Relion® 615 Series |
| Product Type | Feeder Protection and Control Relay |
| Application | Medium-voltage feeder protection and automation |
| Current Inputs | 1 A / 5 A CT input options (configuration dependent) |
| Voltage Inputs | Phase voltage measurement inputs (configuration dependent) |
| Auxiliary Supply | 24–265 VDC / 100–240 VAC (hardware dependent) |
| Protection Functions | Overcurrent, earth fault, directional protection, voltage/frequency functions |
| Communication Protocols | IEC 61850, GOOSE, Modbus TCP/RTU, DNP3, IEC 60870-5-103 |
| Communication Interface | Ethernet and serial communication interfaces |
| Time Synchronization | SNTP / IRIG-B / IEEE 1588 options depending on configuration |
| I/O Configuration | Binary inputs and outputs based on ordering code |
| Display | Graphical LCD local HMI |
| Mounting | Withdrawable panel-mounted relay unit |
| Engineering Tool | ABB PCM600 |
| Operating Temperature | Approx. -25°C to +55°C |
| Protection Standard | IEC 60255 series |
Product Introduction

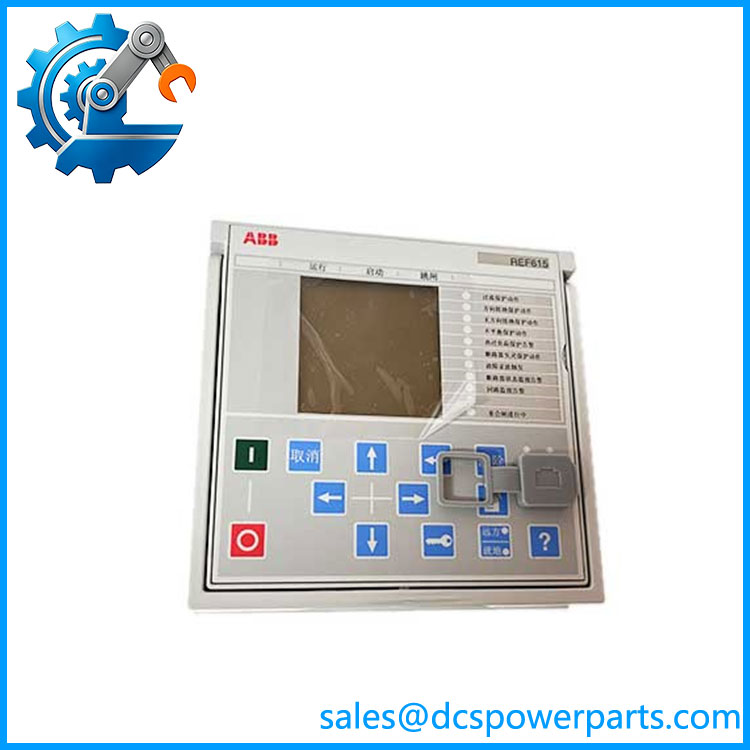

ABB REF615C_C HCFFAEAGANB2BAN1XC Product Introduction
ABB REF615C_C HCFFAEAGANB2BAN1XC is a Relion 615 series feeder protection and control relay designed for medium-voltage distribution networks. It combines electrical protection, breaker control, measurement, event recording, and substation communication functions inside a single IED platform.
The main value of ABB REF615C_C HCFFAEAGANB2BAN1XC is maintaining established feeder protection schemes where IEC 61850 integration, relay coordination, and configuration continuity are critical. Before replacement, verify the complete ordering code, PCM600 project file, communication settings, CT/PT configuration, and protection parameters.
REF615C_C HCFFAEAGANB2BAN1XC
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium-voltage feeder trips unexpectedly during normal operation. The breaker operates correctly, but the protection relay event record shows unclear fault information or communication with SCADA is lost.
This is where relay replacement becomes more than a hardware swap. Protection settings, IEC 61850 engineering files, and I/O mapping determine whether the replacement unit returns the feeder to service correctly.
Typical Applications
- Electrical Substations – Medium-voltage feeder protection, breaker control, and fault recording.
- Industrial Plants – Factory power distribution systems protecting motors, transformers, and process feeders.
- Renewable Energy Facilities – Collector feeder protection and grid interconnection monitoring.
- Utility Distribution Networks – Overhead line and cable feeder protection with remote supervision.
Technical Pitfalls to Avoid
- Do Not Ignore the Full Ordering Code
The REF615 family includes many hardware configurations. The suffix defines I/O quantity, communication options, and measurement capability. Confirm the exact code before installation. - Restore PCM600 Configuration Correctly
The relay hardware alone does not contain the complete protection engineering. Restore the correct parameter file, logic configuration, communication settings, and IEC 61850 configuration. - Verify CT/PT Settings Before Energization
Incorrect transformer ratios or polarity settings can cause incorrect measurements and unwanted trips. Perform secondary injection testing before returning the feeder to operation.
Related Products
- ABB REF615E
Advanced feeder protection relay variant with expanded protection and measurement options. Used when additional voltage-based protection functions are required. - ABB REF615F
REF615 configuration supporting directional overcurrent and directional earth fault protection with voltage measurement functions. - ABB REF620
Higher-capability feeder protection relay platform for applications requiring additional I/O, protection functions, and automation logic. - ABB REC615
Bay control and protection relay designed for distribution automation and switchgear control applications. - ABB REM615
Motor protection relay from the same Relion 615 family. Used for medium-voltage motor protection instead of feeder protection. - ABB RET615
Transformer protection relay for medium-voltage transformer applications. - ABB PCM600
Engineering software platform used for configuring ABB Relion protection relays, including REF615. - ABB RIO600
Remote I/O expansion module used with selected ABB protection relay systems to increase binary input/output capacity.
