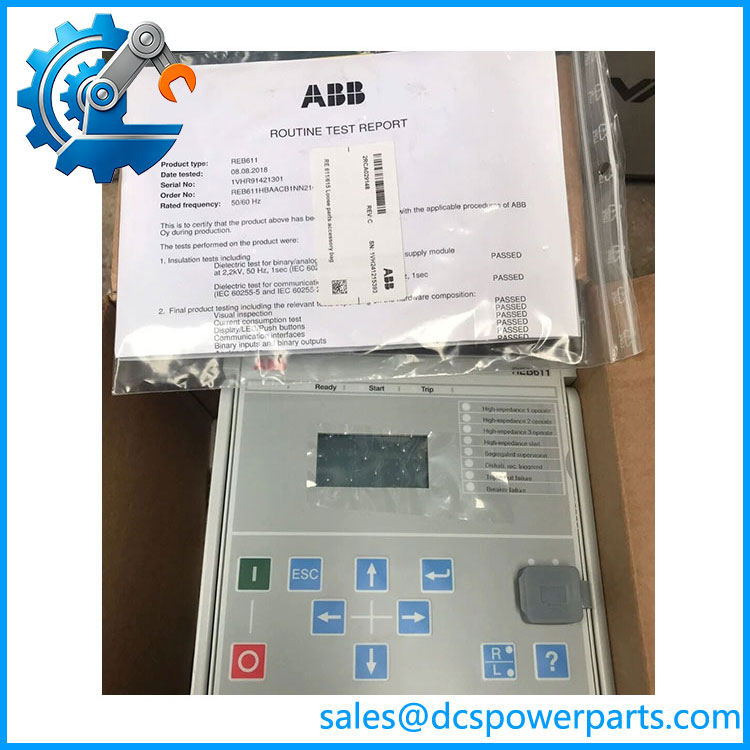

ABB REB611HBAANA1NN11G Relion 611 Busbar Protection Relay
Product Overview
The ABB REB611HBAANA1NN11G belongs to ABB’s Relion 611 protection and control platform and is based on the REB611 busbar protection IED. ABB describes the REB611 as a dedicated relay for phase-segregated short-circuit protection, control, and supervision of single busbars using high-impedance differential protection. It is intended for both utility substations and industrial power systems, with additional application capability for restricted earth-fault and residual earth-fault protection of generators, motors, transformers, and reactors.
Unlike a conventional feeder relay, the REB611 is built around a busbar differential protection scheme. Its standard configuration includes three phase-specific high-impedance differential protection functions, together with non-directional earth-fault protection, circuit-breaker failure protection, master trip logic, circuit-breaker control, trip-circuit supervision, CT supervision, disturbance recording, and current measurement.
The ABB REB611HBAANA1NN11G should therefore be treated as a complete protection IED rather than a simple CT input module. The relay consists of a plug-in unit and case, with the hardware architecture providing the HMI, auxiliary supply/output functions, current and binary inputs, and optional communication hardware. ABB documentation identifies configuration A with three differential phase-current inputs, one residual-current input, four binary inputs, and six binary outputs.
For retrofit work, the complete suffix remains important. Public ABB documents establish the REB611 family and its functional architecture, but they do not provide a sufficiently reliable public decode of every character in HBAANA1NN11G. Procurement should therefore use the exact nameplate and original ABB ordering information rather than assuming that every REB611 with a similar-looking suffix has identical hardware.
Product Introduction
Busbar protection leaves little room for casual substitution. A relay that powers up and communicates correctly can still be unsuitable if its CT inputs, auxiliary supply, binary I/O, communication module, or programmed protection scheme do not match the existing installation.
The REB611HBAANA1NN11G is intended for a high-impedance busbar protection architecture. For a DCS/substation upgrade or legacy replacement, preserve the original CT arrangement, stabilization philosophy, trip logic, and relay settings rather than treating the replacement as a generic protection relay.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | REB611HBAANA1NN11G |
| Base Relay | REB611 |
| Manufacturer | ABB |
| Product Family | Relion |
| Product Series | 611 |
| Product Type | Busbar protection and control IED |
| Primary Protection | High-impedance differential |
| Busbar Application | Single busbar |
| Differential Inputs | 3 phase-current inputs |
| Residual Current Input | 1 |
| Current Input Rating | 1 A or 5 A; exact ordered rating must be verified |
| Sensitive Residual Input | 0.2/1 A option may be available depending on hardware |
| Binary Inputs | 4 in configuration A |
| Binary Outputs | 6 in configuration A |
| Auxiliary Supply | Configuration-dependent; documented variants include 24–60 VDC and 48–250 VDC / 100–240 VAC ranges |
| Protection Functions | High-impedance differential, earth fault, breaker failure, master trip |
| Control Functions | Circuit-breaker control |
| Supervision | Trip-circuit and CT supervision |
| Recording | Disturbance recorder and fault recorder |
| Communication | IEC 61850; optional Modbus and redundancy functions depending hardware/software |
| Engineering Tool | ABB PCM600 |
| HMI | Local HMI plus Web HMI capability |
| Construction | Withdrawable plug-in unit and case |
The table deliberately separates family-level documented specifications from the exact suffix. ABB documentation confirms the hardware architecture and these configuration capabilities, but the public sources do not safely decode every character of HBAANA1NN11G; those exact order-code attributes should be verified against the installed nameplate.
REB611
Major Features / Practical Advantages
High-Impedance Busbar Differential Protection
The is designed specifically for high-impedance differential protection. In this scheme, CT secondary circuits from the protected zones are combined so that an external fault produces a stable condition while an internal busbar fault generates the differential condition required for tripping.
That is fundamentally different from ordinary feeder overcurrent protection. CT class, saturation characteristics, lead resistance, stabilizing resistor arrangements, and the associated protection calculations remain critical. The relay itself cannot compensate for an incorrectly engineered CT circuit.
Three Phase-Segregated Differential Functions
The standard configuration provides separate high-impedance differential protection functions for phases A, B, and C. ABB’s standardized configuration identifies these as individual phase protection functions.
This phase segregation is important in busbar protection because the relay must distinguish the phase involved in an internal fault rather than simply producing a single undifferentiated differential trip.
CT Supervision
The standard configuration includes phase-segregated CT supervision functions. ABB specifically lists CT supervision for the high-impedance protection scheme.
For field engineers, this is a significant diagnostic feature. An abnormal CT secondary circuit can compromise a high-impedance scheme, so supervision provides information that would not be available from a simple protection pickup indication.
Circuit-Breaker Failure and Master Trip
The includes circuit-breaker failure protection and master-trip functions in its standard protection configuration. Circuit-breaker control and trip-circuit supervision are also included in the documented architecture.
This allows the IED to participate directly in the substation trip logic rather than operating solely as a measurement device.
IEC 61850 Substation Integration
ABB documents IEC 61850 communication for the 611 family, including fast GOOSE messaging. Later documentation also supports IEC 61850 Edition 2, while HSR and PRP redundancy and IEEE 1588 time synchronization are available with appropriate hardware/software configurations.
Do not assume that every physical contains every communication option. Communication hardware is part of the ordered configuration, so the exact rear-panel ports and configuration should be checked.
PCM600 Engineering
ABB’s Protection and Control IED Manager, PCM600, provides configuration and maintenance functions for the . The documented connectivity package supports configuration, disturbance handling, event viewing, fault records, firmware updates, HMI filtering, IEC 61850 configuration, parameter setting, signal matrix functions, and signal monitoring.
That makes the engineering backup just as important as the hardware during replacement. A replacement relay without the correct parameter set is not a completed protection replacement.
Withdrawable Construction
The Relion 611 family uses a withdrawable-unit construction. ABB describes the relay as consisting of a plug-in unit and case, allowing the electronic assembly and the fixed case/wiring interface to be treated as separate mechanical elements.
This is useful during maintenance, but it should not be interpreted as permission to withdraw the relay under energized conditions. Busbar protection equipment requires an approved switching and isolation procedure.
Related Products
- — Base Relion 611 busbar protection IED using high-impedance differential protection.
- ABB REF611 — Relion 611 feeder protection relay; intended for feeder protection rather than dedicated busbar differential protection.
- ABB REM611 — Relion 611 motor protection relay for motor applications.
- ABB REU611 — Relion 611 voltage protection relay.
- ABB RED615 — Relion 615 line differential protection relay for applications requiring a different protection architecture.
- ABB REF615 — Relion 615 feeder protection and control IED with a broader feeder-protection application.
- ABB REB650 — Higher-level Relion busbar protection platform for more extensive busbar protection requirements.
- ABB PCM600 — ABB Protection and Control IED Manager used for configuration and engineering.
- ABB Relion 611 Series — Product family covering feeder, motor, voltage, and busbar protection applications.
FAQ
What is ABB REB611HBAANA1NN11G?
It is an ABB Relion 611-series protection IED configured for busbar protection. The is specifically designed for high-impedance differential protection of single busbars, with additional earth-fault, breaker-failure, control, supervision, and recording functions.
Is a PLC or DCS I/O module?
No. It is an electrical protection IED. It can exchange information with a substation automation system through supported communication interfaces, but its primary job is detecting electrical faults and initiating protection/control actions.
What protection functions are included?
The documented standard configuration includes three phase-segregated high-impedance differential functions, non-directional earth-fault protection, circuit-breaker failure protection, master trip, circuit-breaker control, trip-circuit supervision, CT supervision, disturbance recording, and measurement functions.
Does support IEC 61850?
Yes. ABB documents IEC 61850 support for the /611 family, including GOOSE messaging. Later product versions support IEC 61850 Edition 2. HSR, PRP, and IEEE 1588 functions depend on the installed communication hardware and software version.
Can I hot-swap the ?
Do not assume hot-swapping is permitted simply because the 611 series uses a withdrawable plug-in unit. Busbar protection may directly control circuit-breaker trip circuits. The protection scheme must be placed in the approved maintenance state and the relevant CT/trip circuits isolated or otherwise controlled according to the substation switching procedure before withdrawing the relay.
Does support Modbus?
The 611 application documentation identifies Modbus TCP/IP or RTU/ASCII as optional communication functionality. The exact physical communication module and protocol configuration must be verified on the specific relay.
Can this relay be used for transformer or motor protection?
Yes, but only for the documented restricted-earth-fault or residual-earth-fault applications. The ‘s primary role is high-impedance busbar protection; it should not be treated as a general-purpose motor or transformer protection relay simply because ABB documents these additional applications.
Does the exact suffix HBAANA1NN11G determine the hardware?
Yes, the full ABB ordering code is intended to distinguish hardware/configuration attributes. The problem is that the public documents I located do not provide a reliable character-by-character decode of HBAANA1NN11G. For a replacement, use the original nameplate and ABB order documentation rather than guessing at individual suffix characters.
What should I verify before purchasing a replacement?
Verify the complete ordering code, rated CT inputs, residual-current input, auxiliary supply, binary I/O arrangement, communication module, IEC 61850 edition, firmware version, PCM600 compatibility, front-panel/HMI configuration, existing protection settings, CT wiring scheme, and trip logic.
For used or New Surplus equipment, request clear photographs of the complete nameplate and rear connectors. A relay that is electrically similar at the family level is not automatically a valid replacement for a specific busbar protection scheme.
Procurement Note
The should be purchased as a configured protection IED, not simply as an family relay.
The key engineering checkpoint is the existing high-impedance busbar protection scheme: CT ratios and class, CT secondary wiring, stabilizing components, trip logic, breaker-failure logic, auxiliary supply, I/O allocation, and communication configuration all need to remain consistent after replacement.
ABB documentation confirms the ‘s role as a dedicated high-impedance busbar protection IED and documents its standard configuration and 611-series communication architecture. Because the public documentation does not safely decode every character of HBAANA1NN11G, I would not claim unverified suffix-level specifications. For procurement, the exact nameplate and original project configuration file should be treated as the final compatibility reference.
