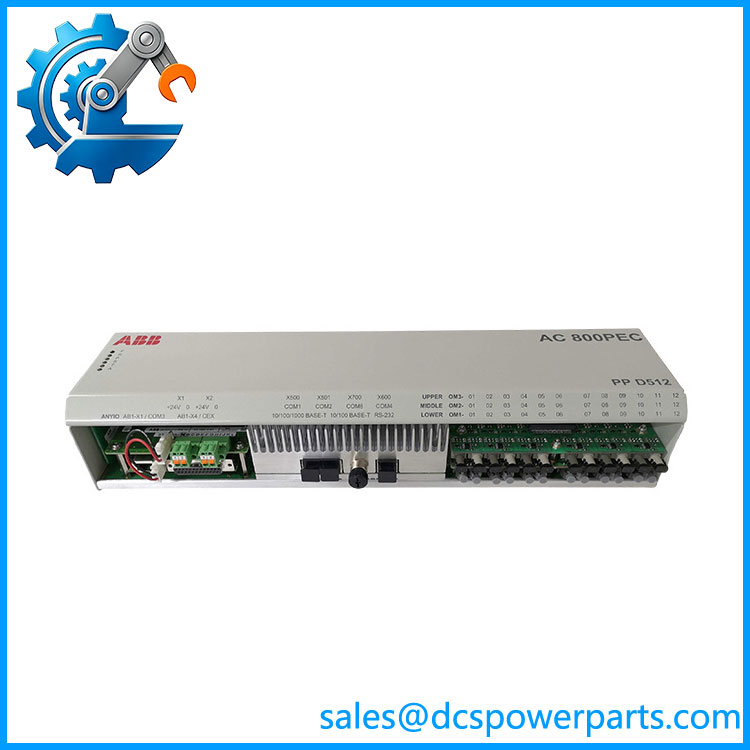

ABB PPD512 A10-15000 3BHE040375R1023 | AC 800PEC Controller Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type designation | PPD512 A10-15000 |
| Product ID | 3BHE040375R1023 |
| Product family | AC 800PEC |
| Hardware type | Controller / processing module |
| Primary application | Power electronics and excitation control |
| Control architecture | AC 800PEC |
| Engineering environment | ABB AC 800PEC engineering/control environment |
| I/O architecture | Application-dependent; typically integrated with associated AC 800PEC I/O hardware |
| Exact supply voltage | Verify against the installed AC 800PEC system documentation |
| Exact CPU/memory specification | Verify against ABB hardware documentation for the installed revision |
| Exact communication interfaces | Verify against system configuration and hardware revision |
| Mounting/environmental ratings | Verify against the applicable AC 800PEC hardware documentation |
ABB AC 800PEC is designed for demanding power-control applications, including generator excitation and industrial process control. ABB documentation describes the platform as a modular architecture capable of high-speed control and redundant controller arrangements in suitable applications.
Product Introduction
The ABB PPD512 A10-15000 3BHE040375R1023 is an AC 800PEC controller module intended for specialized power-control applications. In generator excitation systems, AC 800PEC hardware is used where short control cycles and deterministic processing are important, rather than as a conventional plant-floor PLC performing ordinary discrete I/O scanning.
The PPD512 should therefore be treated as a controller/platform component within a larger AC 800PEC system. Public reseller descriptions sometimes label the part as a protection relay, encoder interface, digital output module, or generic I/O controller; those descriptions conflict with the more consistent identification of the part as an AC 800PEC controller.
PPD512 A10-15000 3BHE040375R1023
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main replacement issue is system compatibility rather than simply obtaining a board with the same physical dimensions. AC 800PEC applications are normally engineered around a specific controller revision, application software, I/O architecture, and power-electronics interface.
Typical Applications
- Generator excitation systems — high-speed control and regulation within excitation equipment.
- Power-electronics control — deterministic control of converter and power-electronic processes.
- Industrial drive and converter systems — specialized applications requiring fast control execution.
- Legacy AC 800PEC maintenance — replacement of controller hardware while retaining an existing application architecture.
Technical Pitfalls to Avoid
- Do not treat PPD512 as a protection relay. Some current listings describe it as a generator/motor protection relay with functions such as 87G, 64G and 46. Those claims are not consistent with the AC 800PEC controller identification.
- Do not assume generic 24 VDC specifications are sufficient. One reseller publishes 24 VDC/2 A, while other pages publish completely different electrical figures. These should not be treated as verified PPD512-specific ratings.
- Do not substitute an ordinary AC 800M CPU. AC 800PEC is a specialized power-control platform; controller architecture, application software and high-speed I/O requirements must be checked together.
- Preserve the application configuration. Before replacement, document controller revision, application software, parameter files, I/O mapping and communication configuration.
Related Products
- ABB PCD235C101 3BHE057901R0101 — AC 800PEC processing/controller hardware for related power-control architectures.
- ABB PPD517A3011 3BHE051476R3011 — related ABB power-control controller family.
- ABB PM511V08 3BSE011180R1 — ABB controller hardware from a different control-platform family; not a direct substitute.
- ABB PPD115A102 3BHE017628R0102 — related PPD-series power-control hardware.
- ABB PPD113B01-10-150000 3BHE023784R1023 — related PPD-series module with a different hardware configuration.
- ABB PPD113B03-26-100110 3BHE023584R2634 — another PPD-series configuration used in specialized power-control systems.
- ABB GFD563A101 3BHE046836R0101 — related excitation/power-control hardware appearing in AC 800PEC system inventories.
- ABB BC810K02 3BSE031155R1 — ABB bus-related hardware, functionally different from the controller.
Procurement Note
For A10-15000 3BHE040375R1023, the complete designation should be specified on the purchase order:
ABB A10-15000 — Product ID 3BHE040375R1023.
Before installation, match the AC 800PEC system generation, controller revision, application software, I/O configuration, excitation-system architecture, and stored parameters. Do not approve a substitute based on a generic description such as “ABB control module” or “24 VDC automation controller.”
The most defensible identification is ABB AC 800PEC controller hardware for specialized power-control/excitation applications, rather than an S800 I/O module or conventional protection relay.
