Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PPC380AE02 |
| Manufacturer | ABB |
| Associated Part Number | HIEE300885R0102 |
| Product Type | Control / Processing Module |
| Hardware Family | PPC380 |
| Mounting | System-specific rack or backplane installation |
| Processor | Reported as processor-based control hardware; exact CPU specification requires OEM verification |
| Communication Interfaces | Not sufficiently verified |
| Supply Voltage | Not sufficiently verified |
| I/O Configuration | Not sufficiently verified |
| Dimensions | Not sufficiently verified |
| Operating Temperature | Not sufficiently verified |
| Protection Rating | Not sufficiently verified |
| Firmware | Host-system dependent; verify revision compatibility before commissioning |
Important: Available technical listings disagree about the exact classification and electrical specifications of PPC380AE02. Some identify it as a control/processing unit, while others describe it as an adapter or analog I/O module. The most consistent identification is PPC380AE02 / HIEE300885R0102.
Product Introduction
The ABB PPC380AE02 is a specialized ABB control and processing module identified with the part number HIEE300885R0102. It is associated with ABB industrial control hardware and is intended for installation within a compatible system rather than general-purpose PLC use.
The practical advantage is exact hardware replacement when maintaining an existing ABB installation. For an aging control cabinet, matching the complete part number and hardware revision is far more important than relying on a generic description such as “processor module” or “I/O module.”

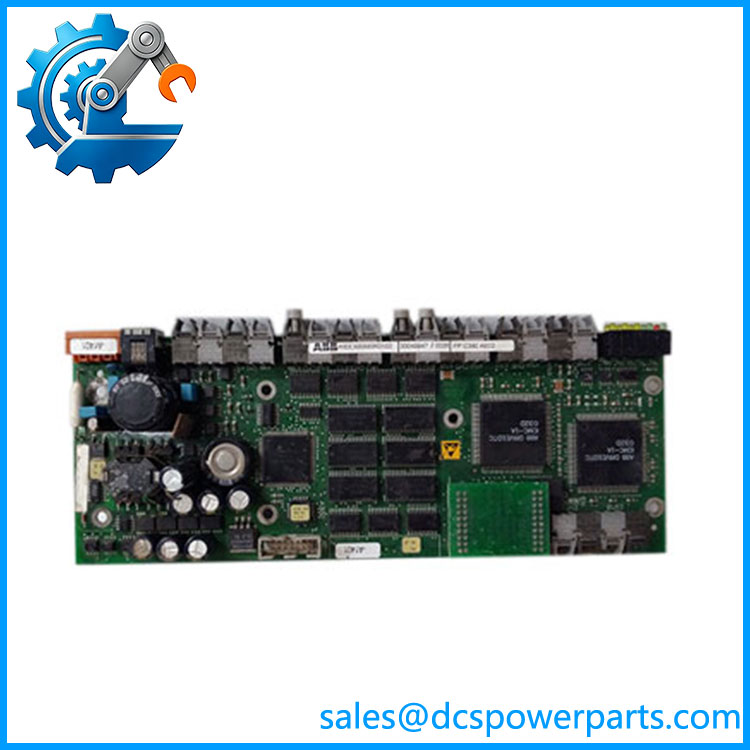

PPC380AE02
Application Scenarios & Field Pitfalls
Engineering Pain Point
A failed legacy control board can turn a routine maintenance job into a long troubleshooting exercise. The replacement may physically fit and still fail system initialization because the board revision, configuration, firmware, or associated hardware does not match. PPC380AE02 deserves that level of scrutiny because available secondary descriptions are inconsistent.
Typical Applications
- Power and Electrical Control — Replacement of specialized ABB processing/control hardware in installed control cabinets.
- Industrial Automation — Maintenance of legacy ABB electronic control assemblies.
- Process Plants — Planned spare-part inventory for aging ABB automation equipment.
- Heavy Industrial Systems — Emergency replacement where an exact PPC380-series board is required.
Technical Pitfalls to Avoid
- Verify the complete identification.
Match PPC380AE02 with HIEE300885R0102, then compare the board label, revision, connectors, and cabinet position. Do not order from “PPC380” alone. - Do not trust generic specifications.
Published listings give conflicting descriptions for this part, including control board, processing unit, adapter module, and analog I/O module. Those classifications are not enough to establish interchangeability. - Confirm the host system before energization.
Check the system drawings, firmware requirements, configuration files, backplane arrangement, and adjacent modules. A matching label does not automatically prove system compatibility. - Handle the board as ESD-sensitive electronics.
Use proper grounding and ESD controls during inspection and installation. Check connectors and PCB condition before inserting the module into the rack.
Related Products
- ABB PPC380AE102 — Closely related PPC380 hardware identified separately from . The different suffix is significant; treat it as a related board, not an automatic substitute.
- ABB PPC380AE01 — Another PPC380-series control-board designation. It is useful when checking older cabinet records, but the AE01 and AE02 suffixes should be verified against the installed system before interchange.
- ABB PPC322AEV01 — ABB control processor board used in a different control application. It can be relevant when tracing the architecture of an ABB power-control system, but it should not be selected as a direct replacement without engineering confirmation.
- ABB PPC905AE101 — ABB PPC-series control board associated with frequency-converter applications. Its function differs from , making it a related reference for system-level troubleshooting rather than a direct substitute.
- ABB PPC902CE101 — Another PPC-family control module. The different hardware designation indicates a different application, so compatibility must be established from the actual system documentation.
- ABB PPC907BE — Higher-level ABB processing/control hardware referenced with . It may be relevant when evaluating the broader control architecture, but it is not a drop-in replacement.
- ABB HIEE300885R0101 — Closely related HIEE300885 hardware identifier. The differing final digit is important and should be checked against the original board revision and system compatibility documentation.
- ABB 3BHE039203R0101 — Related ABB communication/interface hardware. It may support surrounding control architecture but serves a different function from .
Procurement takeaway: For , use + HIEE300885R0102 as the primary identification pair. Do not approve a replacement based only on the words “processor,” “control board,” or “analog module.” The available descriptions conflict, so the original board label, revision, host equipment, and system documentation should be checked before installation.
