Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PP871 3BSE069270R1 |
| Manufacturer | ABB |
| Product Family | Panel 800 Version 6 |
| Product Type | Operator Panel / HMI |
| Display | 4.3-inch TFT-LCD |
| Resolution | 480 × 272 pixels, 16:9 |
| Display Colors | 64K |
| Backlight | LED |
| Brightness | 350 cd/m² |
| Viewing Angle | 140° horizontal / 115° vertical |
| Touch Technology | Resistive touch |
| Processor | ARM9, 400 MHz |
| Main Memory | 128 MB DDR2 |
| Application Memory | 80 MB |
| Ethernet | 1 × shielded RJ45, 10/100 Base-T |
| USB | 1 × USB 2.0, maximum 200 mA |
| Serial Interfaces | 2 × RS232 and 2 × RS422/485 combined ports |
| SD Card | 1 × SD card slot |
| Power Supply | +24 VDC, 18–32 VDC |
| Power Consumption | 3.6 W |
| Operating Temperature | −10 to +60 °C |
| Storage Temperature | −20 to +70 °C |
| Relative Humidity | 5–85%, non-condensing |
| Front Protection | IP66 |
| Rear Protection | IP20 |
| Dimensions | 145 × 103 × 49 mm |
| Panel Cutout | 128 × 87 mm |
| Mounting | Panel mount; VESA 50 × 50 |
| Net Weight | Approx. 0.5 kg |
| Certifications | CE, UL, DNV |
| Battery | Rechargeable battery for 3BSE069270R1 |
ABB’s technical documentation identifies the PP871 as a compact Panel 800 Version 6 operator panel with a 4.3-inch display, resistive touch interface, 10/100 Ethernet, USB, serial communications, and 24 VDC power.
Revision note: Do not casually substitute 3BSE069270R2 for 3BSE069270R1 based only on the PP871 designation. ABB’s later documentation lists R2 as the current article number, while the older R1 documentation specifically identifies the rechargeable-battery configuration. For an installed system, verify the exact article number and hardware revision before replacement.
Product Introduction
The ABB PP871 3BSE069270R1 is a 4.3-inch touchscreen operator panel from the Panel 800 Version 6 family. It provides the local HMI layer between operators and PLC, DCS, or machine-control applications, combining a 480 × 272 TFT display with resistive touch, Ethernet, USB, and serial communication interfaces. The compact 145 × 103 mm housing is suited to control cabinets and machine panels where installation space is limited.
For maintenance teams, the key issue is not simply finding another PP871. The R1 article number matters because ABB specifically documents a rechargeable battery for 3BSE069270R1. Existing projects should also be checked for Panel Builder version, application image, communication configuration, and panel cutout dimensions before treating a replacement as electrically and mechanically equivalent.

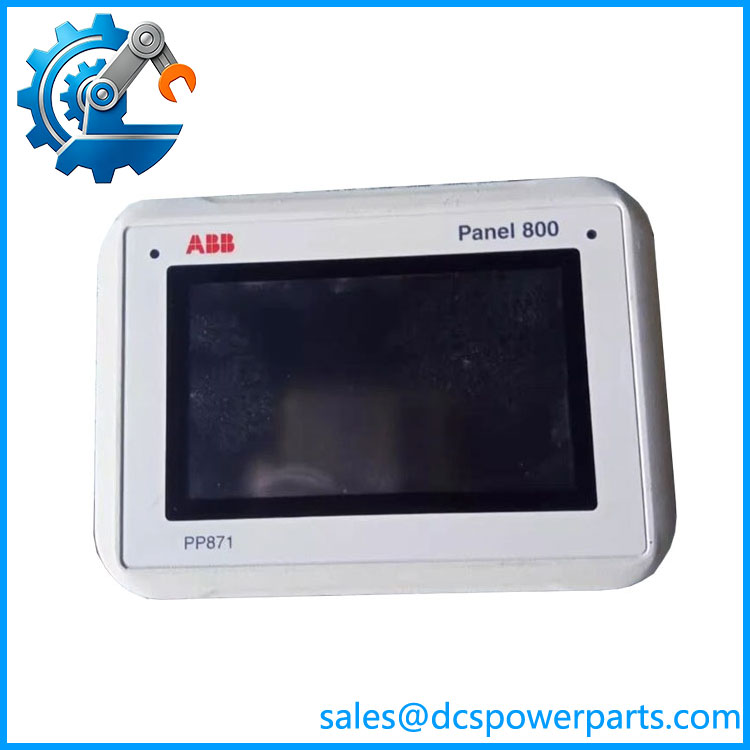

PP871 3BSE069270R1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed operator panel can stop an otherwise healthy PLC or DCS-controlled machine because the HMI contains the operator screens, alarms, setpoints, and communication configuration needed for normal operation. With PP871 3BSE069270R1, the most common procurement mistake is identifying the unit only as a “4.3-inch ABB HMI.” The article number, firmware/application image, communication ports, and battery revision should all be checked against the installed unit.
Typical Applications
- Process automation panels — local operator control and status visualization for compact process skids.
- Machine automation — touchscreen control for production equipment where cabinet space is restricted.
- PLC-based systems — operator interface for alarm handling, status monitoring, parameter entry, and machine commands.
- Legacy Panel 800 installations — replacement of an existing where the original panel application and cabinet arrangement remain in service.
Technical Pitfalls to Avoid
- Do not overlook the R1/R2 distinction.
ABB’s current Panel 800 documentation lists 3BSE069270R2, while the earlier technical manual specifically identifies 3BSE069270R1 as using a rechargeable battery. Confirm the exact article number before substitution. - The HMI hardware does not automatically contain the correct project application.
requires the appropriate Panel Builder environment for configuration. A replacement panel should be checked for the correct application project, firmware compatibility, communication settings, and user-interface configuration rather than assumed to be plug-and-play. - Check the physical installation before ordering.
The uses a 128 × 87 mm panel cutout and approximately 43 mm mounting depth, with the full unit measuring 145 × 103 × 49 mm. A visually similar HMI with a different cutout can create unnecessary cabinet modification work.
Related Products
- 3BSE069270R2 — later article revision; same 4.3-inch Panel 800 concept, but revision-specific hardware details should be verified before replacing an R1 unit.
- PP874 3BSE069271R1/R2 — 7-inch Panel 800 operator panel for applications requiring a larger display area.
- PP877 3BSE069272R1/R2 — 10.4-inch Panel 800 panel for applications where additional screen area is needed.
- PP874K 3BSE069273R1 — 7-inch Panel 800 panel with a key-based operator interface rather than the ‘s resistive touchscreen.
- PP877K 3BSE069274R1 — 10.4-inch Panel 800 variant intended for a larger operator station with physical-key operation.
- Panel Builder 800 Version 6 — 3BSE069300R1 — engineering/configuration software associated with the Panel 800 Version 6 family; relevant when recovering or modifying a application.
- CB810 3BSE042255R1 — USB-to-Ethernet adapter used with Panel 800 systems for programming-related applications; useful when servicing legacy Panel 800 installations.
