Description
ABB PP836A 3BSE042237R2
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PP836A |
| ABB Article Number | 3BSE042237R2 |
| Manufacturer | ABB |
| Product Family | Panel 800 Version 5 |
| Product Type | Operator panel / HMI |
| Display Size | 6.5 in |
| Display Type | Graphic TFT, 64K colors |
| Resolution | 640 × 480 pixels |
| Interaction Type | Function keys |
| Status LEDs | 16, two-color |
| Normal Current | 0.4 A |
| Maximum Current | 0.9 A |
| Front Panel Dimensions | 285 × 177 × 60 mm |
| Panel Cutout | 246 × 139 mm |
| Mounting Depth | 55 mm |
| Weight | Approx. 1.3 kg |
| Configuration Software | Panel Builder 800 Version 5 |
| Protection / Certification | Verify against the exact hardware revision and installation documentation |
ABB’s official Panel 800 documentation identifies PP836A / 3BSE042237R2 as a 6.5-inch, 640 × 480 color TFT functional-key panel. The same documentation specifies 16 two-color LEDs, 0.4 A normal consumption, 0.9 A maximum consumption, a 246 × 139 mm cutout, and approximately 1.3 kg weight.
Product Introduction

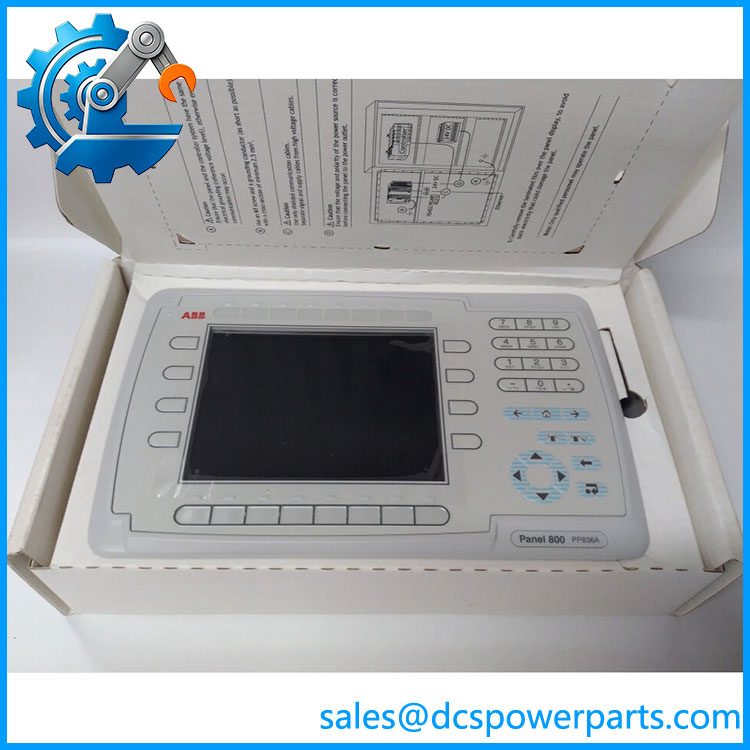

The ABB PP836A 3BSE042237R2 is a Panel 800 Version 5 operator panel designed for industrial HMI applications. It provides a 6.5-inch color TFT display with 640 × 480 resolution and physical function-key interaction, allowing operators to view process graphics, alarms, values, and control functions from a panel-mounted workstation. ABB identifies the unit specifically as a functional-key panel, so it should not be described generically as a touchscreen-only HMI.
Configuration is performed with Panel Builder 800 Version 5. This is important when replacing an installed unit: the hardware itself is only one part of the replacement. The existing HMI project, firmware compatibility, communication configuration, and Panel Builder environment should all be checked before commissioning. ABB’s catalog explicitly states that Panel 800 configuration requires Panel Builder 800.
PP836A 3BSE042237R2
Engineering Pain Point
The main replacement risk with the PP836A is confusing physical compatibility with application compatibility. A replacement may fit the cabinet cutout and power up correctly while still requiring project transfer, firmware verification, or configuration adjustments. For an operating 800xA installation, preserve the existing project files and record the original panel’s firmware and hardware revision before removing the old unit.
Typical Applications
- ABB System 800xA operator stations — local process visualization and operator interaction.
- AC 800M-based automation systems — HMI interface for controller and process applications.
- Plant control cabinets — panel-mounted operator interface where a dedicated local display is required.
- Legacy Panel 800 installations — spare replacement for installed PP836A units.
Technical Pitfalls to Avoid
- Do not call it a touchscreen without qualification. ABB’s official data sheet identifies the interaction type as Function key. Several aftermarket listings describe it as a touchscreen, creating a potential identification problem.
- Verify the article number. The correct ABB pairing is — 3BSE042237R2. Similar-looking Panel 800 models have different article numbers and display dimensions.
- Check the cabinet cutout. requires approximately 246 × 139 mm of panel cutout and 55 mm mounting depth. Do not substitute based only on display size.
- Preserve the HMI project. A hardware replacement does not automatically transfer the installed application. Verify project files and the Panel Builder version before taking the old panel out of service.
- Check hardware and firmware revision. Older Panel 800 hardware revisions can differ internally. One documented example shows specific hardware and firmware identification on the nameplate, demonstrating why the physical label should be recorded before replacement.
- Do not assume and PP846A are interchangeable. PP846A is a 10.4-inch panel with an 800 × 600 display and a substantially larger cutout.
Related Products
- ABB PP820A — smaller monochrome Panel 800 functional-key panel with 240 × 64 resolution; not a dimensional replacement for .
- ABB PP826A — 5.7-inch, 320 × 240 color functional-key panel; smaller display and different cutout.
- ABB PP846A — 10.4-inch, 800 × 600 color functional-key panel; larger physical installation.
- ABB RX836 Key Cover — protective accessory specified by ABB for the front panel.
- ABB Panel Builder 800 Version 5 — configuration environment required for Panel 800 Version 5 panels.
- ABB 3BSE042244R3 / PP826A — related article-number variant for the smaller 5.7-inch Panel 800.
- ABB 3BSE042238R1 / PP846A — related 10.4-inch Panel 800 model documented in the same product catalog.
Procurement Note
For 3BSE042237R2, specify both the model and complete ABB article number. Before approving a replacement, compare the installed unit’s hardware revision, firmware, panel cutout, project version, communication configuration, and Panel Builder environment. The official ABB documentation confirms that this exact article number corresponds to the 6.5-inch functional-key panel.
One correction worth making in product listings: avoid describing this part simply as an “ABB touchscreen.” ABB’s own specification identifies the interaction type as function key, which is a more accurate description for engineering and procurement purposes.
