  • Model: PM865K01 3BSE031151R1
  • Brand: ABB
  • Series: AC 800M Controller / System 800xA
  • Core Function: Executes process control and high-integrity application logic while managing communication with S800 I/O and AC 800M communication modules.
  • Product Type: High Integrity Processor Unit (HI CPU Module)
  • Key Specs:
    • MPC862P processor, 96 MHz clock frequency
    • 32 MB RAM with battery-backed memory support
    • SIL3 certified high-integrity controller capability with compatible safety configuration
Add To Quote
Category: SKU: ABB PM865K01 3BSE031151R1

Description

Product Overview

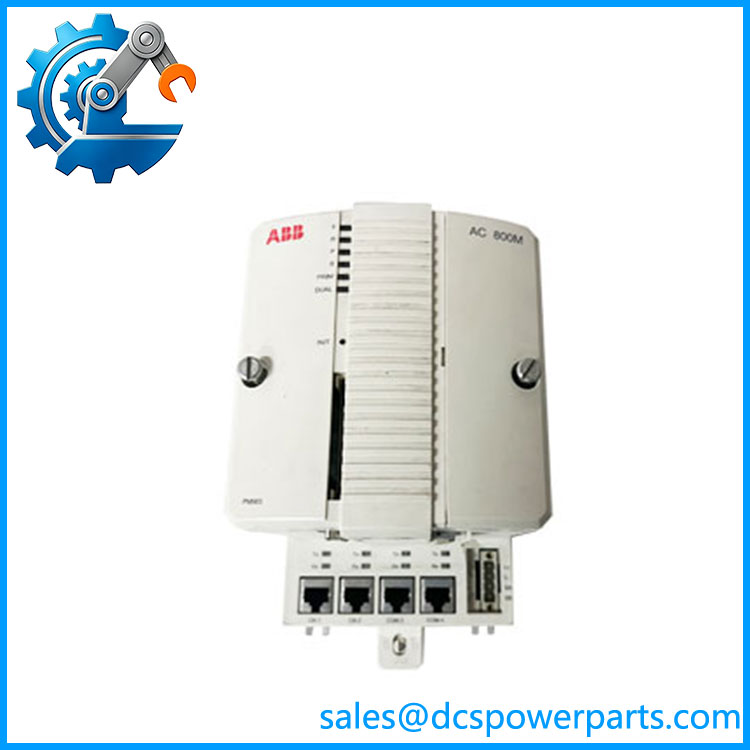

The ABB PM865K01 3BSE031151R1 is a high-integrity processor unit designed for ABB AC 800M controller systems used in System 800xA process automation environments. The module functions as the main execution unit for control applications, handling application logic, communication management, and interaction with connected S800 I/O modules. As part of the AC 800M platform, the ABB PM865K01 3BSE031151R1 provides a controller solution for both standard process control and safety-related applications when configured with the appropriate safety modules and certified software.

Built around a 96 MHz processor with 32 MB RAM, the PM865K01 3BSE031151R1 supports deterministic control execution for industrial processes where predictable response timing is required. The processor unit includes integrated Ethernet communication ports, serial interfaces, ModuleBus support for S800 I/O connections, and CEX-Bus capability for communication expansion modules. The package includes the PM865 CPU, TP830 baseplate, bus terminators, RCU-Link components, ModuleBus termination, and battery backup components, allowing installation as a complete AC 800M processor unit kit.

The ABB PM865K01 3BSE031151R1 remains widely used in lifecycle maintenance projects for existing AC 800M and System 800xA installations. Plants operating mature control systems often require exact hardware matching because controller revisions, firmware versions, safety configurations, and application databases can affect replacement success. To be completely transparent, this module is primarily a spare and replacement solution for existing installations rather than a first choice for new system designs, where newer AC 800M processor options may be selected.



Product Introduction (Non-Templated)

A controller failure in a safety-related process application can require immediate hardware replacement without changing the validated control architecture. The ABB PM865K01 3BSE031151R1 provides a direct replacement path for compatible AC 800M high-integrity controller systems.

Supporting SIL3-capable configurations, dual Ethernet communication, and S800 I/O integration, this processor unit is commonly selected for AC 800M maintenance programs, System 800xA upgrades, and legacy controller restoration projects.



Key Technical Specifications

Parameter Value
Product Model PM865K01
Order Number 3BSE031151R1
Manufacturer ABB
Product Type High Integrity Processor Unit
System Platform AC 800M / System 800xA
CPU Type MPC862P
Clock Frequency 96 MHz
Memory 32 MB RAM
Application Memory Approx. 22.184 MB RAM available
Safety Capability SIL3 certified with approved safety configuration
Redundancy Support CPU redundancy supported
Ethernet Interfaces 2 × RJ45 Ethernet ports
Serial Interfaces COM3 RS-232C, COM4 isolated RS-232
I/O Support S800 I/O via ModuleBus
Expansion Bus CEX-Bus
Power Supply 24 VDC nominal
Mounting TP830 AC 800M Baseplate
Dimensions 119 × 186 × 135 mm
Weight Approx. 1.2 kg
Condition New Surplus, Factory Sealed



Related Products

  • ABB PM865K02 3BSE031150R1 — Redundant processor unit package containing two units and required redundancy accessories. Used when higher controller availability is required.
  • ABB PM867K01 3BSE076355R1 — Newer AC 800M high-performance processor option with higher processing capability. Often considered when replacing aging PM865 installations during larger upgrades.
  • ABB PM866AK01 3BSE076939R1 — AC 800M processor unit with increased memory and processing resources compared with . Used for expanded application requirements.
  • ABB SM811K01 3BSE018173R1 — Safety supervisor module used with AC 800M high-integrity architectures to support safety-related applications.
  • ABB TP830 — AC 800M processor baseplate used for mounting compatible PM8xx controller units.
  • ABB CI854AK01 3BSE030220R1 — PROFIBUS communication interface module used to extend AC 800M connectivity to field devices.
  • ABB CI867K01 3BSE043660R1 — Ethernet-based communication interface module for integration with external automation networks.
  • ABB PM891K01 3BSE053241R1 — Higher-performance AC 800M processor unit designed for larger applications requiring more computing resources.

PM865K01 3BSE031151R1

Frequently Asked Questions (FAQ)

1. Is the ABB 3BSE031151R1 compatible with my existing AC 800M system?

The is designed for AC 800M controller architectures, but compatibility depends on the installed hardware and software environment.

Before replacement, verify:

  • AC 800M controller revision
  • Control Builder version
  • Firmware compatibility
  • Safety configuration
  • Existing I/O and communication modules

A matching part number is required, but system validation is still necessary.

2. Can I hot-swap this?

No. The should normally be replaced following approved AC 800M shutdown procedures.

Recommended steps:

  1. Save the controller application backup
  2. Confirm current firmware and configuration
  3. Power down according to site procedures
  4. Replace the processor unit
  5. Reload and verify controller operation

For redundant configurations, the replacement procedure may differ depending on the installed architecture.

3. Does the support firmware v3.1?

Firmware support depends on the AC 800M software environment and controller revision.

Verification should include:

  • Control Builder compatibility
  • Existing firmware release
  • Safety software requirements
  • Application migration requirements

The CPU hardware and software version must be matched before commissioning.

4. Will I lose my control logic when replacing the ?

The control application is not normally stored permanently only within the processor hardware.

Before replacement:

  • Backup the AC 800M application
  • Save controller configuration
  • Record communication settings
  • Verify safety parameters

After installation, the application can be restored and validated on the replacement controller.

5. How can I verify a New Surplus ABB is authentic?

Recommended inspection steps:

  • Confirm ABB identification label
  • Verify 3BSE031151R1 part marking
  • Check CPU and baseplate condition
  • Inspect connectors and terminals
  • Review available functional test records

New Surplus status indicates unused inventory condition, but controller testing remains important before installation in a critical process.

6. Can the support a System 800xA upgrade project?

Yes, when the project maintains a compatible AC 800M architecture.

Typical applications include:

  • Replacing failed processor units
  • Extending existing System 800xA installations
  • Maintaining validated control strategies
  • Supporting staged hardware modernization

For new installations, engineers should evaluate current AC 800M processor options based on application requirements.

7. What should engineers check before commissioning the ?

Key checks include:

  1. Confirm TP830 baseplate compatibility
  2. Verify firmware revision
  3. Restore controller application
  4. Check Ethernet communication
  5. Validate S800 I/O communication
  6. Confirm safety diagnostics

These checks reduce commissioning problems after controller replacement.
