ABB PM511V16 3BSE011181R1 | AC450 Processor Module | Advant OCS Controller
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| ABB Type Designation | PM511V16 |
| Product ID | 3BSE011181R1 |
| Product Type | Central Unit |
| Controller Family | Advant Controller 450 |
| System | Advant OCS |
| CPU | Motorola 68040 |
| CPU Frequency | 25 MHz |
| CPU Architecture | 32-bit virtual-memory processor |
| RAM | 16 MB dynamic RAM |
| RAM Protection | ECC / CRC-protected memory architecture |
| Cache | 4 KB instruction + 4 KB data cache |
| System Bus | Futurebus+ |
| I/O Interface | S100 I/O bus |
| Redundant CPU | Supported |
| Program Storage | PCMCIA flash-memory interface |
| Mounting | RF533-series controller subrack |
| Front Diagnostics | Status LEDs, character display, mode selector, ENTER pushbutton |
ABB’s AC450 hardware documentation specifies the PM511V platform as a 25 MHz 68040 processor module, available with 8 or 16 MB dynamic RAM. The PM511V16 designation identifies the 16 MB version.
Product Introduction
The ABB PM511V16 3BSE011181R1 is the central processor module for the Advant Controller 450, one of ABB’s legacy Advant OCS controller platforms. It uses a Motorola 68040 processor and 16 MB of dynamic RAM, with the memory architecture incorporating error checking for controller runtime operation.
The module is designed for the RF533 controller subrack and interfaces with the AC450 architecture through Futurebus+ and the S100 I/O extension. It also contains hardware required for redundant processor configurations, allowing a standby PM511V to maintain an updated copy of the primary processor’s memory.

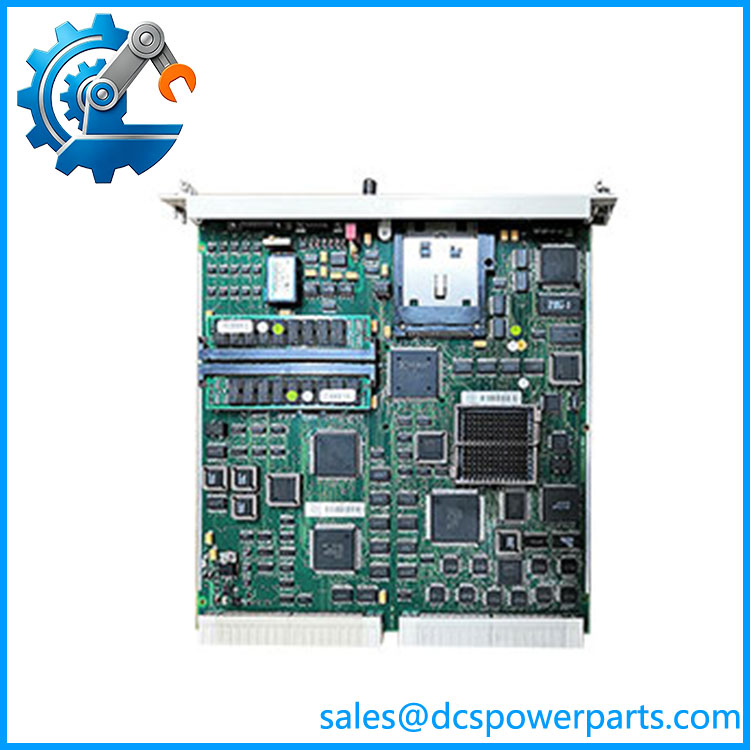

PM511V16 3BSE011181R1
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
PM511V16 is not a generic CPU card. It is tightly associated with the Advant Controller 450 hardware architecture, including its RF533 subrack, S100 I/O system, program-card interface, and redundancy mechanism.
Typical Applications
- ABB Advant Controller 450 DCS installations
- Advant OCS process-control systems
- AC450 redundant controller configurations
- Legacy S100 I/O control systems requiring processor replacement
Technical Pitfalls to Avoid
- Do not confuse PM511V16 with a modern AC 800M processor.
belongs to the older Advant Controller 450 / AC450 platform. ABB’s own product classification places it under AC450 processor modules. - Verify PM511V08 versus .
Both use the PM511V processor architecture, but PM511V08 has 8 MB RAM while has 16 MB. The memory size is part of the controller’s system configuration, so the installed application should be checked before substitution. - Check the RF533 subrack.
The PM511V was specifically designed for RF533-series controller subracks. A physically similar processor board from another ABB controller generation is not automatically compatible. - Preserve the redundant-controller arrangement.
In a redundant configuration, the PM511V hardware copies primary-processor memory writes to the standby processor. The replacement procedure therefore needs to account for both controller states rather than treating the module as an isolated CPU. - Check the program card and application software.
The PM511V includes a PCMCIA interface for flash-memory cards containing system software. Before replacing a processor, document the existing program card and controller software configuration.
Related Products
- ABB PM511V08 — 3BSE011180R1 — 8 MB version of the processor family; same basic processor architecture but lower memory capacity.
- ABB — 3BSE011181R1 — 16 MB processor module covered here.
- ABB RF533 — Controller subrack designed to accommodate processor modules.
- ABB SC510 — 3BSE003832R1 — Submodule carrier without CPU used within the Advant Controller architecture.
- ABB SC520 — 3BSE003816R1 — Submodule carrier including local CPU.
- ABB SR511 — 3BSE000863R1 — 24/5 VDC power regulator associated with hardware.
- ABB CS513AK01 — 3BSE091971R1 — MB300/300E communication interface associated with the Advant Controller 450 ecosystem.
- — Advant Controller 450 central controller platform in which operates.
Procurement Check
For an ABB 3BSE011181R1, verify:
- Exact designation:
- Product ID: 3BSE011181R1
- Advant Controller 450 compatibility
- controller subrack
- 16 MB memory version
- hardware revision
- Program card / PCMCIA configuration
- S100 I/O architecture
- Redundant or single-controller configuration
- Existing controller software and application
- Firmware/system software revision
- Front-panel diagnostics and display condition
- Connector and backplane condition
- Battery/backup-related condition where applicable
Recommended procurement description:
ABB 3BSE011181R1 Processor Module, Advant Controller 450, 25 MHz Motorola 68040, 16 MB ECC-Protected Dynamic RAM, Futurebus+ / S100 I/O Interface, Redundant Processor Support.
ABB currently identifies 3BSE011181R1 specifically as the Processor Module and lists the Advant Controller 450 platform in the Classic lifecycle phase. For a plant replacement, the complete configuration and software revision matter just as much as the processor part number.
