ABB PFSK165 3BSE027778R1 | VP74201-933CW07 Signal Processing and Communication Unit

Description

Key Technical Specifications

Important identification note: Do not confuse PFSK165 with a generic digital I/O card. The available product identification consistently associates 3BSE027778R1 / VP74201-933CW07 with a signal-processing and communication unit.

I would not publish a channel count, input voltage, output voltage, SIL rating, processor speed, or communication protocol for this exact assembly without the applicable ABB hardware manual. Several secondary product records assign contradictory specifications to this part number. Those numbers should not be treated as verified engineering data.

Product Introduction

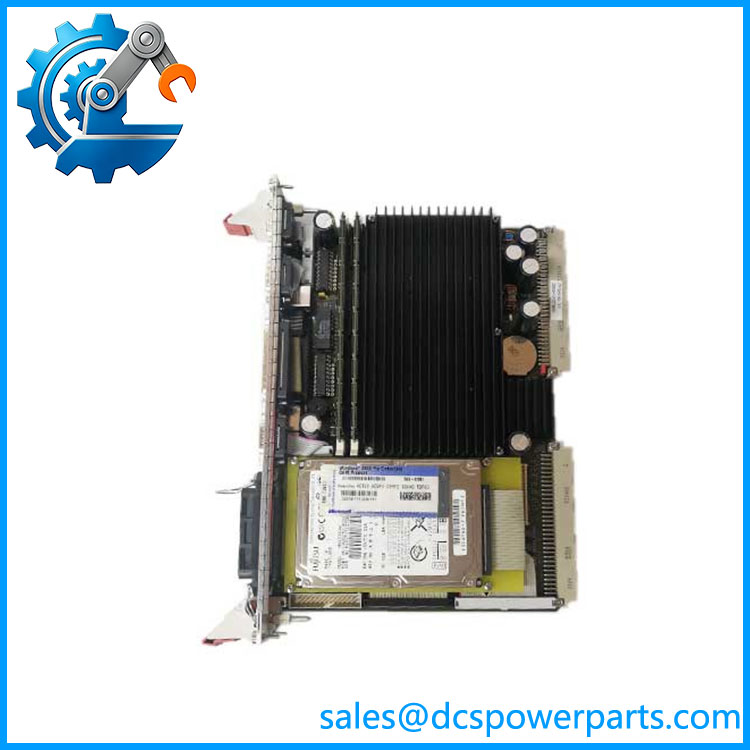

ABB PFSK165 3BSE027778R1

The ABB PFSK165 3BSE027778R1, identified by manufacturer code VP74201-933CW07, is a signal-processing and communication unit used in ABB industrial control equipment. It belongs to the PFSK hardware family and is intended to process application-specific signals while providing the associated system communication functions.

For a legacy automation installation, this type of board can be difficult to replace with a generic module. The hardware is part of a larger system architecture, so the exact part number, firmware, associated boards, wiring, and application configuration all matter.

PFSK165

Application Scenarios & Field Pitfalls

Engineering Pain Point

A failed signal-processing board can create a confusing mix of symptoms: bad process values, lost communication, unstable control functions, or multiple diagnostic alarms appearing at once. Before replacing several field devices, isolate whether the common failure is actually inside the PFSK165 processing/communication layer.

Typical Applications

• Process Manufacturing — Signal processing and communication within legacy ABB automation systems.
• Pulp & Paper — Process measurement and control architectures where specialized signal-processing hardware is installed.
• Metals and Rolling Equipment — Specialized process measurement/control applications using ABB signal-processing hardware.
• Industrial Production Lines — Legacy automation cabinets requiring dedicated processing and communication boards.

Technical Pitfalls to Avoid

1. Match all three identifiers.
   The safest procurement description is PFSK165 / 3BSE027778R1 / VP74201-933CW07. Do not order by “” alone.
2. Do not substitute a generic I/O module.
   The documented identification is a Signal Processing and Communication Unit. Its system role is different from a conventional AI, AO, DI, or DO module.
3. Record the existing firmware and configuration.
   A replacement board may be electrically correct but still require matching firmware or application configuration.
4. Check adjacent PFSK hardware.
   The PFSK family contains several specialized boards, including signal-conditioning, processing, tension-control, and communication-related hardware. The neighboring board numbers can help establish the actual system architecture.
5. Inspect connectors before condemning the board.
   Oxidized contacts, partially seated connectors, damaged ribbon cables, and cabinet vibration can produce intermittent communication or signal-processing faults.
6. Do not trust generic online specifications.
   Some records incorrectly describe as a 16-channel digital I/O module, while others call it a safety module or Ethernet switch. Those descriptions conflict with the more consistent identification of 3BSE027778R1 as a signal-processing and communication unit.
7. Check the system-level fault pattern.
   If several process signals fail simultaneously, investigate the common processing/communication hardware before replacing individual transmitters or sensors.
8. ESD precautions matter.
   Treat the board as static-sensitive electronic equipment. Use a grounded wrist strap and appropriate antistatic packaging during removal and storage.
9. Preserve the original board until commissioning is complete.
   Do not immediately scrap the failed unit. Its configuration, jumpers, labels, revision information, and connector markings can be valuable during troubleshooting.
10. Verify the complete system documentation before installation.
    ABB’s current product page confirms the 3BSE027778R1 product identity, but detailed application-level specifications should be taken from the applicable system documentation.

Related Products

• ABB PFSK130 3BSE002616R1 — Core signal-conditioning unit in the same broader PFSK hardware family. It handles a different signal-conditioning function and should not be treated as a direct replacement for .
• ABB PFSK164 3BSE021180R1 — Tension sensor module and processing board. It is particularly relevant where the associated automation system uses specialized tension measurement hardware.
• ABB PFSK162 3BSE015088R1 — Signal-conditioning and processing board from the same PFSK family. It is complementary rather than automatically interchangeable with .
• ABB PFSK160A 3BSE009514R1 — Regulated high-capacity 24 VDC power-supply hardware associated with the same broader equipment ecosystem. It addresses power distribution rather than signal processing.
• ABB PFSK152 3BSE018877R1 — Signal concentrator board. Its role is signal concentration, while is identified as a signal-processing and communication unit.
• ABB PFSK151 3BSE018876R1 — High-performance signal-processing unit within the PFSK family. It is relevant when tracing the processing architecture but is not automatically a substitute for .
• ABB PFSK142 3BSE006505R1 — Control board in the same broader PFSK product family. Its control-board role distinguishes it from the processing/communication function.
• ABB PFSA103D 3BSE002492R0001 — Related ABB process/tension-control hardware that may appear in systems using specialized signal-processing equipment. Compatibility must be established from the system configuration rather than the family name alone.
• ABB PFSA140 3BSE006503R1 — Related tension-control module. It is relevant to ABB tension-control architectures but should not be substituted for without confirming the specific application.
