ABB PFCL201C 20KN 3BSE023409R20 | Pressductor Load Cell | Strip Tension Measurement
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PFCL201C 20KN |
| Article Number | 3BSE023409R20 |
| Product Type | Pressductor PillowBlock load cell |
| Rated Capacity | 20 kN |
| Sensing Technology | Pressductor magnetoelastic technology |
| Primary Application | Strip tension measurement |
| Measurement Direction | Force measurement through the load-cell mounting arrangement |
| Extended Load | 30 kN |
| Permitted Transverse Load* | 10 kN |
| Overload Capacity* | 200 kN |
| Deflection* | Approximately 0.02 mm |
| Typical System Electronics | ABB tension electronics such as PFEA-series units |
| Installation | PillowBlock / measuring-roll bearing arrangement |
*Published technical data for the PFCL 201C/CD/CE family; exact mechanical configuration and suffix should be checked against the installed load-cell drawing before replacement.
The 20 kN rating is particularly important when selecting a replacement. ABB documentation shows PFCL 201C as a 20 kN and 50 kN load-cell family, while separate technical data lists the 20 kN version with a 30 kN extended load rating.
Product Introduction

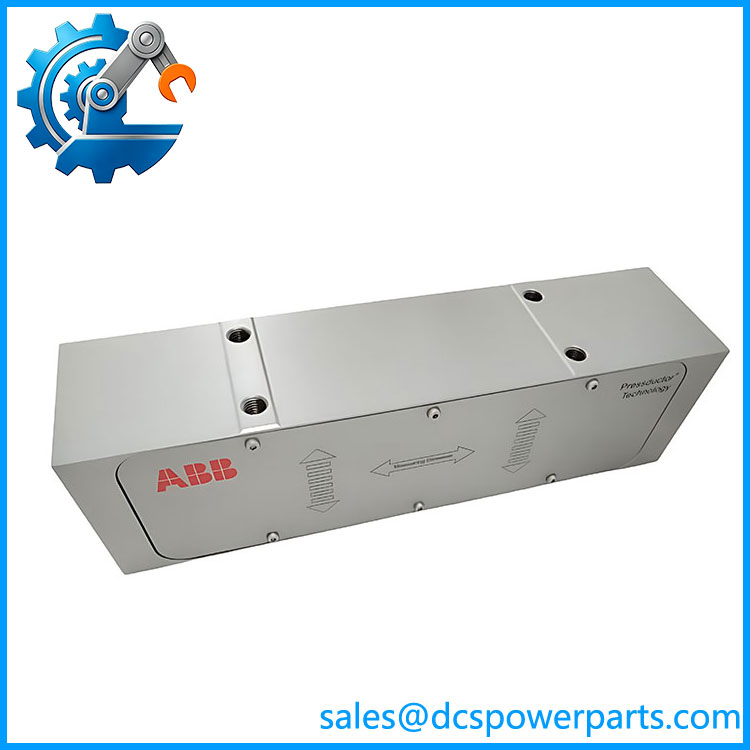

The ABB 20KN 3BSE023409R20 is a Pressductor PillowBlock load cell designed for accurate force measurement in industrial strip-tension systems. Unlike conventional strain-gauge load cells, the Pressductor principle uses changes in magnetic properties caused by mechanical stress; the sensor’s primary and secondary windings generate an electrical signal proportional to the applied force.
The ABB 20KN 3BSE023409R20 is used where the load cell forms part of a mechanical measuring-roll arrangement, with the resulting signal processed by dedicated ABB tension electronics. ABB has documented PFCL 201C installations in rolling, annealing, pickling, tension-leveling, and skin-pass processing lines, including furnace sections where stable strip-tension measurement is important.
PFCL201C-10KN
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
In a strip-processing line, a tension sensor failure is not simply an instrumentation problem. Incorrect force measurement can affect strip tracking, roll loading, tension control, product quality, and ultimately the ability to maintain the process within its operating window. The is part of the mechanical measurement chain, so the installation geometry is just as important as the electrical specification.
Typical Applications
- Steel rolling mills — strip-tension measurement around rolling and finishing sections.
- Continuous annealing and pickling lines — ABB documentation specifically shows PFCL 201C used in demanding processing-line environments.
- Tension-leveling and skin-pass mills — monitoring force around measuring rolls and tension-control sections.
- High-temperature furnace sections — where mechanical arrangement and stable tension measurement are critical. ABB documents PFCL/PFTL PillowBlock load cells in furnace-section applications.
Technical Pitfalls to Avoid
- Do not confuse with PFTL201C. The two families are both Pressductor PillowBlock load cells, but their mechanical measuring arrangements differ. ABB documentation lists both families in 20 kN and 50 kN configurations. Verify the installed mechanical arrangement before substitution.
- Check the load direction, not just the capacity. A 20 kN rating by itself does not establish whether a particular installation is suitable. Measuring-roll geometry, bearing arrangement, force direction, roll weight, strip tension, and transverse forces all contribute to the actual load seen by the sensor.
- Do not treat it as a complete tension transmitter. The is the sensing element. The associated tension electronics provide the required excitation, signal processing, display, and control-system interface. ABB’s PFEA family is specifically designed for tension-electronics applications and supports configurations using multiple load cells.
- Mechanical alignment matters. The load-cell mounting surfaces and measuring-roll arrangement need to be checked carefully. ABB installation material emphasizes correct mounting geometry and warns that forces introduced through cabling or incorrect installation can influence the measured force.
- Do not substitute a generic strain-gauge cell solely because it has a 20 kN rating. The Pressductor sensing principle, mechanical dimensions, excitation requirements, and associated ABB electronics form an integrated measurement system. A generic 20 kN load cell is not automatically electrically or mechanically interchangeable.
Related Products
- ABB PFTL201C 20KN — Pressductor PillowBlock load-cell family used for strip-tension measurement; confirm the mechanical measuring arrangement before considering substitution.
- — same PFCL 201C family with higher rated capacity; not a direct 20 kN replacement where measurement range and system calibration depend on the 20 kN version.
- ABB PFCL201D 100KN — higher-capacity PillowBlock load-cell variant used in demanding strip-processing applications; its capacity and mechanical configuration differ from 20 kN.
- ABB PFCL201CE 10KN — related PFCL load-cell variant; the lower 10 kN capacity makes it unsuitable as a direct replacement for a 20 kN installation without engineering review.
- ABB PFEA111 — tension electronics for systems using load cells; provides the electronics layer rather than replacing the mechanical sensor.
- ABB PFEA112 — related tension-electronics unit for load-cell-based tension measurement.
- ABB PFEA122 — higher-function tension electronics variant within the PFEA family.
- ABB PFEA113 — tension electronics supporting configurations with up to four load cells.
Procurement note: For a replacement order, specify the complete 20KN / 3BSE023409R20 designation and compare the installed sensor’s mechanical drawing, mounting arrangement, rated capacity, cable configuration, and associated PFEA/tension-electronics setup. For this type of component, a matching part number is necessary, but mechanical compatibility is equally important.
