Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PDD200A101 |
| ABB Article Number | 3BHE019633R0101 |
| Manufacturer | ABB |
| Product Type | Power/drive-related electronic module or board |
| Functional Family | ABB power electronics / drive equipment |
| Exact System Application | Must be verified from installed equipment documentation |
| Input Voltage | Not reliably verified |
| Output Voltage | Not reliably verified |
| Output Current | Not reliably verified |
| Communication Interface | Not reliably verified |
| Mounting Method | Application-specific |
| Operating Temperature | Not reliably verified |
| Protection Rating | Not reliably verified |
| Dimensions | Not reliably verified |
| Weight | Secondary sources report approximately 0.28 kg, but this should be treated as unverified. |
A significant caution is necessary with the published specifications. One reseller describes the part as a power distribution and drive module and assigns it to ABB UNITROL 6000/ACS6000 equipment, while another describes it as a processor module for AC 800M. Other listings call it a power module or industrial drive board. These descriptions are mutually inconsistent.
For that reason, values such as 380–500 VAC input, 560 VDC output, 200 A continuous current, or 112 kW output power should not be published as specifications for PDD200A101 unless they can be confirmed against the actual ABB equipment documentation. Those numbers appear in secondary listings but are not sufficiently corroborated for this exact article.
PDD200A101
Product Introduction

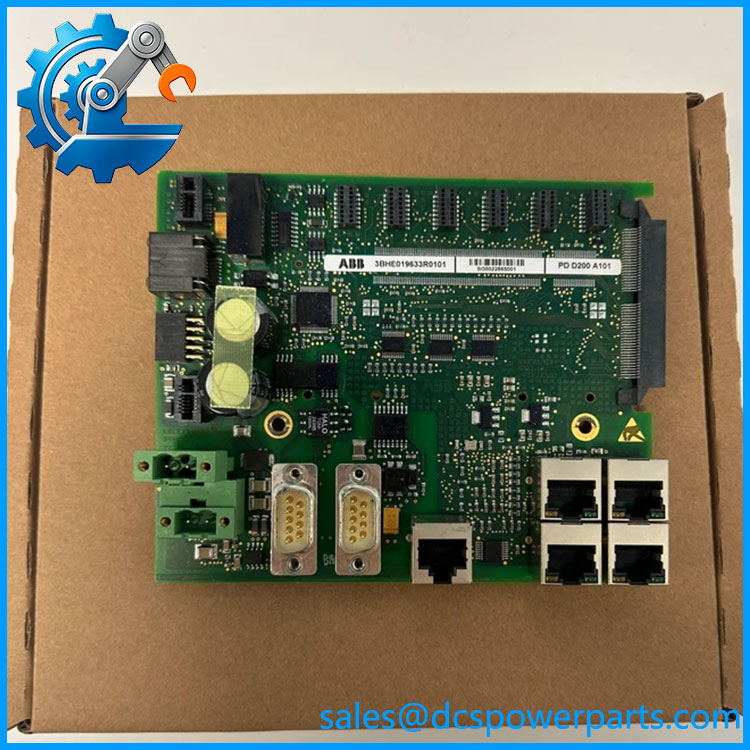

The ABB PDD200A101 3BHE019633R0101 is an ABB power-electronics component identified by the PDD200A101 designation and article number 3BHE019633R0101. Current component records consistently associate these two identifiers, but publicly available descriptions do not provide a sufficiently reliable, single-source definition of its exact electrical function.
From an engineering and procurement standpoint, this makes the full ABB article number and installed equipment identification especially important. The part should not be treated as an interchangeable AC 800M processor, generic analog module, or generic power supply simply because one reseller has assigned such a category. Several secondary databases use inconsistent classifications for the same article.
Engineering Pain Point
The main field problem with PDD200A101 is incorrect functional identification. A replacement request that says only “ABB PDD200A101 module” does not establish whether the installed item belongs to a particular drive, converter, excitation cabinet, or another ABB power-electronics assembly. The exact article number 3BHE019633R0101 should therefore be matched against the equipment type, cabinet drawing, board designation, connector arrangement, and revision marking before a replacement is approved.
Typical Applications
- ABB power-electronics equipment where / 3BHE019633R0101 is specified in the original bill of material.
- Industrial drive or converter maintenance where the original ABB board identification must be preserved.
- Power-electronics cabinet repair and board-level replacement.
- Legacy ABB equipment requiring an exact spare rather than a functionally similar generic module.
Technical Pitfalls to Avoid
- Do not classify it as an AC 800M CPU without verification. One secondary source does so, but other sources identify the same article as a power/drive component.
- Do not inherit specifications from another PDD-series product. , PDD205A1121, PDD500A101, and other PDD-designated components have different ABB article numbers and should not be assumed interchangeable.
- Do not rely on marketplace category labels. Current records variously describe the part as a processor, power module, analog module, industrial drive board, and power distribution/drive module.
- Match the complete article number. Confirm 3BHE019633R0101, the PCB marking, revision, and any additional ABB identification printed on the assembly.
- Check the host equipment before energizing a replacement. Verify the cabinet type, control architecture, connector wiring, supply arrangement, and associated boards from the original equipment documentation.
- Do not use unverified voltage/current figures for commissioning. Public secondary sources give conflicting technical descriptions, so actual ratings should come from the applicable ABB drawing or equipment manual.
Related Products
- ABB PDD205A1121 3BHE025335R1121 — Another PDD-series ABB component; the different article number means it should not be considered a direct substitute without documentation verification.
- ABB PDD500A101 3BHE037649R0101 — Separate PDD-series component with a different article number and application; verify system architecture before comparison.
- ABB PPD517A3011 3BHE041576R3011 — A separate ABB power-electronics/control component appearing alongside in secondary ABB component records.
- ABB PPD234A102 3BHE024820R0102 — Different ABB PEC-related component; functional similarity should not be assumed.
- ABB PFEA113-65 3BSE028144R65 — ABB control electronics from a different product family; not a direct substitute for .
Procurement Note
For / 3BHE019633R0101, purchase and replacement decisions should be based on the complete ABB article number plus the host equipment identification. Request photographs of the original nameplate/PCB marking, including revision information, before treating an alternative PDD-series component as equivalent.
The available public evidence is sufficient to identify the part number, but not sufficient to publish a trustworthy definitive voltage, current, communications, environmental, or dimensional specification for this exact assembly. For an engineering website, that distinction is important: an unverified rating can create a much larger field problem than leaving the value marked for OEM-document verification.
