Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB / SattControl |
| Model | OCAH |
| Part Number | 940181103 |
| Product Type | Analog Output Module |
| I/O Function | Analog signal output |
| Number of Outputs | 4 channels |
| Signal Type | Configurable analog output (application dependent) |
| System Platform | SattControl PLC / SattLine I/O system |
| Installation | SattControl rack system |
| Communication | Internal PLC backplane communication |
| Field Interface | Terminal connection through I/O rack |
| Application | Process control, actuator positioning, analog regulation |
| Typical Loads | Control valves, drives, positioners, converters |
| Status | Legacy / discontinued spare part |
Product Introduction
ABB SattControl OCAH 940181103 Overview

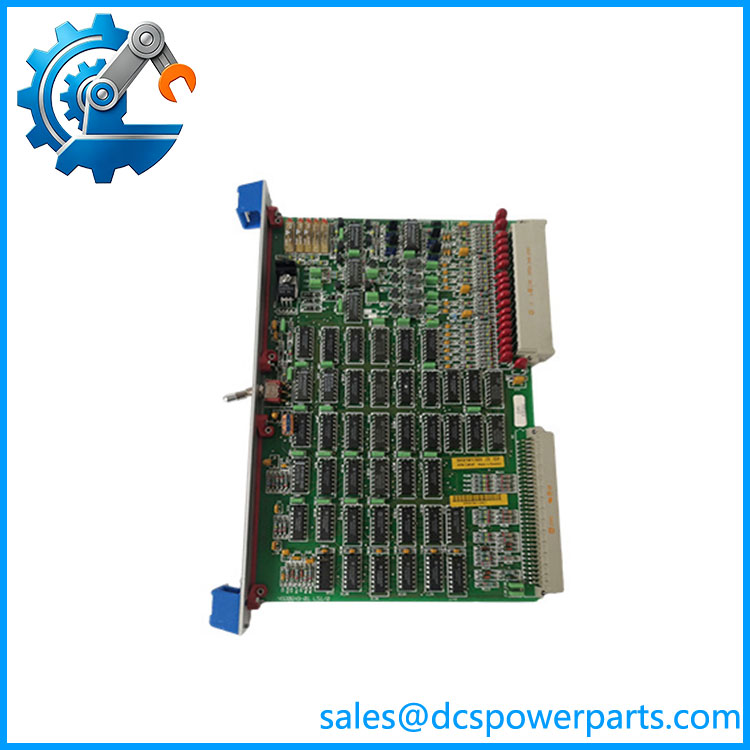

The ABB SattControl OCAH 940181103 is a 4-channel analog output module designed for SattControl PLC and SattLine automation systems. It converts internal control values from the PLC application into analog signals used by field devices such as control valves, actuators, and analog drive interfaces.
The ABB OCAH 940181103 remains relevant in legacy process installations where replacing an entire control platform is not practical. It supports existing SattControl architectures, but replacement work requires verification of rack configuration, channel assignment, and the original application database before startup.
OCAH 940181103
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A process valve stops responding correctly after years of stable operation. The field actuator checks out, the control logic is running, but the output signal from the PLC does not match the commanded value.
Analog output modules are often overlooked during troubleshooting. Engineers may replace transmitters or actuators first, while the actual issue is a degraded output channel, incorrect scaling, or damaged field wiring.
The OCAH 940181103 is part of the final control path. A small signal error can directly affect process stability.
Typical Applications
- Chemical Processing Plants – Continuous valve positioning, flow regulation, and chemical dosing control.
- Water Treatment Facilities – Pump speed references, valve control signals, and process adjustment loops.
- Power Generation Systems – Auxiliary process control, damper positioning, and equipment regulation.
- Manufacturing Equipment – Analog command signals for drives, actuators, and machine process controls.
Technical Pitfalls to Avoid
- Verify Output Signal Type
Confirm the configured output range and field device requirements before replacement. An incorrect signal range can cause actuator movement errors.
- Check Channel Addressing
Legacy SattControl systems rely heavily on correct rack position and I/O addressing. Confirm module location before commissioning.
- Inspect Field Wiring and Shielding
Analog signals are sensitive to grounding problems and electrical noise. Poor shielding can appear as an output module failure.
Related Products
- ABB SattControl OCVA
Analog output module family with similar process output functions. Used where different channel configurations are required. - ABB SattControl OCAHG
Analog output board variant used in Satt rack I/O systems. Suitable for applications requiring four analog output channels. - ABB SattControl IBA 940143201
Analog input module used for acquiring process measurements such as temperature, pressure, and flow signals. - ABB SattControl IDPG 940128102
Digital input module used for discrete field status monitoring. Commonly paired with analog I/O modules in mixed automation systems. - ABB SattControl DSAO120A 3BSE018293R1
ABB Advant analog output module from a later automation generation. Used when migrating from older SattControl systems. - ABB SattControl DSDO115A 3BSE018298R1
Digital output module for ABB Advant control systems. Used for discrete actuator commands. - ABB SattCon PLC Controllers
Controller platforms designed to operate with SattControl rack-based I/O modules. - ABB SattLine Control Systems
Distributed control platform that supports SattControl I/O families and legacy process installations.
