ABB NDCU-12C NDCU-12CK | ACS800 Converter Control Module for Industrial Drives

ABB NDCU-12C NDCU-12CK | ACS800 Converter Control Module for Industrial Drives

  • Model: NDCU-12C / NDCU-12CK
  • Brand: ABB
  • Series: ABB ACS800 Drive Control Unit Family
  • Core Function: Controls and manages ABB ACS800 converter operation through motor control processing, I/O handling, and drive communication functions.
  • Product Type: Drive Control Unit / Converter Controller Module
  • Key Specs:
    • Contains NAMC application and motor controller board with NIOC I/O board
    • Supports ABB DDCS fiber optic communication interfaces
    • 24VDC control supply, designed for ACS800 converter platforms
Add To Quote
Category: SKU: ABB NDCU-12C NDCU-12CK

Description

Key Technical Specifications

Parameter Value
Manufacturer ABB
Model NDCU-12C / NDCU-12CK
Product Type Drive Control Unit
Drive Platform ABB ACS800 Series
Main Function Converter and motor control processing
Internal Boards NAMC Application & Motor Controller Board + NIOC I/O Board
Control Supply 24VDC
Communication Interface DDCS optical fiber communication
Control Panel Interface RS-485 / ABB control panel connection
Digital Inputs Multiple configurable digital inputs
Analog Inputs/Outputs Available through NIOC I/O board
Relay Outputs Multiple programmable relay outputs
Mounting ACS800 converter control cabinet installation
Typical Application Rotor-side converter and industrial drive control
Programming Tool ABB DriveWindow / compatible ABB commissioning tools
Operating Temperature 0°C to +50°C typical
Storage Temperature -40°C to +70°C typical



Product Introduction



ABB NDCU-12C NDCU-12CK Overview

The ABB NDCU-12C NDCU-12CK is a drive control unit used in ABB ACS800 converter systems. It combines the application and motor control functions with standard I/O processing to manage inverter operation, communication, and drive monitoring. ABB NDCU units are installed as part of the drive section architecture in ACS600/ACS800-based systems.

The ABB NDCU-12C NDCU-12CK is typically found in high-power industrial drive applications where converter control stability and communication integrity are required. Replacement work requires attention to application software, parameter backup, and hardware revision compatibility because the control unit contains drive-specific configuration data.

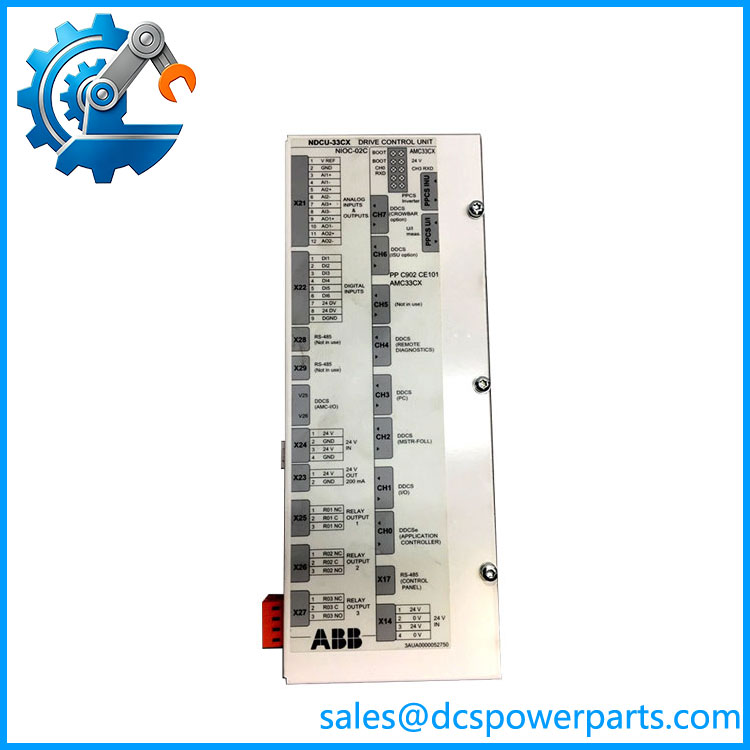

NDCU-33CX

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A large motor drive suddenly stops responding after a control board fault. The power section checks normal, but the converter cannot start because the controller is no longer communicating with the inverter modules.

This is a common failure pattern in long-running ACS800 installations. The NDCU is not just an interface board. It executes control functions, manages I/O, and communicates with converter hardware through ABB-specific links. A replacement requires more than exchanging the physical module.



Typical Applications

  • Steel Industry – Control of rolling mill drives, winding systems, and high-power process motors.
  • Oil & Gas Facilities – Variable speed control for compressors, pumps, and auxiliary rotating equipment.
  • Power Plants – Large fan, pump, and cooling system drive applications.
  • Marine Systems – Propulsion drives, winch systems, and auxiliary motor control equipment.



Technical Pitfalls to Avoid

  1. Verify Application Software Before Installation

    A replacement NDCU hardware unit may require the correct ABB application program to operate. Confirm software version and parameters before commissioning.

  2. Check Fiber Optic DDCS Connections

    The NDCU communicates with converter components through ABB optical links. Incorrect fiber routing or damaged connectors can appear as a controller failure.

  3. Confirm NDCU Variant

    NDCU-12C and related variants may differ according to converter application. Verify the complete drive type, firmware, and installed option modules before substitution.



Related Products

  • ABB RDCU-12C 3AUA0000036521
    Drive control unit used in ACS800 converter systems. Similar control concept but based on RDCU architecture with RMIO control hardware. Suitable for different converter configurations.
  • ABB NDCU-21
    Earlier NDCU family controller used in ACA/ACS600 drive systems. Application differs from NDCU variants.
  • ABB NAMC Board
    Application and motor controller board used inside NDCU assemblies. Handles drive control algorithms and converter management functions.
  • ABB NIOC Board
    Standard I/O board integrated into NDCU assemblies for analog, digital, and relay signal handling.
  • ABB Multidrive System
    Drive platform where NDCU control units are commonly installed for multi-inverter industrial applications.
  • ABB RDCO Communication Module
    DDCS communication option module used for optical communication expansion in ABB drive systems.
  • ABB NPBU/APBU Branching Unit
    Optical branching hardware used with parallel-connected converter modules.
  • ABB DriveWindow Engineering Tool
    Commissioning software used for parameter adjustment, diagnostics, and drive maintenance.
